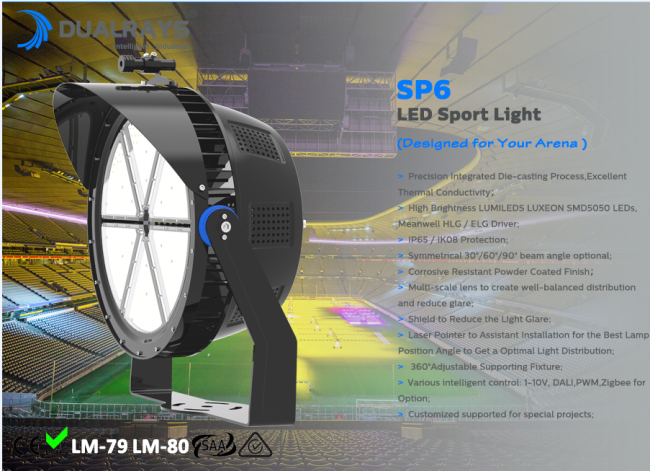

150LPW Heat Dissipation Led Sports Flood Light 400W Die-Cast Aluminium Housing For Tennis Court
Price:
Please inquiry for updated price
MOQ:
1pcs
Delivery Time:
5-15 Bussiness Day
Brand:
DUALRAYS
Product Description
400W LED Flood Light Full Al Heat Sink Structure For Large And Small Parking / Square
> Lens : Symmetrical 30°/60°/90° beam angle optional;
> Aiming Device: Laser Pointer;
> Driver: Meanwell ELG/HLG driver;
> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;
> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;
| Model No. | DR-SPL300-FGXP | DR-SPL400-FGXP | DR-SPL600-FGXP | DR-SPL800-FGXP |
| System Watts/W | 300W | 400W | 600W | 800W |
| System Efficiency/LPW | 150LPW | |||
| Lumen Output/lm | 45.000±5% | 60.000±5% | 90.000±5% | 120.000±5% |
| Rated Input Voltage/V | AC100~277V, 50/60Hz | |||
| LEDs Light Source | SMD5050 | |||
| SDCM | <5 | |||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
| CRI/Ra | >70Ra (>80Ra for Option) | |||
| Power Factor | >0.95 | |||
| THD | <10% | |||
| Beam Angle(Optional) | 30°/60°/90° | |||
| UGR | <25 | |||
| Surge Protection | 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
| LED Driver | Meanwell ELG / HLG Optional | |||
| IP Rating | IP65 | |||
| Dimming(Optional) | 1-10V, DALI,PWM,Zigbee for Option | |||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||
| Start Time | 0.5s | |||
| Protection Class | ClassⅠ | |||
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional | |||
| Material | Aluminum+PC | |||
| Lifespan/hrs | 70.000 Hrs (Ta=30℃@L70) | |||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | |||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||
| Switching Cycles | 100,000 Times | |||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
|
Character/Power
|
300W
|
400W
|
600W
|
800W
|
  |
|
A / mm
|
Ø445
|
Ø445
|
Ø537
|
Ø537
|
|
|
B / mm
|
321
|
321
|
373
|
373
|
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-SPL300-FGXP
|
12.4
|
610*510*250
|
13.8
|
1PCS/CTN
|
|
DR-SPL400-FGXP
|
12.9
|
610*510*250
|
14.7
|
1PCS/CTN
|
|
DR-SPL600-FGXP
|
25.3
|
890*710*275
|
27.6
|
1PCS/CTN |
| DR-SPL800-FGXP | 25.9 | 890*710*275 | 28.8 |
1PCS/CTN
|
