30W S3 LED Street Lamps with smart lighting IP66 160LPW 7 years guarantee
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
5-15 business days
Brand:
Dualrays
Product Description
30W S3 LED Street Lamps with smart lighting IP66 160LPW 7 years guarantee
Aerodynamic and flat LED luminaire with low wind resistance,comprehensive range available in 4 sizes with extensive optical and light distributions from 30W up to 200W to cover all road
applications,adjustable arm (+/- 15 degrees) and clips closing, easy to maintain.
applications,adjustable arm (+/- 15 degrees) and clips closing, easy to maintain.
High efficiency, reliability and quality, allowing quick return on investment. Ready for IoT with any intelligent lighting control solutions. Extremely high efficacy platform that offers different dimming control options. The luminaire is specially designed for ME1-5 type road applications, which ensures excellent visibility for drivers and good comfort for pedestrians.
* High Brightness SAN'AN LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs, Meanwell ELG Driver Optional;
* Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity；
* IP65 / IK08 Protection;
* Professional TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ/TypeⅤ (Medium)optic Optional;
* Surface Spray-paint Finish,Oxidation/Corrosion/Acid Resistant
* Surface Spray-paint Finish,Oxidation/Corrosion/Acid Resistant

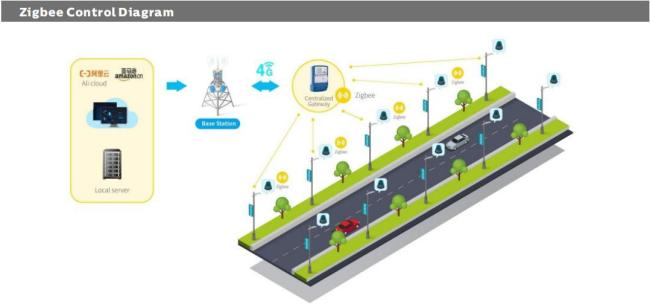

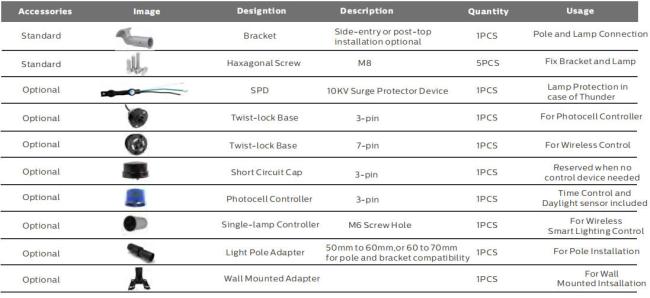

* 3/7-pin twist-lock base for photocell controller or Zigbee wireless controller available;
* ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
* ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
* Various Intelligent Control: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee for Option;
* No UV or IR and completely mercury free;
* L80/B10 @ 60.000h;
* Customized supported for special projects;
* Customized supported for special projects;
Options:
> Driver: Meanwell//SOSEN,DURALYS own-developed driver, durable and compact.
> LEDs: LUMILEDS/SAN'AN LEDs Optional;
> Efficiency: 130LPW/160LPW Optional;
> Controls and Dimming: 1-10V, DALI, Microwave Sensor, Daylight Sensor, Zigbee for Option;
> SPD : 10KV/20KV Surge Protector.
> Optical Lens: TypeⅠ/TypeⅡ(Long & Medium)/TypeⅢ(Medium)/TypeⅣ/TypeⅤ (Medium)optic Optional;

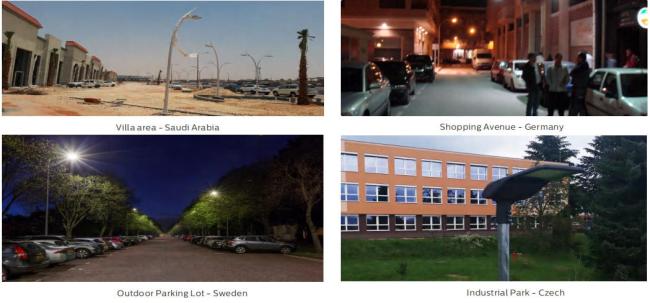

> Cycle lanes and ≤30KM/H areas;
> Urban and residential areas;
> Industrial areas and car parks;
> Avenues;
> Interurban roads and roundabouts;
> Motorways and highways;
| General System |
| Housing Material: High pressure die-cast ADC12 aluminium EN AC-43000, EN AC-43100, EN AC-43400, EN AC- 44100,EN AC-47100 according to the UNE EN 1706 standard powder coated |
| Screen: Flat tempered glass 4mm thickness high transparency, Polycarbonate, UV resistant |
| Diffuser Material: Injected PC according to the UNE-EN ISO 294-2:2019 standard, UV filter conditional(IK08) |
| Housing Color: Metallic Grey (RAL9006), Other colors optional |
| Sealing Gaskets: Silicone foam |
| LEDs Thermal Dissipation: Through finless ADC12 AL luminaire body, without conductive fluids. Passive convection dissipation ensuring thermal contact with the LED modules through a high-conductivity Lead-free solder paste |
| Brackets: ø42 - ø63mm, spigot entry: 100mm |
| Inclination: Adjustable Without tools at 0°, 5°, 10°, 15° (posttop) | 0°, -5°, -10°, -15° (side-entry) |
| Finish: Polyester powder paint coating, electrostatically sprayed and sublimated in the oven, Resistant to corrosion |
| Recommended Mounted Height: 5 - 12 meters |
| Maintenance: Maintenance Easy, tool-less opening. Modular concept for easy component replacement: LEDs, drivers, SPD |
| Driver: Constant current adjustable and programmable driver. Embedded in the luminaire, pre-wired on a galvanised steel plate |
| Dimming Control: ON-OFF | 1-10V dimming | DALI-2 | Zigbee |
| IP (Ingress Protection Rating): IP65 |
| IK (Impact Resistance): IK08 |
| Protective Class: Class Ⅰ |
| Installation: Side-entry | post-top | on mast Toolless at 0°, 5°, 10°, 15° (post top) | 0°, -5°, -10°, -15° (side-entry) |
| Cable Entry: H05RN-F 3*1.0mm2 | H05RN-F 5*1.0mm2 (Max section 4mm2) |
| Surge Voltage Resistance: 6KV 1.2/50µs |
| SPD (optional): 10kV-10kA, type II, with LED signal and thermo fuse to disconnect load at the end of life. |

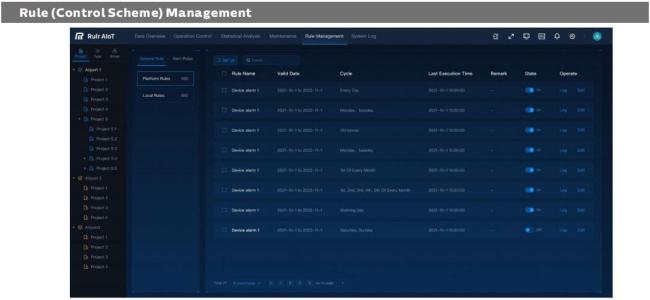

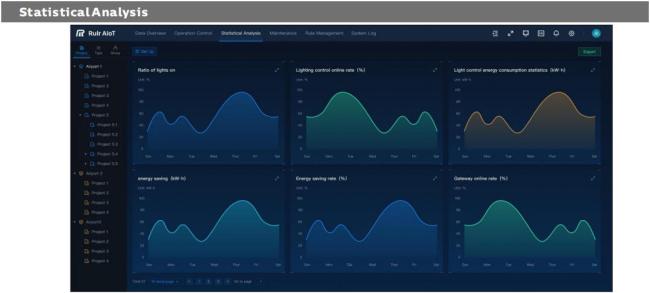

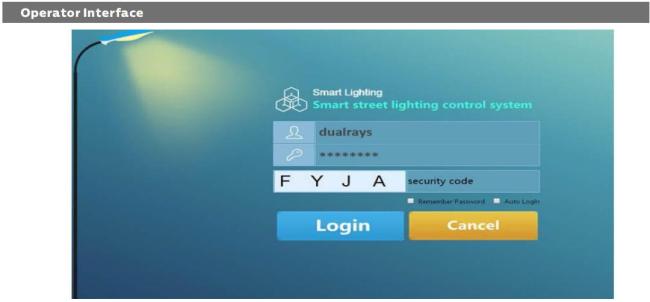

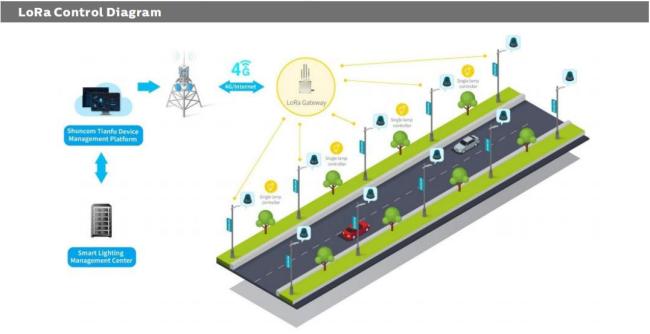

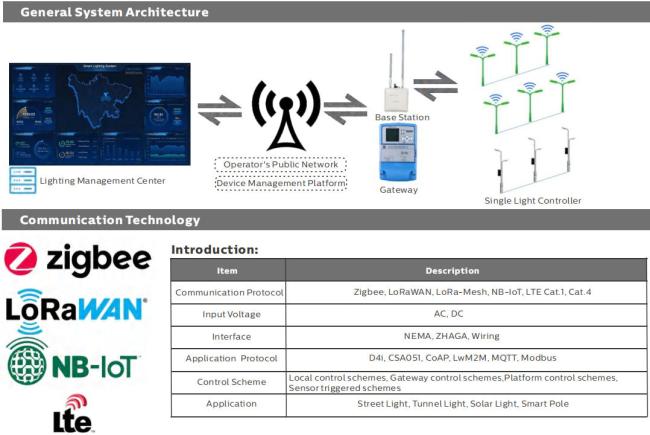

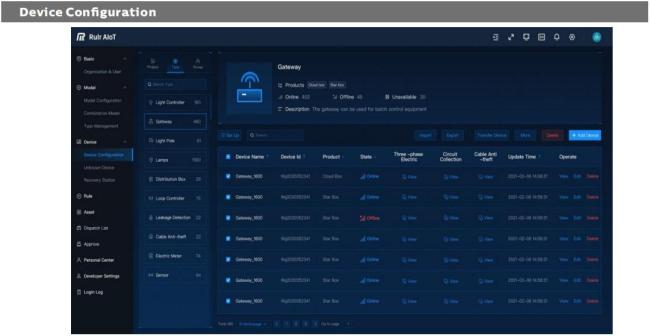

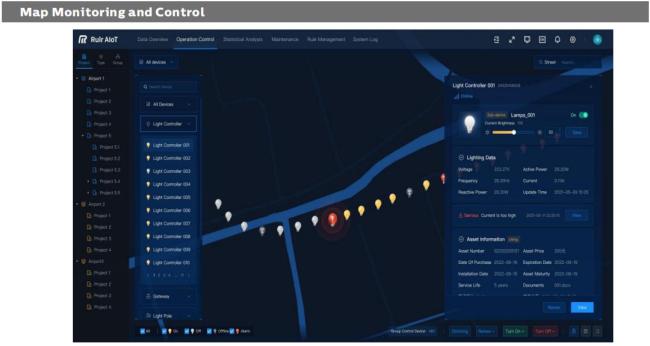

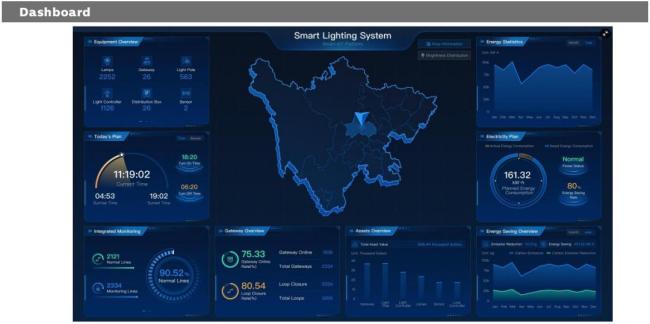

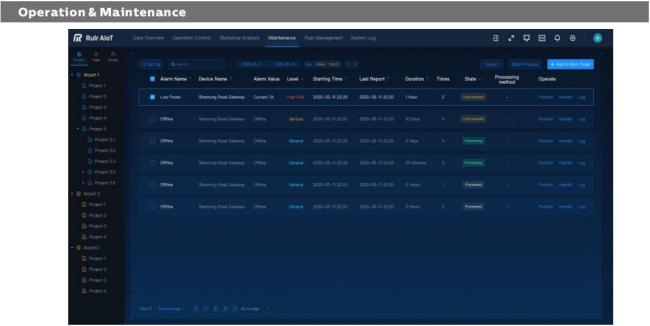

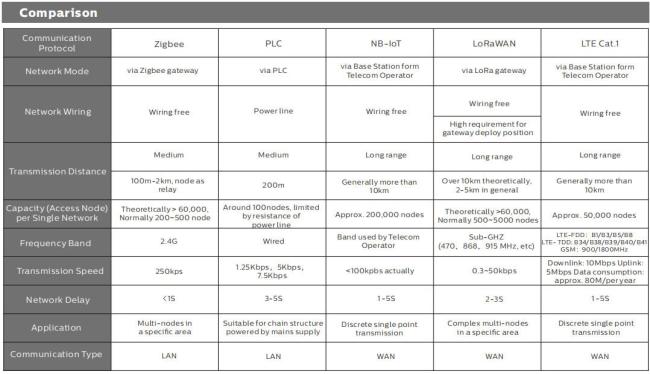

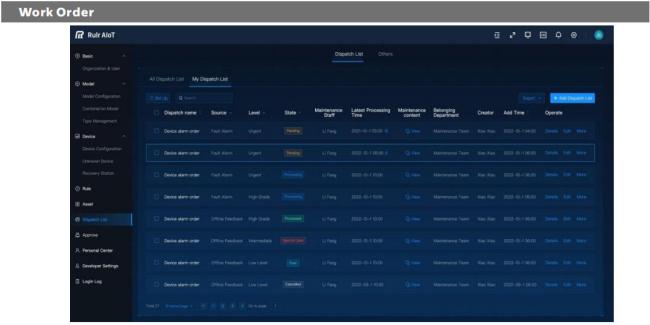

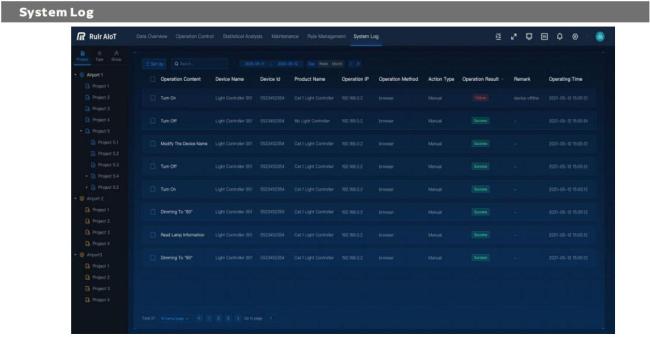

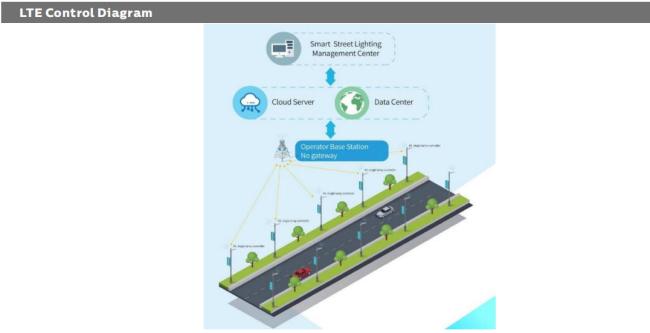

| Smart Function: WL(Wireless single point communication system) | DALI(Digital dimming interface) | NEMA(Socket 3/5/7 pin (ANSI C136.41) | ZHAGA(Socket 4 pin (ZHAGA Book 18) | PHOTOCELL |
| Electrical System |
| Main Voltage: 200~240VAC/ 50~60Hz | 100~277VAC/ 50~60Hz | 277~480VAC/ 50~60Hz |
| Power Factor (PF): ≥0.95 |
| Total Harmonic Distortion (THD): ＜10% |
| Output Type: Non-SELV(non-isolated) |
| Flicker Factor: <1% |
| Driver efficacy: >90% |
| Energy class: A++ IPEA>1.15 |
| Photometry System |
| LEDs: SMD3030 / SMD5050 Optional |
|
CCT (Correlated Color Temperature): Single CCT (3000K | 4000K | 5000K | 5700K |6500K) |
| CRI (Color Rendering Index): >70Ra for standard (>80Ra for higher CRI available) |
| Photobiological Safety: RG0 (exempt of risk) |
| Upward light output ratio: ULOR 0% |
| Downward light output ratio: DLOR 100% |
|
Glare index: Between D5 and D6 (depending on the light distribution) |
| Luminous intensity category: Between G*4 and G*6 (depending on the light distribution) |
| Luminous flux: CIE nº3 |
| SDCM (Standard Deviation of Color Matching): ＜6 |

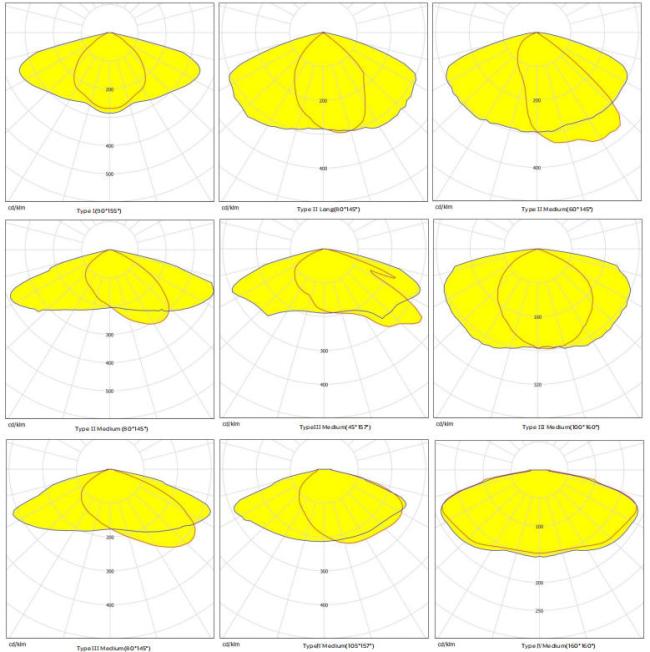

| Beam Angle: T1 | T2L | T2M | T3M | T4M | T5M |
| Average Luminaire Useful Lifetime: 60.000 hours (L80B10) |
| Lumen Maintenance at e.o.l.: >70% |
|
Luminous Efficacy: 130LPW (PROLine) | 160LPW (PRIMELine) Optional |

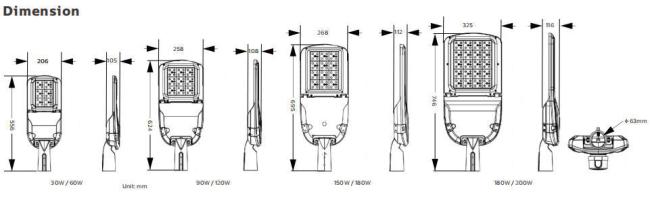

| Rated Power: 30W 60W 90W 120W 150W 180W |
|
Lumens Delivered @ 5000K, CRl>70 (PRO) 3.600lm 7.200lm 10.900lm 14.400lm 18.000lm 21.600lm |
| (PRIME) 4.500lm 9.000lm 13.500lm 18.000lm 22.500lm 27.000lm |
| Operation Condition |
| Operation Temperature / Humidity: -20~ +50℃ (-4°F ~ 122°F) / 5~85% RH, not condensed |
| Storage Temperature / Humidity: -40~ +80℃ (-40°F ~ 176°F) / 5~85% RH, not condensed |
| Average LED Useful Time L80B10: ≥100.000H |
| Rated Nominal Lifetime (Tp <70℃): Up to 100,000H |
| Driver MTBF: 500.000H,MIL-HDBK-217F(25℃) |
| Vibration Resistant: 10~500Hz,5G 12min / 1cycle,period for 72min. Each along X,Y,Z axes |
| Acoustic Noise: ＜25dB (30cm disstance, Normal operation) |
| Guarantee: 5 Years (Extensible up to 7 years) |
| Certifications |
| Global Certificate: ENEC | CE | RoHS | D-mark | KEMA-KEUR Listed, SAA | C-Tick | RCM | CB | ETL/CETL | DLC Premium |
| Security Directives: EN 60598-1 | EN 60598-2-3 | EN 62493 | IEC 62471 |
| EMC Directives: EN 55015 | EN 61547 | EN 61000-3-2 | EN 61000-3-3 | EN 61347-2-13 | EN 61347-1 | EN 62384 |
| Other Directives: IEC 62262 | EN 13032-4 | EN 62717 | EN 6272-1 | EN6272-2-1 | EN 61643-11 |
* Luminous flux tolerance, Power tolerance and color temperature tolerance ±5%, 5000K and CRl>70.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 5000K/70Ra.
* Lighting beam, light intensity distribution and light efficiency were examined in accordance with the EN ISO 17025:2005 norm for EN13032 norm series and the LM-79 norm.
* Up-to-date product info and general warranty terms available on our website www.DUALRAYS.com
* Detailed information on luminous fluxes and powers for individual indexes are indicated on the product data sheet.
* Values may be subject to change due to LED binning.
* The parameters in the data sheet are given for Ta=25°C, based on 5000K/70Ra.
* Power tolerance with ZHAGA version or power supply D4i/SR: ±10%.

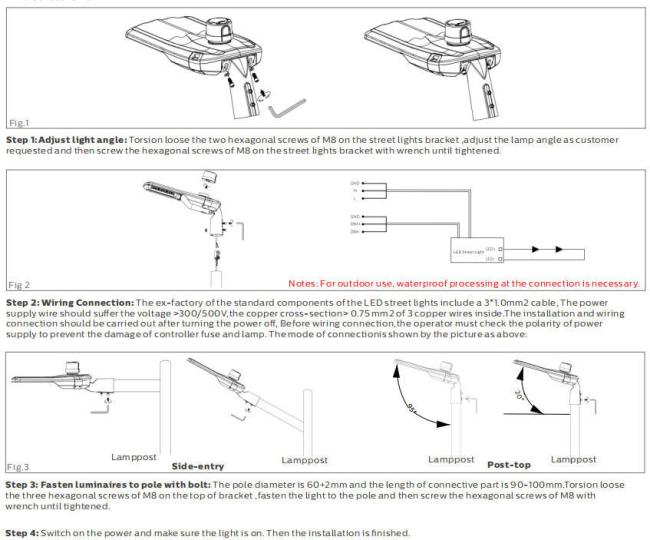

Turn off the power, connect AC wire.
Dimming connection ( With dimmable driver)
1.Compatible with 0-10V dimming.
2.Connect wires as above diagram.
Dimming connection ( With dimmable driver)
1.Compatible with 0-10V dimming.
2.Connect wires as above diagram.

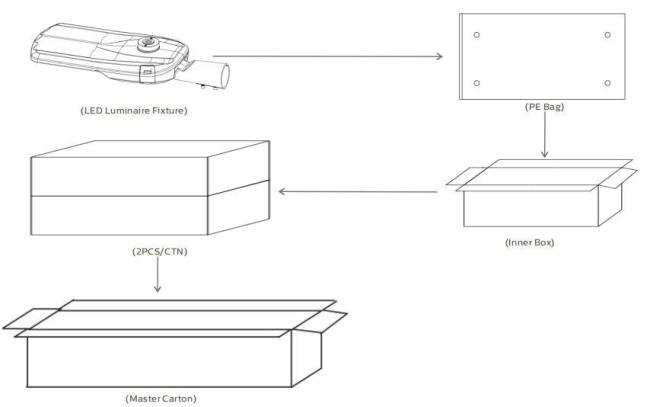

| Power/W Inner Box Outer Carton QTY”/CTN Unit N.W G.W/Carton |
| 100 260x260x150mm 790x273x282mm 5PCS 2.4Kg 14.5Kg |
| 150 300x300x150mm 790x313x322mm 5PCS 2.6Kg 14.9Kg |
| 150 350x350x150mm 790x363x372mm 5PCS 2.9Kg 15.6Kg |
Please read all the instructions below before installation:
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!
* To avoid electric shock, please ensure that the power supply is turned off before installation.
* The lamp should be installed and operated by a qualified electrician or technician in accordance with the National Electrical Code and corresponding local codes.
* Unpack and examine the lamp carefully, report any damage and save all packing materials if any portion of the product was damaged during transportation.
* If the lamp is damaged, do not use it!
Statement:
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.
According to the International Standard of LED luminaire, here DUALRAYS formally claims that DUALRAYS LED Highbay Light (UFO Highbay) series products is only allowed to be applied to indoor or semi-outdoor neutral environment. Meanwhile DUALRAYS promises full warranty for the products.
Any severe environment application including high/low temperature, high humidity, high salinity, high-ammonia etc. is not permitted without the official confirmation from the manufacturer. If any misapplication happens, the warranty policy is no longer guaranteed.
* Professional team: >15 years experience, own factory, >10 engineers team, powerful production capacity and QC management system, provide both good quality product and service;
* Reliable brand: Built up stable and long-term cooperation with Europe customers, got high prise and trust, and have warehouse in Netherlands for better service;
* Provide DIALux simulation: Send us your parameters of the applications, like distance, height, width, etc, our engineer team will do simulation according to your demand and recommend you the best product;
* All our LED luminaries comply with CE, RoHS standard. TUV, ENEC, VDE, SAA,C-Tick, LM79,LM80 listed for the leading products.
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the S4 LED Street light?
RE: 5 years warranty.extenstion to 7 years, If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.
Q2: What’s the payment methods you can accept ?
RE: We can accept multi payment routes in order to be more flexible and convenient for our customers all over the world,Western Union,Paypal,T/T,L/C.But generally the standard payment method is T/T for bulk orders,30% T/T in advance,balance 70% before shipment The bank information is written in the PI.
Q3: What is CRI?
RE: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.For LED tubes,the CRI is mostly >80Ra,and 90Ra with higher cost.
Q4: Can I only buy the housing separately?
Q4: Can I only buy the housing separately?
RE:Sorry,we only supply the whole luminaire fixture,but SKD/CKD can be accepted.
Q5:Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent orders,we suggest via air to airport plus
our ship partner send to your door.
Q6:Can we get support if we have our own market position?
our ship partner send to your door.
Q6:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market, demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q7: Dimming functions?
RE: DALI,PIR,1-10V diming available,built-in daylight sensor available for intellgent control for option.
Q8:What are the applications of your S3 LED Street light?
RE:Our street light can be applied in the following occassions:
RE:Our street light can be applied in the following occassions:
> Cycle lanes and ≤30KM/H areas;
> Urban and residential areas;
> Industrial areas and car parks;
> Avenues;
> Interurban roads and roundabouts;
> Motorways and highways;
Welcome to contact us for more information, visit our official website www.DUALRAYS.com or send us email to info@DUALRAYS.com to get the latest information and support.
Let's know more about DUALRAYS from below pictures!
Thank you for your using DUALRAYS LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
