150W Industrial UFO High Bay Light Built-In Driver With Competetive Price Eco version

Price Negotiable

Price: Negotiable

MOQ: 1PCS

Delivery Time: 5-15 Bussiness Day

Brand: DUALRAYS

Product Description

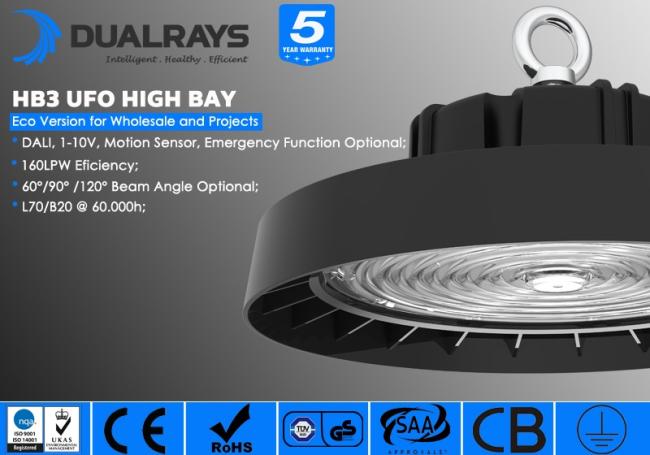

150W Industrial UFO LED High Bay Light Rod Mounting High Bay LED Lights

Model No.	DR-HB100-CGXP	DR-HB150-CGXP	DR-HB200-CGXP
System Watts/W	100W	150W	200W
System Efficiency/LPW	140LPW / 160LPW Optional
Lumen Output/lm	14.000 / 16.000±5%	21.000 / 24.000±5%	28.000 / 32.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD2835 (1W)
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120° Optional
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver
LED Driver	DUALRAYS Own-developed High PF Non-isolated Driver
IP Rating	IP65
Dimming(Optional)	0/1-10V/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Dualrays HB3 150W UFO LED High Bay Light-- Feature:

> Highly brightness SAN‘AN SMD3030 LEDs,energy efficient - up to 140 lm/w;

> Die-casting Al for excellent heat dissipation;

> Superior PC reflector-optic for low glare applications;

> IP65 and IK08 for all industrial areas of application;

> DUALRAYS own-developed built-in driver,slim design,compact and durable;

> Adjustable ripple-lens optic with 60°/90°/120° beam angle;

> D-Mark tested for the use in paper production, wood processing etc;

> No UV or IR and completely mercury free;

> L80/B10 @ 50.000h;

> 5 years warranty;

Dualrays HB3 150WUFO LED High Bay Light--Options:

> Driver: DUALRAYS Own-developed built-in driver,slim design,durable and compact.

> Controls and Dimming/ Zigbee wireless control / 1-10V Dimming / Daylight sensor.

> Reflector : PC reflector with / without cover.pipe mounting.

> Installation: loop hanging, ceiling mounting, wall mounting,

> Customized supported for special projects.

> Factories / Warehouses /Workshops

> Exhibitions & showrooms

> Barns and riding halls

> High rooms and halls

> Traditional lamp replacement

Character/Power	100W	150W	200W
A	Ø322mm	Ø322mm	Ø322mm
B	128mm	128mm	128mm

DALI Device

DALI Intelligent Control Diagram

DALI Intelligent Control Operator Interface
