Dualrays S4 Series 30W Multi Beam Angle Outdoor LED Street Lights 150LPW Efficiency 5 Years Guarantee
Price:
Negotiated
MOQ:
1PCS
Delivery Time:
Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Brand:
DUALRAYS
Product Description

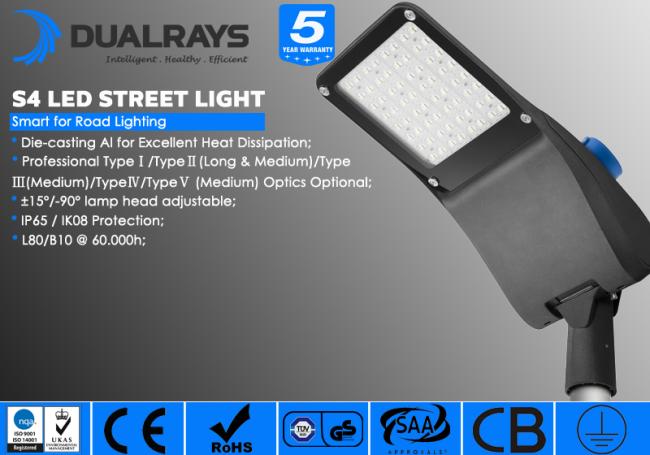

Dualrays S4 Series 30W Multi Beam Angle Outdoor LED Street Lights 150LPW Efficiency 5 Years Guarantee
Dualrays S4 Series LED Street Light-- Detailed Product Description
| Rated Power: | 30W | IP Rating: | IP66 |
|---|---|---|---|
| Material: | Aluminum+PC+Toughened Glass | LED Driver: | Meanwell ELG/HLG, Sosen |
| Finishing Color: | Black RAL9017 | LEDs Light Source: | SMD5050 |
| Life Span: | ＞50,000Hrs | SDCM: | ＜6 |
| THD: | ＜10% | Protection Class: | Class I |
Dualrays S4 Series LED Street Light-- Feature:
> Detachable modular design, easy to maintain and repaire;
> High luminous efficacy,the best choice for Replacing traditional street lights;
> Die-casting aluminum casing and high intensity toughened glass lens cover;
> Simple and quick installation, high-pole installation and wall installion;
> High luminous efficacy, great heat dissipation.Up to 150lm/w;
> ±10°/-90°(<90W) or ±15°/-90°(>90W) lamp head adjustable;
> No UV or IR and completely mercury free;
> L80/B10 @ 50.000h;
> Longtime maintain service, up to 7 years warranty;
Dualrays S4 Series LED Street Light-- Options:
> Driver: Meanwell ELG/HLG,Sosen;
> 120°*50°, 150°*70° beam angle for your options;
> Surge Protection Device is available;
> Remote Smart Control System;
> Night sensor + Microwave motion sensor + Remote Control;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Night sensor + Microwave motion sensor + Remote Control;
> DALI driver and DALI Centralized Manager optional;
> Light pole adapter for different poles optional;
> Customized special projects are accepted;
* Garden.
* Park.
* City Street.
* Public Square.
* Parking lot.
* School.
* Sport and Stadium.
* Sport and Stadium.
|
Item
|
Symbol
|
Description
|
|||||
|
Model No
|
/
|
DR-ST030-DG1
|
DR-ST060-DG1
|
DR-ST090-DG1
|
DR-ST120-DG1
|
DR-ST150-DG1
|
DR-ST180-DG1
|
|
Rated Power
|
W
|
30
|
60
|
90
|
120
|
150
|
180
|
|
LEDs Typ/Qty
|
SMD
3030
|
96
|
96
|
512
|
640
|
640
|
640
|
|
Luminous Flux
|
LM
|
4,200±5%
|
8,400±5%
|
12,600±5%
|
16,800±5%
|
21,000±5%
|
25,200±5%
|
|
Efficiency
|
LPW
|
140
|
140
|
140
|
140
|
140
|
140
|
|
Color Temperature
|
CCT/K
|
WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K
|
|||||
|
Dimming Function
|
/
|
1-10VDC /PWM / Resistance
|
|||||
|
Protections
|
/
|
Short circuit/Over current/Over voltage/Over temperature | |||||
|
Anti-salty spray
|
/
|
Grade A
|
|||||
|
Color Index
|
Ra
|
>70Ra/>80Ra optional | |||||
|
Beam Angle
|
Degree
|
120
|
|||||
|
IP/Rating
|
/
|
IP66
|
|||||
|
AC Input Vol
|
V
|
AC95~277V 50/60Hz
|
|||||
|
Optics
|
/
|
Type I /Type III
|
|||||
|
Power Factor
|
PF
|
PF>0.95
|
|||||
|
Starting Time
|
s
|
<0.1
|
|||||
| Lumen Maintenance @ 6000 hrs |
Hours
|
>95%
|
|||||
| Switching Cycle before Failure |
Times
|
100,000
|
|||||
|
Life Span
|
Hours
|
50,000
|
|||||
|
Warranty
|
Years
|
5 years
|
|||||
|
Operation Temperature
|
℃
|
-40 ~ +55℃ | |||||
|
Storage Temperature
|
℃
|
-40 ~ +85℃ | |||||
30W/60W Version
90W,120W/150W/180W Version
Zigbee Wireless Intelligent Control Diagram
Zigbee Wireless Intelligent Control Operator Interface
DALI Device
![]()
DALI Intelligent Control Diagram
![]()
![]()
DALI Intelligent Control Operator Interface
DALI Intelligent Control Diagram
DALI Intelligent Control Operator Interface
Packaging Information
|
Model No.
|
Net Weight/PCS
|
Outer Carton Size
|
G.W
|
Quantity/CTN
|
|
DR-ST030-DG1
|
4.9kg
|
L59xW380XH200mm
|
5.7kg
|
1PCS
|
|
DR-ST060-DG1
|
5.7kg
|
L59xW380XH200mm
|
6.8kg
|
1PCS
|
|
DR-ST090-DG1
|
6.8kg
|
L790xW390xH200mm
|
8.1kg
|
1PCS
|
|
DR-ST120-DG1
|
7.5kg
|
L790xW390xH200mm
|
8.9kg
|
1PCS
|
|
DR-ST150-DG1
|
8.4kg
|
L790xW390xH200mm
|
10.1kg
|
1PCS
|
|
DR-ST180-DG1
|
9.1kg
|
L1040xW490xH200mm
|
11.2kg
|
1PCS
|
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
-
Q1: What is the warranty for the S4 LED street light?RE: For the LED street light,Dualrays provide 5 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What is colour temperature?RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:Warm white = 3000±200KNatural white = 4000±200KPure white = 5000±200KCool white = 5700±200K -
Q3: Is there a MOQ?RE: No MOQ, Sample order for testing welcome.
Q4: What is the Lead time?RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.Q5: Do you offer mounting accessories?RE: Yes, please contact us for details.
Q6: Do you offer OEM or ODM?RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:1. We can provide you with our present products with your own label;2. We can modify our products as your request;3. We can even develop totally new products based on your design;Q7: What Optics available?RE: LED Street Light: Type I, Type II, Type III, Type IV, Type V for option.Q8: IP Rating?RE: IP66.
Q9: Dimming functions?RE: 1-10V / PWM / Resistance / Timer/ DALI dimmable driver available.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
