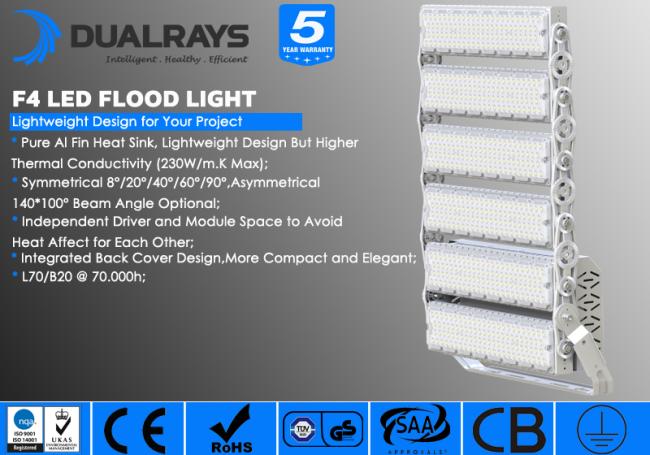

400W IP66 150LPW LED Sports Ground Flood lights Full Al Heat Sink Structure
200W IP66 150LPW LED Sports Ground Floodlights Full Al Heat Sink Structure
* CE,RoHS listed, TUV/GS Pending,5 years guarantee;
* Multi-optional optical lens( 15°/30°/45°/60°/90°) especially for sport lighting and high mast lighting;
* Anti-corrosion powder treatment,high anti-corrosion grade WF2;
* High brightness LUXEON SMD3030 LEDs,energy efficient - up to 150LPW;
* D-Mark tested for the use in paper production, wood processing etc;
* Installation:Ground Mounting, Wall Mounting, Ceiling Mounting,Pipe Mounting.
* Customized supported for special projects.
| Warranty: | 5 Years | IP Rating: | IP66 |
|---|---|---|---|
| Op. Temp.: | -40°C to + 50°C(-40°F to 122°F) | Driver: | Meanwell ELG/HLG,Sosen |
| Driver Type: | Flicker-Free | Efficacy: | 150Lm/W (± 5%) |
| Power Factor: | >0.95 | IVR: | AC85 - 277V 50/60Hz |
| Power: | 400W | Luminous Flux: | 60,000Lm (±5%) |
| LED Chip: | Lumileds | Chip Type: | SMD 3030 |
| CRI: | >70Ra (>80Ra for Option) | Lifespan: | >50,000 Hours |
| Beam Angle: | 10°/25°/45°/60°/90°/30*70°/80*140°/60*130° | Material: | Die-Cast Aluminum + PC |
| Color: | Black RAL9017 / White RAL9016 | Device Size: | L340xW110XH250 |
Advantage
* Provide Dialux software for lighting design project for our customers;
* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.
* Excellent experience for distributors, wholesales and contractor from Western Europe and Oceania;
* Our service and products are recognized from famous enterprises such as Jalasoft, Mercedes-Benz, Rewe, Nahkauf, Hagebau,etc.
> Advertising, billboard lighting;
> Building exterior lighting;
> Warehouse,
> Factory,
> Stair corridors lighting;
> Large and small parking,
> Square, Stadium lighting etc;
As a specialist in modern, efficient ,advanced LED lighting for industrial applications,Shenzhen Dualrays Optoelectronics Co.,Limited is one of the leading professional technology and marketing oriented NHTE (National High Technology Enterprise) in R&D,manufacturing,sales and service of intelligent industrial LED luminaires.
Q1: Does Dualrays have the ability to do independence and development ?
RE: Our engineer department have 12 people. We have the research and development capability. We also collect regularly each customer feedback. We have product improvement and new product development.
Q2: LEDs are more expensive than other lighting options,why ?
RE: LEDs can operate as stand alone devices,but when grouped or clustered they require additional steps to operate properly. LEDs need proper components such as a circuits can be designed rapidly, but to ensure that they operate correctly and for long periods of time they require testing.
Q3.What’s the meaning of “Beam Angle “?
RE: The spread of light from a luminaire. For example: a fitting such as a low bay ,which is closer to the floor,will have a wider beam angle to illuminate a given floor area while a high bay fitting will have a narrower beam.
Q4.How do we explain “CRI” ?
RE: A measure of the degree of colour shift objects undergo when illuminated by the light source as compared with those same objects when illuminated by a reference source of comparable colour temperature. The reference source has a CRI of 100.
Q5.What’s CCT(colour temperature) ?
RE: The description used to describe the effect of heating an object until it grows incandescently. The emitted radiation, and apparent colour, changes proportional to the temperature; easily envisioned radiation, and apparent colour, changes proportional to the temperature; easily envisioned ,when considering hot meal in a forge that glows red, then orange, and then white as the temperature increases.
Q6.Do you know “dali “?
RE: Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
