Full Plastic Housing LED Tri Proof Lamp 4ft 160LPW IP65 For Parking Warehouse Long Life
Price:
Please inquiry for latest price
MOQ:
2PCS
Delivery Time:
5-15 bussiness days
Brand:
DUALRAYS(OEM available)
Product Description
Dualrays D2 Series 4ft/40W LED Tri-proof Light 160LPW Efficiency 3 years guarantee emergency 0-10V and DALI dimming optional
![]()
Selling Points Diagram:
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
(I) Emergency Function
![]()
Packaging Information
Shipment
![]()
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
![]()
![]()
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
![]()
Selling Points Diagram:
* Full plastic housing with high transmittance arcrylic cover,light and economic design concept;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery,black and
white finish. No toxic heavy metals, VOC, or mercury were used in the design;
* BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver for long life,
quick responds,no flicker, lightning protection, PFC function,0-10V,DALI dimming and PIR sensor;
* 100LPW Standard Version,130LPW Proline Version,160LPW Primeline Version for option,CRI>80Ra,more sufficient;

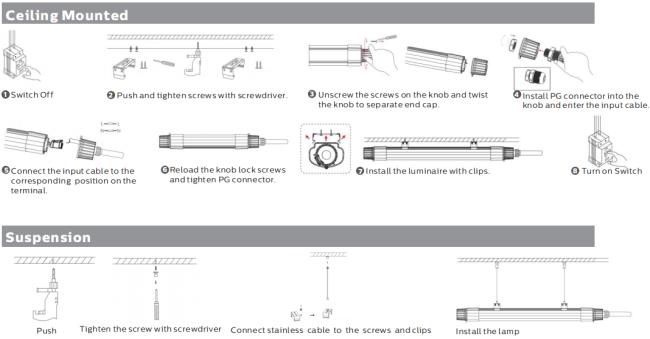

* Suspended/Surface mounted/Adjustable installation for option;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a silvery,black and
white finish. No toxic heavy metals, VOC, or mercury were used in the design;
* BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver for long life,
quick responds,no flicker, lightning protection, PFC function,0-10V,DALI dimming and PIR sensor;
* 100LPW Standard Version,130LPW Proline Version,160LPW Primeline Version for option,CRI>80Ra,more sufficient;
* Suspended/Surface mounted/Adjustable installation for option;
* Water-proof; Dust-proof; Damp-proof; Vapor-proof;
* CE,RoHS,LM79,LM80 listed,3 years guarantee;
* CE,RoHS,LM79,LM80 listed,3 years guarantee;
Specification:
* Train,Bus station and Office
* Workshops and warehouse
* Supermarkets
* Exhibition center
* Airport Hall
* Corridor/Gallery/Corridor
* Corridor/Gallery/Corridor
* Underground garage
| Item | Symbol | 2ft/20W | 4ft/40W | 5ft/50W |
| Model No | / | DR-TPL020-BG21 | DR-TPL040-BG41 | DR-TPL050-BG51 |
| Rated Power | W | 20 | 40 | 50 |
| LEDs Typ/Qty |
SMD 2835 |
144PCS | 273PCS | 312 PCS |
| Luminous Flux |
Clear Frost |
3,200±5% 3,000±5% |
6,400±5% 6,000±5% |
8,000±5% 7,500±5% |
| Efficiency |
Clear Frost |
Typ.160 Typ.150 |
Typ.160 Typ.150 |
Typ.160 Typ.150 |
| Color Temperature | CCT/K | WW:3000±200K NW: 4000±200K DW:5000±200K CW: 5700±200K | ||
| Color Index | Ra | >80Ra | ||

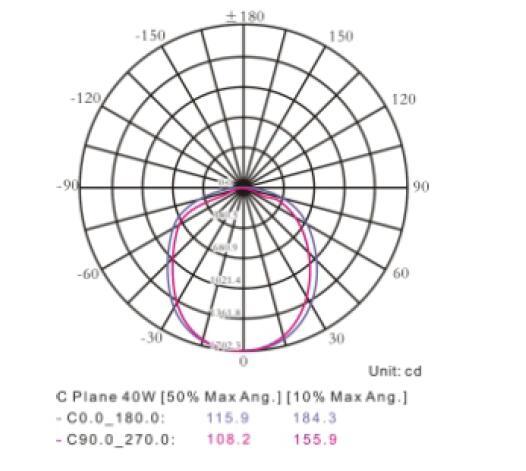

| Beam Angle | Degree | 120 | ||
| IP/Rating | / | IP65 | ||
| AC Input Vol | V | AC200~277V 50-60Hz | ||
| Power Factor | PF | PF>0.95 | ||
| Lumen Maintenance @ 6000 hrs | Hours | >80% | ||
| Switching Cycle before Failure | Times | 100,000 | ||
| Life Span | Hours | 50,000 | ||
| Warranty | Years | 3 years | ||
| Operation Temperature | ℃ | -15 ~ +50℃ | ||
| Storage Temperature | ℃ | -25 ~ +55℃ | ||
|
Character/Length
|
2ft
|
4ft
|
5ft
|
 |
|
A
|
600mm
|
1200mm
|
1500mm
|
|
|
B
|
74mm
|
74mm
|
74mm
|
|
|
C
|
74m
|
74mm
|
74mm
|
(I) Emergency Function
|
Model No.
|
Emergency Time (Hours)
|
Emergency Power (W)
|
Battery Parameters
|
|
DR-TPL020-BG21
|
3/2/1 hours for option
|
10W
|
7.4V/4400/3000/1500mAh Lithium Battery |
|
DR-TPL040-BG41
|
3/2/1 hours for option
|
10W
|
11.1V/6000/4000/2000mAh Lithium Battery
|
|
DR-TPL050-BG51
|
3/2/1 hours for option
|
10W
|
11.1V/8800/6000/3000mAh Lithium Battery |
1. Interior circuit with emergency device has been already connected;
2 4 wire output.(EuMarket:Blue-Neutralwire/Black-Livewire/Brown-Switchwire/Yellow&Green-Earthwire)
3 Indicator color(Green–main power, Yellow–malfunction,Red-Charging)
4 Battery can be recharged at least 500 times.In order to maintain the battery,it must be discharged every 3 months.
Remark: MSDS Test Report is available.
(II) 0-10V Dimming
![]()
(II) Microwave Sensor 2 Stage Dimming Type
Remark: MSDS Test Report is available.
(II) 0-10V Dimming
(II) Microwave Sensor 2 Stage Dimming Type
a. With 5.8G Hz microwave technology, stable detection performance and long life time.
b. Detection zone Max. is 16m*8m (D*H) MC003V/D.
Stand-by dimming level in 10% / 20% / 30% / 40% / 50%.
Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable.
c. Water proof sensor with IP65 rating.
d. Built-in adjustable daylight sensor.
e. 2 step dimming function 100% ---> low light (Never turn off)
f. 3 step dimming function
100% ---> low light(10%,20%,30%,40%,50%) ---> off
g. Automatic dimming when used in combination with 1-10V dimmable control gears.
Packaging Information
|
Size
|
Net Weight/PCS
|
Outer Carton Size
|
G.W
|
Quantity/CTN
|
|
2ft
|
0.9kg
|
L670xW440xH200mm
|
13.2kg
|
10PCS
|
|
4ft
|
1.8kg
|
L1270xW360xH200mm
|
17.5kg
|
8PCS
|
|
5ft
|
2.1kg
|
L1570xW360xH200mm
|
20.6kg
|
8PCS
|
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty?
RE: For the D2 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What is colour temperature?
Q2: What is colour temperature?
RE: Dualrays' LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K
Q3: Is there a MOQ?
RE: No MOQ, Sample order for testing welcome.
Q4: What is the Lead time?
Q4: What is the Lead time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q14: Is there cheap shipping cost to import to our country?
Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.
Q6: Do you offer mounting accessories?
Q6: Do you offer mounting accessories?
RE: Yes, please contact us for details.
Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
Q9: What is the CRI?
Q12: Finish color?
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q8: What‘re the chips and drivers used?
RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.
Q9: What is the CRI?
RE: Ra>80 for standard.
Q10: IP Rating?
RE: IP65.
Q11: Labeling ?
Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).
Q12: Finish color?
RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.
Q13: Dimming functions?
Q13: Dimming functions?
RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.
Q14: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.
Q15:Can we get support if we have our own market position?
orders,we suggest via air to airport plus our ship partner send to your door.
Q15:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
