20W 2FT Waterproof Led Tri proof light Adopted by
Price:
Negotiable
MOQ:
8pcs
Delivery Time:
5-15 business days
Brand:
DUALRAYS
Product Description
20W 2FT Waterproof Led Tri-proof light Adopted by
> Highly brightness EPISTAR/SAN‘AN SMD2835 LEDs,energy efficient - up to 160 lm/w;
> 1-10V dimming flicker-free driver,DIP Switch Power Adjustment available,CCT adjustable available;
> Single or Double wiring,backside cable output avaialable;
> IP66 and IK10 for all industrial areas of application;
> L80> 50.000h;
> 5 years warranty;
Options:
Options:
> Driver: DUALRAYS Own-developed flicker-free driver,BOKE DIP switch power adjustable driver.

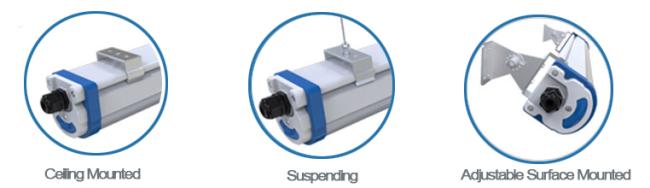

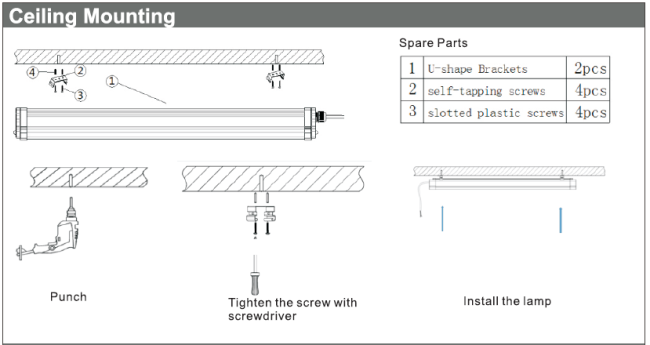

> Installation: Suspension/Ceiling mounted;.
> Customized supported for special projects.
* Replacement for fluorescent NCF
* Garage and car parks
* Outdoor & Indoor Locations
![600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty]()
| Model No. | DR-TP020-BG21 | |||
| Rated Power/W | 40 | |||
| Luminous Flux/LM | 4800 | |||
| Systen Efficiency/LPW | 120 | |||
| IP/Rating | IP66 | |||
| THD | <10% | |||
| SDCM | <5 | |||
| Lumen Maintenance @ 6000 hrs | >95% | |||
| Switching Cycle before Failure | 100,000 | |||
| Installation Option | Bracket/Suspending | |||
| Storage Temperature | -40 ~ +85℃ | |||
| Certificate | CE ROHS | |||
|
Character/Length
|
2ft
|
4ft
|
5ft
|
 |
|
A
|
600mm
|
1200mm
|
1500mm
|
|
|
B
|
74mm
|
74mm
|
74mm
|
|
|
C
|
74m
|
74mm
|
74mm
|
(I) Emergency Function
DALI Device
![600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty]()
DALI Intelligent Control Diagram
![600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty]()
![600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty]()
DALI Intelligent Control Operator Interface
![600mm 20W LED Tri-proof light 2400lm and 5 Years Warranty]()
DALI Intelligent Control Diagram
DALI Intelligent Control Operator Interface
In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.
(DIALUX Simulation)
Dualrays adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.
