40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center
Price:
Negotiated
MOQ:
10PCS
Delivery Time:
5-15 business days
Brand:
DUALRAYS
Product Description

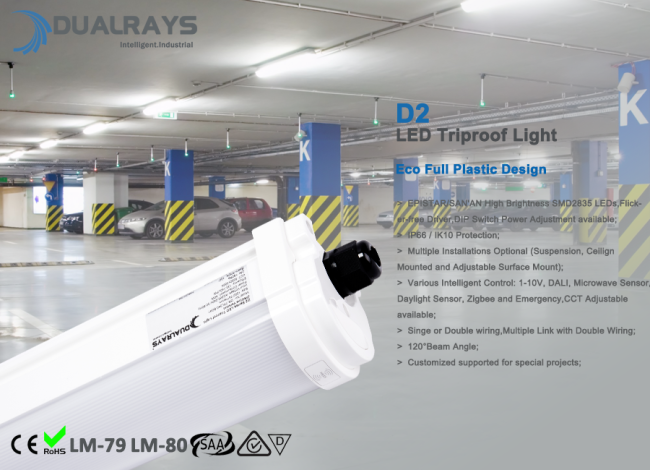

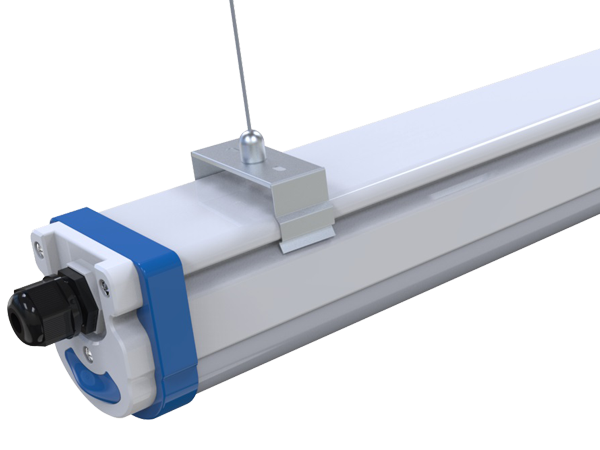

40W 4FT LED Tri Proof Light IP66 Parking Lot Tube High Efficiency For Exhibition Center
Detailed Product Description
| LEDs Light Source : | SMD2835 | IP Rating: | IP66 |
| Power Factor: | >0.96 | AC Input Vol: | AC200~277V 50-60Hz |
| Beam Angle(Optional): | 120° | CCT/K: | 3000/4000/5000/5700K |
| LEDs Typ: | SMD2835 | Warranty: | 3 Years |
1. High strength engineering plastic light body,durable and good heat dissipation efficiency;
2. IK09 and 5VA rated shatter-proof optically enhanced diffuser (Clear/Frosted cover optics for option) and stainless-steel clips;
3. High output lighting efficiency 160LPW upmost；
4. PFC function,0-10V,DALI dimming and PIR sensor；
5. Water-proof; Dust-proof; Damp-proof; Vapor-proof；
6. BOKE flicker-free constant current driver is isolated away from the heat source of the LEDs,keeps the stability and performance of the driver for long life；
1. Workshop
2. School
3. Conference
4. Airport hall
2. School
3. Conference
4. Airport hall
|
Character/Length
|
2ft
|
4ft
|
5ft
|
 |
|
A
|
600mm
|
1200mm
|
1500mm
|
|
|
B
|
74mm
|
74mm
|
74mm
|
|
|
C
|
74m
|
74mm
|
74mm
|
(I) Emergency Function
|
Model No.
|
Emergency Time (Hours)
|
Emergency Power (W)
|
Battery Parameters
|
|
DR-TPL020-BG21
|
3/2/1 hours for option
|
10W
|
7.4V/4400/3000/1500mAh Lithium Battery |
|
DR-TPL040-BG41
|
3/2/1 hours for option
|
10W
|
11.1V/6000/4000/2000mAh Lithium Battery
|
|
DR-TPL050-BG51
|
3/2/1 hours for option
|
10W
|
11.1V/8800/6000/3000mAh Lithium Battery |
1. Interior circuit with emergency device has been already connected;
2 4 wire output.(EuMarket:Blue-Neutralwire/Black-Livewire/Brown-Switchwire/Yellow&Green-Earthwire)
3 Indicator color(Green–main power, Yellow–malfunction,Red-Charging)
4 Battery can be recharged at least 500 times.In order to maintain the battery,it must be discharged every 3 months.
Remark: MSDS Test Report is available.
(II) 0-10V Dimming
![Dualrays D2 Series 20W LED Tri Proof Light PC Housing With IP65 Protection 3 Years Warranty]()
(II) Microwave Sensor 2 Stage Dimming Type
Remark: MSDS Test Report is available.
(II) 0-10V Dimming
(II) Microwave Sensor 2 Stage Dimming Type
a. With 5.8G Hz microwave technology, stable detection performance and long life time.
b. Detection zone Max. is 16m*8m (D*H) MC003V/D.
Stand-by dimming level in 10% / 20% / 30% / 40% / 50%.
Stand-by period has 5s / 5min / 10min / 30min / 1h / Disable.
c. Water proof sensor with IP65 rating.
d. Built-in adjustable daylight sensor.
e. 2 step dimming function 100% ---> low light (Never turn off)
f. 3 step dimming function
100% ---> low light(10%,20%,30%,40%,50%) ---> off
g. Automatic dimming when used in combination with 1-10V dimmable control gears.
Packaging Information
|
Size
|
Net Weight/PCS
|
Outer Carton Size
|
G.W
|
Quantity/CTN
|
|
2ft
|
0.9kg
|
L670xW440xH200mm
|
13.2kg
|
10PCS
|
|
4ft
|
1.8kg
|
L1270xW360xH200mm
|
17.5kg
|
8PCS
|
|
5ft
|
2.1kg
|
L1570xW360xH200mm
|
20.6kg
|
8PCS
|
Shipment
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q1: What is the warranty for the D2 LED triproof light?
RE: For the D2 Series LED triproof light,Dualrays provide 3 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What is colour temperature?
Q2: What is colour temperature?
RE: Dualrays‘ LED lighting offer lamps in warm white, natural white,pure white and cool white with colour temperatures measured in Kelvin (K). The lower the colour temperature is,
the warmer the light given by the LED:
the warmer the light given by the LED:
Warm white = 3000±200K
Natural white = 4000±200K
Pure white = 5000±200K
Cool white = 5700±200K
Q3: Is there a MOQ?
RE: 10PCS
Q4: What is the Lead time?
Q4: What is the Lead time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q5: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.
Q6: Do you offer mounting accessories?
Q6: Do you offer mounting accessories?
RE: Yes, please contact us for details.
Q7: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
Q9: What is the CRI?
Q12: Finish color?
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q8: What‘re the chips and drivers used?
RE: High brightness San‘an SMD2835 LEDs light source,flicker free drivers for option.
Q9: What is the CRI?
RE: Ra>80 for standard.
Q10: IP Rating?
RE: IP65.
Q11: Labeling ?
Q11: Labeling ?
RE: Neutral labeling/ Custom designed labels / Laser printing labels (at request).
Q12: Finish color?
RE: Standard colors: Silver,other colors can be customized, based on MOQ 50PCS.
Q13: Dimming functions?
Q13: Dimming functions?
RE: PIR sensor,Emergency,1-10V,DALI,Microwave sensor is available.
Q14: Is there cheap shipping cost to import to our country?
RE: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much time.For urgent
orders,we suggest via air to airport plus our ship partner send to your door.
Q15:Can we get support if we have our own market position?
orders,we suggest via air to airport plus our ship partner send to your door.
Q15:Can we get support if we have our own market position?
RE: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
