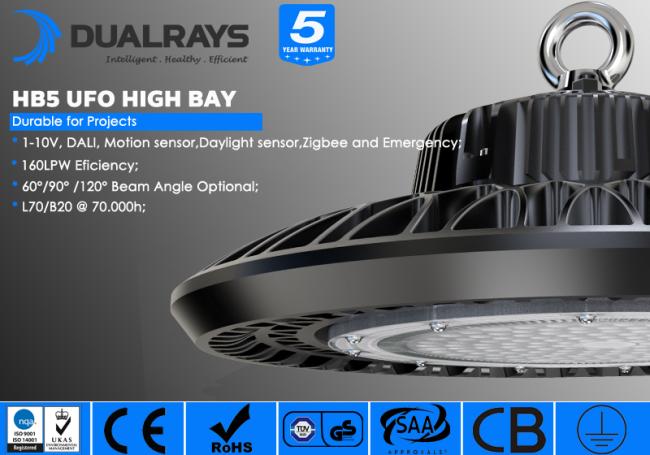

UFO High Bay Light SAA TUV 150W SMD3030 Led Lighting With Meanwell Driver

Price Negotiable

Price: $55.66/pcs

MOQ: 1pcs

Delivery Time: 5-15 business days

Brand: DUALRAYS

Product Description

High Bay Super Durable for Industrial Application, High Lumen Efficiency

a. Luxeon SMD3030 LEDs, chips lumen up to 140lm/w, LM80 listed;

b. LED Driver: Meanwell, Sosen;

c. L80>65,000hrs;

d. Optic lens: 60°/90°/120°, dialux lighting design service for free, IES file free to offer;

e. Rated power: 100W/ 150W/ 200W/ 240W；

f. Intellegent and Dimming function optional: 1-10V/ DALI/ Zigbee;

g. Sensor optional: Motion sensor, daylight sensor

Model No.	DR-HB100-EGXP	DR-HB150-EGXP	DR-HB300-EGXP
System Watts/W	100W	150W	300W
System Efficiency/LPW	14.000±5%	21.000±5%	42.000±5%
Efficiency/ lm/w	140LM/W
Rated Input Voltage/V	AC100~277V 50/60Hz
LEDs Light Source	SMD3030
SDCM	<5
CCT/K	3000K/4000K/5000K/5700K/6500K
CRI/Ra	>80Ra (>70Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/110°
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 10KV() or 20KV Meanwell Optional
LED Driver	Meanwell HBG/ ELG/ HLG, Sosen
IP Rating	IP65
Dimming(Optional)	0/1-10V/DALI/Zigbee
Sensor(Optional)	Pluggable Motion Sensor, Daylight sensor
Emergency(Optional)	Available
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017 / White RAL9016
Material	Aluminum+PC
Lifespan/hrs	>50.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	-40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	-40°C to + 65°C(-40°F to 149°F)
Dimension/mm	Φ350*210mm
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting,Pipe Mounting
Certificate	CE(EMC+LVD), RoHS, TUV/GS, D-Mark, SAA, RCM Available;
