IP65 140LPW 100W UFO LED High Bay Light IK10 SMD3030
> High Brightness LUMILEDS LUXEON SMD3030 2D LEDs, SOSEN/Meanwell HBG/ELG/HLG Round/Rectangle.
Driver;
> Built-in Plug and Play Motion Sensor with Compact Structure;
> IP65 / IK08 Protection;
> 60°/90° (with Pearl Lens)/120° (without Toughened Glass Cover) beam angle optional;
> Corrosive Resistant Powder Coated Finish;
> D-Mark tested for the use in paper production,wood processing etc with toughened glass;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V,Motion sensor,Daylight sensor,Zigbee and Emergency;
> No UV or IR and completely mercury free;
> L70/B20 @ 60.000h;
> Customized supported for special projects;
Options:
> Driver: DUALRAYS Non-isolated Driver;
> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

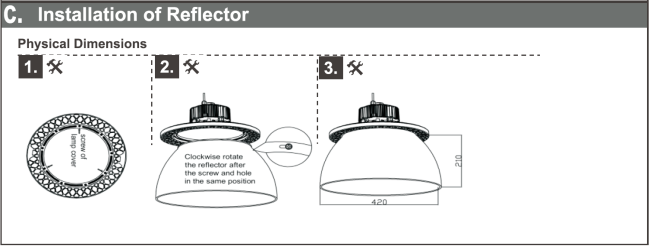

> Reflector : PC reflector / Al reflector;
> Lens : 60°/90° (with Pearl Lens)/120° (with Toughened Glass Cover) beam angle optional;

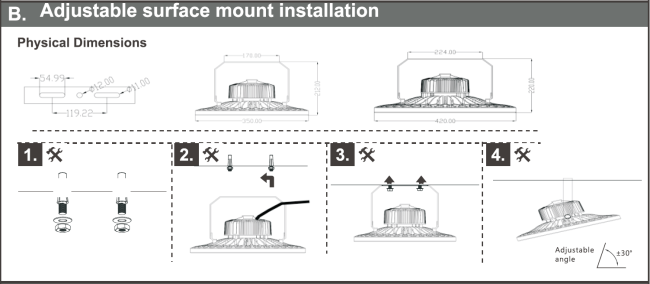

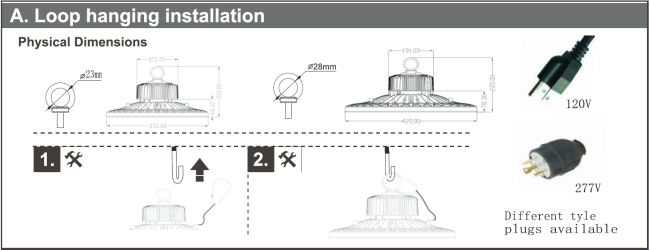

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement

|
|

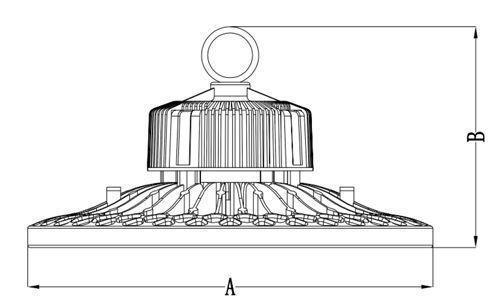

Character/Power
|
100W
|
150W
|
200W
|
240W
|
![]() |
|
A
|
Ø350mm
|
Ø350mm
|
Ø420mm
|
Ø420mm
|
|
|
B
|
210mm
|
210mm
|
220mm
|
220mm
|

|
Model No.
|
Net Weight/PCS
|
Outer Carton Size
|
G.W
|
Quantity/CTN
|
|
DR-HB100-CG2
|
5.7kg
|
L415xW390XH205mm
|
6.5kg
|
1PCS
|
|
DR-HB150-CG2
|
6.5kg
|
L415xW390XH205mm
|
7.6kg
|
1PCS
|
|
DR-HB200-CG2
|
7.2kg
|
L485xW460xH225mm
|
8.4kg
|
1PCS
|
|
DR-HB240-CG2
|
7.5kg
|
L485xW460xH225mm
|
8.6kg
|
1PCS
|
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
Q3: What is the CRI?
Q5: Labeling ?
Q6: Finish color?
Q7: Dimming functions?
Q8: Is there cheap shipping cost to import to our country?
orders,we suggest via air to airport plus our ship partner send to your door.
Q9:Can we get support if we have our own market position?
Thank you for your using Dualrays LED luminaires, we regards quality first as our marketing philosophy from the design and package of all our
products,we here declare that all of our products are tested by professionals and obey strict quality standards,we have professional after-sale
service team to follow our customers,we promise that when you find any quality problems caused by the products quality itself within its
guarantee period,you can contact us freely. When confirmed by the QC Department, we will immediately help you to exchange or
maintain products for free.Shenzhen Dualrays Optoelectronics Co., LIMITED. will serve you with heart and soul!
