140LWP Led High Bay Lamp 20KV IP65 100W With Tempered Glass
Price:
Please inquiry for updated price
MOQ:
1pcs for Sample Order welcome
Delivery Time:
5-15 Bussiness Day
Brand:
DUALRAYS(OEM available)
Product Description

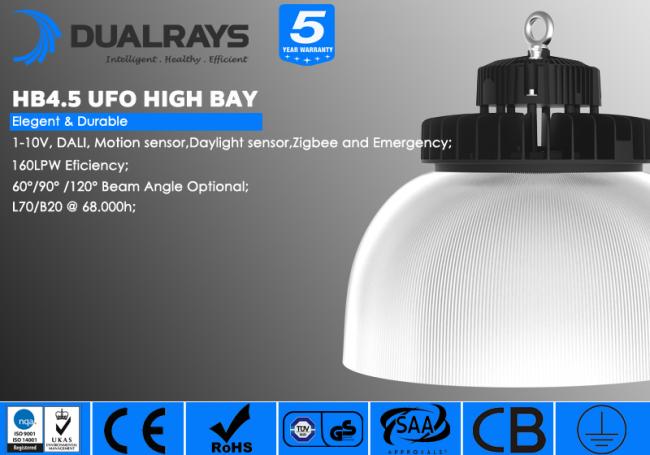

LED UFO high bay light Aluminum 100W 140LWP IP65 Sensor available
DUALRAYS HB4.5 Eco Version UFO High Light Spe.pdf
Options:
> Driver: DUALRAYS Non-isolated Driver;
> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;
> Reflector : PC reflector / Al reflector;
> Lens : 60°/90° (with Pearl Lens)/120° (with Toughened Glass Cover) beam angle optional;
> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Factories / Warehouses / Supermarket
> Exhibitions / Showrooms / Animal Farm
> Barns and Riding Halls / Logistic Center
> High Rooms and Halls / Stadium / Chemical Plant
> Traditional lamp replacement
|
Model No.
|
DR-HB100-CGXP | DR-HB150-CGXP | DR-HB200-CGXP | DR-HB240-CGXP |
|
System Watts/W
|
100W | 150W | 200W | 240W |
|
System Efficiency/LPW
|
140LPW | |||
|
Lumen Output/lm
|
14.000±5% | 21.000±5% | 28.000±5% | 33.600±5% |
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||
|
LEDs Light Source
|
SMD3030 | |||
|
SDCM
|
<5 | |||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||
|
Power Factor
|
>0.95 | |||
|
THD
|
<10% | |||
|
Beam Angle(Optional)
|
60°/90°/120° | |||
|
UGR
|
<25 | |||
|
Surge Protection
|
3.75~4KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
|
LED Driver
|
DUALRAYS Own-developed High PF Non-isolated Driver | |||
|
IP Rating
|
IP65 | |||
|
Dimming(Optional)
|
0/1-10V/Zigbee | |||
|
Sensor(Optional)
|
Motion Sensor,Daylight Sensor | |||
|
Emergency(Optional)
|
Available (30W @ 3Hrs for Standard) | |||
|
Protection Class
|
ClassⅠ | |||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||
|
Material
|
Aluminum+PC (Toughened Glass Cover Optional) | |||
|
Lifespan/hrs
|
60.000 Hrs (Ta=30℃@L70) | |||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||
|
Installation(Optional)
|
Loop Hanging, Ceiling Mounting, Wall Mounting | |||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
|
Character/Power
|
100W
|
150W
|
200W
|
240W
|
 |
|
A / mm
|
Φ250
|
Φ300
|
Φ345
|
Φ345
|
|
|
B / mm
|
178
|
181
|
183
|
183
|
DALI Device
![]()
DALI Intelligent Control Diagram
![]()
![]()
DALI Intelligent Control Operator Interface
![]()
DALI Intelligent Control Diagram
DALI Intelligent Control Operator Interface
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-HB100-CGXP
|
2.2
|
320*320*165
|
2.9
|
1PCS/CTN
|
|
DR-HB150-CGXP
|
2.4
|
355*350*165
|
3.1
|
1PCS/CTN
|
|
DR-HB200-CGXP
|
2.5
|
410*410*175
|
3.3
|
1PCS/CTN
|
|
DR-HB240-CGXP
|
2.9
|
410*410*175
|
3.8
|
1PCS/CTN
|
