Stadium LED Sports Light SMD5050 800W SAA 150lm/W For Tennis Court Lights
Price:
USD523.84$ to USD624.93$
MOQ:
1pcs
Delivery Time:
Negotiable
Brand:
DUALRAYS
Product Description

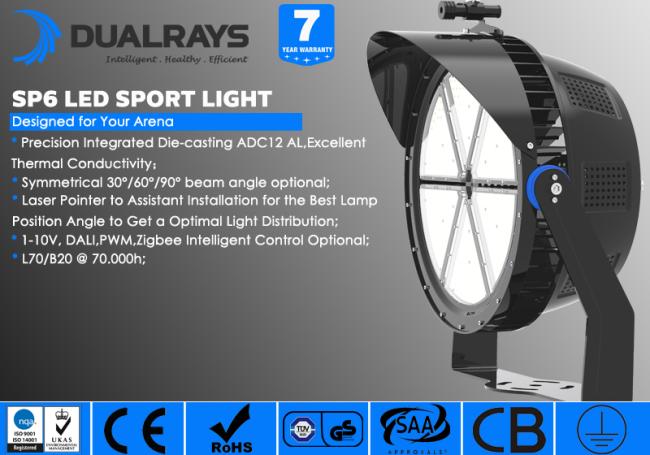

DUALRAYS SP6 Sport Light for Stadium Lighting 160lm/w High Efficiency
DUALRAYS SP6 LED Sport Light Spe.pdf
- LUMILEDS LUXEON High Brightness SMD5050 LEDs;
- Meanwell ELG/HLG Driver;
- IP66 Protection;
- 30°/60°/90° beam angle optional;
- Adjustable mounting bracket for wall mast or suspending installation;
- Air breather design to balance air pressure and moisture prevent;
- Various intelligent control: 1-10V, DALI, PWM,Zigbee Wireless Dimming for option;
- Customized supported for special projects Junction box for convenient wiring from the driver box
|
Model No.
|
DR-SPL300-FGXP | DR-SPL400-FGXP | DR-SPL600-FGXP | DR-SPL800-FGXP |
|
System Watts/W
|
300W | 400W | 600W | 800W |
|
System Efficiency/LPW
|
150LPW | |||
|
Lumen Output/lm
|
45.000±5% | 60.000±5% | 90.000±5% | 120.000±5% |
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||
|
LEDs Light Source
|
SMD5050 | |||
|
SDCM
|
<5 | |||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||
|
Power Factor
|
>0.95 | |||
|
THD
|
<10% | |||
|
Beam Angle(Optional)
|
30°/60°/90° | |||
|
UGR
|
<25 | |||
|
Surge Protection
|
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
|
LED Driver
|
Meanwell ELG / HLG Optional | |||
|
IP Rating
|
IP65 | |||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee for Option | |||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||
| Start Time | 0.5s | |||
|
Protection Class
|
ClassⅠ | |||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||
|
Material
|
Aluminum+PC | |||
|
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | |||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||
| Switching Cycles | 100,000 Times | |||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
Features:
> High Brightness LUMILEDS LUXEON SMD5050 LEDs, Meanwell HLG / ELG Driver Optional;
> Precision Integrated Die-casting Process,Excellent Thermal Conductivity；
> IP65 / IK08 Protection;
> Symmetrical 30°/60°/90° beam angle optional;
> Corrosive Resistant Powder Coated Finish；
> Multi-scale lens to create well-balanced distribution and reduce glare;
> Shield to Reduce the Light Glare;
> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;
> 360°Adjustable Supporting Fixture;
> No UV or IR and completely mercury free;
> L70/B20 @ 70.000h;
> Customized supported for special projects;
