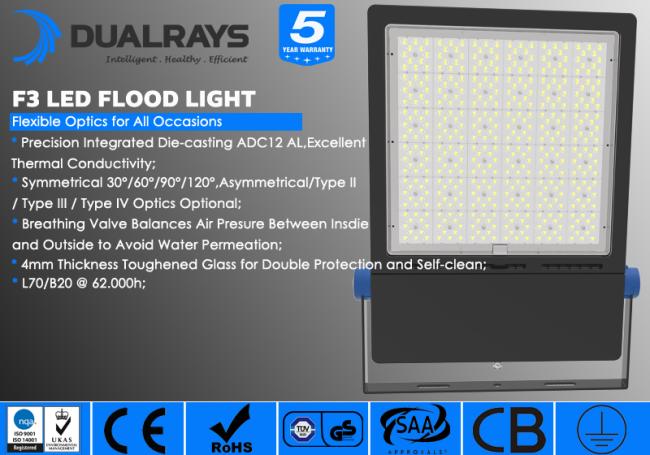

50 Watt Stadium LED Slim Floodlights Type II Type III Type IV Beam Angle Optional

LED Slim Floodlights Feature:

> Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional;
> Surface Electrostatic Spraying Finish,Oxidation/Corrosion/Acid Resistant；
> D-Mark tested for the use in paper production,wood processing etc with toughened glass;
> 4mm Thickness Toughened Glass for Double Protection and Self-clean;
> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
> Adjustable Supporting Fixture;

Advantages:

* Tens of R&D engineers with more than 10 years experience in LED luminaires industry;

* Provide Dialux software for lighting design project for our customers;

* Have branch office and warehouse in Netherlands with more than 4000㎡. 3 days delivery time, fast reaction.

* All products comply at least 3 years;

> Microwave Motion Sensor;

> Airports & Harbors

> Billboard illumination

> Large recreational sports facilities

> Industrial areas & Landscape buildings

> Roundabouts and motorway junctions

Model No.	DR-FL050-CGXX	DR-FL100-CGXX	DR-FL150-CGXX	DR-FL200-CGXX	DR-FL300-CGXX
System Watts/W	50W	100W	150W	200W	300W
System Efficiency/LPW	120~125LPW
Lumen Output/lm	6.500±5%	12.500±5%	18.750±5%	25.000±5%	37.500±5%
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 30°/60°/90°/120°,Asymmetrical/Type II / Type III / Type IV beam angle optional
UGR	<25
Surge Protection	6~10KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Sosen,Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Sensor (Optional)	Motion Sensor
Protection Class	ClassⅠ

Character/Power	100W	150W	200W	240W	300W
A / mm	389	389	437	493	582
B / mm	297	297	346	379	444
C / mm	57	57	57	57	60

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-FL050-CGXX	3.6	355*350*165	4.5	1PCS/CTN
DR-FL100-CGXX	3.8	355*350*165	4.7	1PCS/CTN
DR-FL150-CGXX	4.5	415*410*175	5.8	1PCS/CTN
DR-FL200-CGXX	5.7	475*470*195	7.3	1PCS/CTN
DR-FL300-CGXX	9.3	475*470*195	11.5	1PCS/CTN
