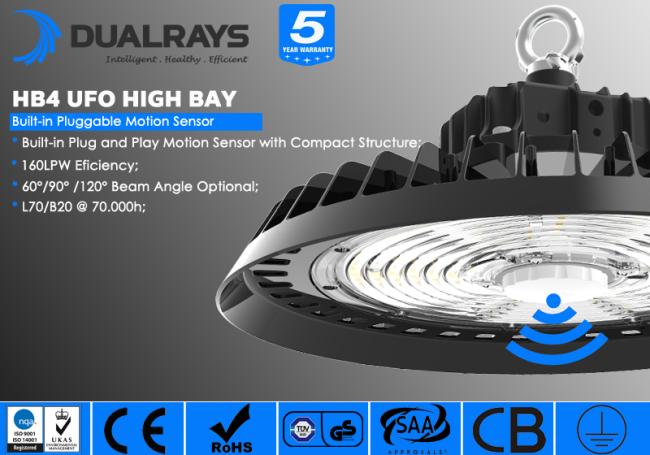

LED UFO Hgh Bay Light 140LPW Pluggable Motion Sensor 150W IP65

Options:
> Driver: Meanwell HBG(Round),ELG/HLG(Retangle),Sosen;

> Controls and Dimming: 1-10V, DALI, Motion sensor,Daylight sensor,Zigbee and Emergency;

> Reflector : PC reflector / Al reflector;

> Lens : 60°/90° (with Pearl or Stripe Lens)/120° (PC or Toughened Glass Cover)

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Factories / Warehouses / Supermarket

> Exhibitions / Showrooms / Animal Farm

> Barns and Riding Halls / Logistic Center

> High Rooms and Halls / Stadium / Chemical Plant

> Traditional lamp replacement

Character/Power	100W	150W	200W	240W
A / mm	Φ290	Φ340	Φ380	Φ380
B / mm	171	181	183	183

DALI Device


DALI Intelligent Control Diagram


DALI Intelligent Control Operator Interface



FAQ

Q1: What are the advantages of UFO high bay light?

RE:According to the light source, high bay lights can be divided into traditional high bay lights (such as sodium lamp high bay lights, mercury lamp high bay lights, etc.) and LED high bay lights. So what are the advantages of LED high bay lights?

Compared with traditional high bay lights, LED high bay lights have four major advantages:

1. LED high bay light display index high RA>70

2. LED industrial and mining lights are more efficient and more energy-saving. The 100W LED industrial and mining lights can replace the traditional 250W traditional industrial and mining lights.

3. Traditional light sources have the disadvantage of high temperature of lamps, which can reach 200-300 degrees. The LED itself is a cold light source, the temperature of the lamp is low, and it is safer.

4. In the continuous innovation of LED high bay lights, the latest fin radiator high bay lights have a more reasonable radiator design, which greatly reduces the weight of industrial and mining lamps and reduces the overall weight of 80W LED high bay lights to below 4KG. It can perfectly solve the heat dissipation problem of 80-300W LED high bay lights.

The lifespan of LED high bay lights and LED energy-saving lamps is determined by the life of the lamp beads and the life of the driving power supply. If one link fails, the LED high bay lights and LED energy-saving lamps will also be damaged. Generally, the life of the lamp beads is 50,000 hours, even the domestic lamp beads will exceed 30,000 hours. Then the life of LED high bay lights and LED energy-saving lamps will be determined by the quality of the driving power supply. The life span of the drive power supply is currently very low, generally between 3000-5000 hours. An important reason is the lack of the life span of the aluminum electrolytic capacitors required for the drive power supply. The primary reason is that the ambient temperature inside the LED high bay lamps and LED energy-saving lamps is very high during long-term operation, causing the electrolyte of the aluminum electrolytic capacitors to be quickly consumed. , Life span is greatly shortened. The life of the LED light source is 50,000 hours, so the operating life of the aluminum electrolytic capacitor becomes the short rib of the life of the LED drive power supply.

Therefore, the general quality of LED lamps needs to be improved. The fundamental reason is that the quality of the driving power supply has not kept up. A good drive power must choose a good capacitor. As a result, the current price of lamps is relatively high.
