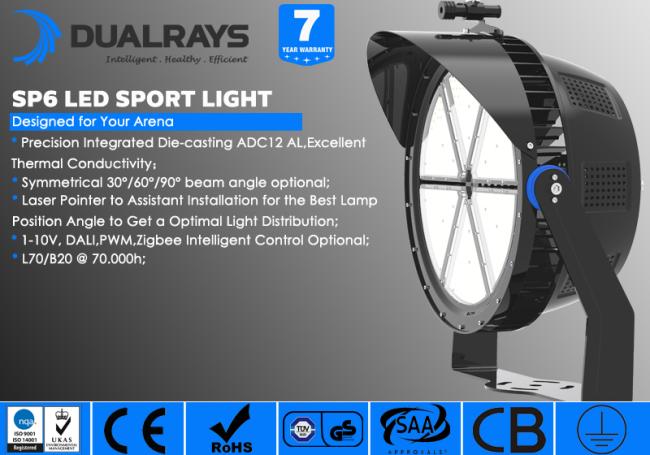

800W 6KV 160LPW LED Sports Ground Floodlights Best Lamp For Show Jumping Sink
800W LED Sport Flood Light Laser Pointer to Assistant Installation 160LPW
> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;
|
Model No.
|
DR-SPL300-FGXP | DR-SPL400-FGXP | DR-SPL600-FGXP | DR-SPL800-FGXP |
|
System Watts/W
|
300W | 400W | 600W | 800W |
|
System Efficiency/LPW
|
150LPW | |||
|
Lumen Output/lm
|
45.000±5% | 60.000±5% | 90.000±5% | 120.000±5% |
|
Rated Input Voltage/V
|
AC100~277V, 50/60Hz | |||
|
LEDs Light Source
|
SMD5050 | |||
|
SDCM
|
<5 | |||
|
CCT/K
|
5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
|
CRI/Ra
|
>70Ra (>80Ra for Option) | |||
|
Power Factor
|
>0.95 | |||
|
THD
|
<10% | |||
|
Beam Angle(Optional)
|
30°/60°/90° | |||
|
UGR
|
<25 | |||
|
Surge Protection
|
4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
|
LED Driver
|
Meanwell ELG / HLG Optional | |||
|
IP Rating
|
IP65 | |||
|
Dimming(Optional)
|
1-10V, DALI,PWM,Zigbee for Option | |||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||
| Start Time | 0.5s | |||
|
Protection Class
|
ClassⅠ | |||
|
Finishing Color(Optional)
|
Black RAL9017(Standard) / White RAL9016 Optional | |||
|
Material
|
Aluminum+PC | |||
|
Lifespan/hrs
|
70.000 Hrs (Ta=30℃@L70) | |||
|
Operation Temp/℃
|
40°C to + 50°C(-40°F to 122°F) | |||
|
Storage Temp/℃
|
- 40°C to + 65°C(-40°F to 149°F) | |||
| Switching Cycles | 100,000 Times | |||
|
Certificate
|
CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
(300W) (400W) (500W)
(600W) (800W) (1000W)
|
Model No.
|
Net Weight/Kg
|
Outer Carton Size/mm
|
Gross Weight/Kg
|
QTY”/CTN
|
|
DR-SPL300-EGXP
|
13.1
|
590*505*250
|
14.2
|
1PCS/CTN
|
|
DR-SPL400-EGXP
|
16.9
|
680*505*250
|
18.2
|
1PCS/CTN
|
|
DR-SPL500-EGXP
|
4.8
|
790*505*250
|
23.5
|
1PCS/CTN
|
|
DR-SPL600-EGXP
|
22.1
|
830*590*250
|
28.4
|
1PCS/CTN
|
|
DR-SPL800-EGXP
|
30.8
|
830*690*250
|
32.5
|
1PCS/CTN
|
|
DR-SPL1000-EGXP
|
36.5
|
830*790*250
|
39.8
|
1PCS/CTN
|
Q1: Is there a MOQ?
RE: No MOQ, Sample order for testing is welcome.
Q2: What is the Lead time?
RE: Normally 3-5 business days for samples, 10-15 business days for bulk orders.
Q3: Can you do DIAlux Simulation?
RE: We have professional DIAlux team to support you, IES files also can be downloaded on our Website.
Q4: Do you offer mounting accessories?
RE: Yes, please contact us for details.
Q5: Do you offer OEM or ODM?
RE: OEM and ODM service with customers‘ label is available,various choice for the package as below:
1. We can provide you with our present products with your own label;
2. We can modify our products as your request;
3. We can even develop totally new products based on your design;
Q6:How to explain “ZigBee“ ?
RE: A low -power ,low date rate, local area wireless network; ideal for lighting control.
Q7:How to explain “lumen output “ ?
RE: The total lumens emitted of a light source, system, or solution.
