Sport Stadium LED Sport Light 600W SMD5050 With HLG Driver

Price Negotiable

Price: Negotiated

MOQ: 1pcs

Delivery Time: 5-15 Bussiness Day

Brand: DUALRAYS

Product Description

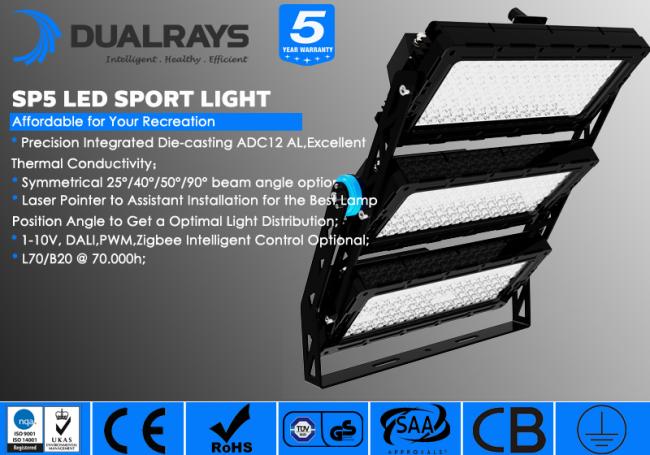

DUALRAYS 600W SP5 Series Sport Stadium LED Sport Light LUMILEDS Chips Meanwell Driver

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;

> Aiming Device: Laser Pointer;
Features:

> Precision Integrated Die-casting ADC12 AL,Excellent Thermal Conductivity;

> High Brightness LUMILEDS LUXEON SMD3030 2D / SMD5050 LEDs, , Meanwell HLG / ELG Driver;

> Built-in Plug and Play Motion Sensor with Compact Structure;

> IP65 / IK08 Protection;

> Symmetrical 25°/40°/50°/90° beam angle optional;

> Surface Spray-paint Finish,Oxidation/Corrosion/Acid Resistant;

> Multi-scale lens to create well-balanced distribution and reduce glare;

> Shield to Reduce the Light Glare;

> 180°Adjustable Supporting Fixture;

> Laser Pointer to Assistant Installation for the Best Lamp Position Angle to Get a Optimal Light Distribution;

> Flange Plate for Each Module for a 5°Adjustment;

> Various intelligent control: 1-10V, DALI,PWM,Zigbee for Option;

> No UV or IR and completely mercury free;

> L70/B20 @ 70.000h;

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-DGXX	DR-SPL600-DGXX	DR-SPL900-DGXX	DR-SPL1200-DGXX	DR-SPL1500-DGXX	DR-SPL1800-DGXX
System Watts/W	300W	600W	900W	1200W	1500W	1800W
System Efficiency/LPW	130~140LPW / 150~160LPW Optional
Lumen Output (Max) /lm	48.000±5%	96.000±5%	144.000±5%	192.000±5%	240.000±5%	288.000±5%
Rated Input Voltage/V	AC200~240V, 50/60Hz
LEDs Light Source	SMD3030 / SMD5050 Optional
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	Symmetrical 25°/40°/50°/90° beam angle optional
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG/HLG
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available
