200W High Power LED Round High Bay Light Dimmable Eco Version Die Casting Aluminum

Price Negotiable

Price: Negotiation

MOQ: 10pcs

Delivery Time: 5-8 work days

Brand: Dualrays HB4.5 UFO High Bay Light

Product Description

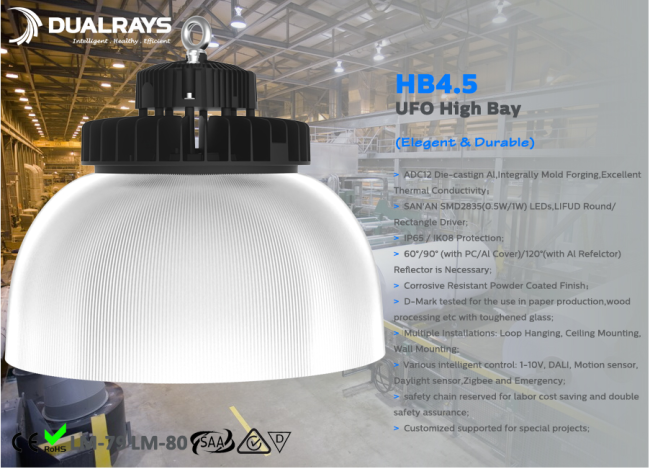

New developed HB4.5 UFO High Bay Light

Quick detail:

> ADC12 Die-castign Al,Integrally Mold Forging,Excellent Thermal Conductivity;

> High Brightness SMD2835 LEDs (1W), DUALRAYS Own-developed Non-isolated Driver;

> IP65 / IK08 Protection;

> 60°/90° /120°beam angle optional;

> Corrosive Resistant Powder Coated Finish;

> D-Mark tested for the use in paper production,wood processing etc with toughened glass;

> Multiple Installations: Loop Hanging, Ceiling Mounting, Wall Mounting;

> Various intelligent control: 1-10V,Motion sensor,Daylight sensor,Zigbee and Emergency;

> No UV or IR and completely mercury free;

> L70/B20 @ 60.000h;

> Customized supported for special projects;

Options:

> Driver: DUALRAYS Own-developed Non-isolated Driver;

> Controls and Dimming: 1-10V, Motion sensor,Daylight sensor,Zigbee and Emergency;

> Reflector : PC reflector / Al reflector;

> Lens : 60°/90°/120° beam angle optional;

> Installation: Loop Hanging, Ceiling Mounting, Wall Mounting;

Model No.	DR-HB100-XGXP	DR-HB150-XGXP	DR-HB200-XGXP
System Watts/W	100W	150W	200W
System Efficiency/LPW	140LPW / 160LPW Optional
Lumen Output/lm	14.000 / 16.000±5%	21.000 / 24.000±5%	28.000 / 32.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD2835 (1W)
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	60°/90°/120° Optional
UGR	<25
Surge Protection	3.75~4KV SPD built in Driver
LED Driver	LIFUD / SOSEN Round/Rectangle Driver
IP Rating	IP65
Dimming(Optional)	0/1-10V/Zigbee
Sensor(Optional)	Motion Sensor,Daylight Sensor
Emergency(Optional)	Available (30W @ 3Hrs for Standard)
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC (Toughened Glass Cover Optional)
Lifespan/hrs	60.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Installation(Optional)	Loop Hanging, Ceiling Mounting, Wall Mounting
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

Advantage:

1.High lumen output 140LPW/160LPW

2.Full Die-casted material.

3.Easy installation,time saving.

4.fast delivery with good quality

5.Customized logo to expand your brands.

6.Widely used in industrial lighting.

> Factories / Warehouses / Supermarket

> Exhibitions / Showrooms / Animal Farm

> Barns and Riding Halls / Logistic Center

> High Rooms and Halls / Stadium / Chemical Plant

> Traditional lamp replacement
