2000W LED Sports Ground Floodlights Waterproof 280,000lm LED Module 500W

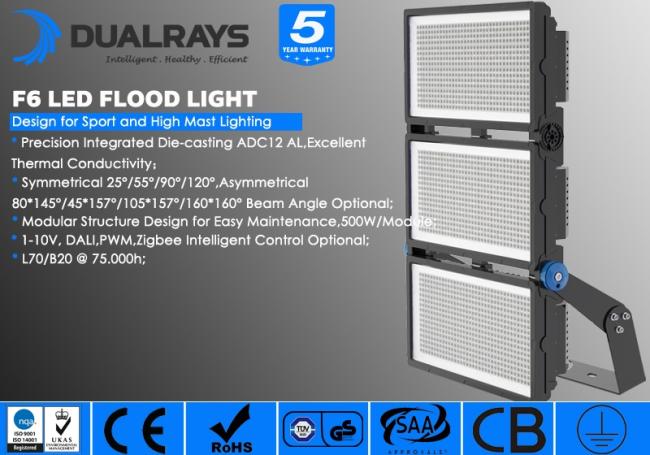

Dualrays F6 Series 2000W LED Sports Ground Floodlight-- Detailed Product Description
> Customized supported for special projects
| Model No. | DR-FL500-FGXX | DR-FL1000-FGXX | DR-FL1500-FGXX | DR-FL2000-FGXX |
| System Watts/W | 500W | 1000W | 1500W | 2000W |
| System Efficiency/LPW | 130~140LPW / 150~160LPW Optional | |||
| Lumen Output/lm (Max) | 80.000±5% | 160.000±5% | 240.000±5% | 240.000±5% |
| Rated Input Voltage/V | AC100~277V, 50/60Hz | |||
| LEDs Light Source | SMD5050 | |||
| SDCM | <5 | |||
| CCT/K | 5000K for Standard (3000K/4000K/5700K/6500K Optional) | |||
| CRI/Ra | >70Ra (>80Ra for Option) | |||
| Power Factor | >0.95 | |||
| THD | <10% | |||
| Beam Angle(Optional) | Symmetrical 25°/55°/90°/120°,Asymmetrical 80*145°/45*157°/105*157°/160*160° Optional | |||
| UGR | <25 | |||
| Surge Protection | 4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional | |||
| LED Driver | SOSEN / Meanwell ELG Optional | |||
| IP Rating | IP66 | |||
| Dimming(Optional) | 1-10V, DALI,PWM,Zigbee for Option | |||
| Safety Protection | Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection | |||
| Start Time | 0.5s | |||
| Protection Class | ClassⅠ | |||
| Finishing Color(Optional) | Black RAL9017(Standard) / White RAL9016 Optional | |||
| Material | Aluminum+PC | |||
| Lifespan/hrs | 75.000 Hrs (Ta=30℃@L70) | |||
| Operation Temp/℃ | 40°C to + 50°C(-40°F to 122°F) | |||
| Storage Temp/℃ | - 40°C to + 65°C(-40°F to 149°F) | |||
| Switching Cycles | 100,000 Times | |||
| Certificate | CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available | |||
Packaging Information:
| Model No. | Power | Outer Carton Size(MM) | G.W(KG) | Quantity/CTN |
| DR-FL050-DGXP | 50W | 340*110*190 | 2.8 | 1PCS |
| DR-FL100-DGXP | 100W | 340*110*250 | 4.3 | 1PCS |
| DR-FL150-DGXP | 150W | 340*110*330 | 5.2 | 1PCS |
| DR-FL200-DGXP | 200W | 340*120*400 | 6.7 | 1PCS |
| DR-FL250-DGXP | 250W | 340*120*480 | 7.8 | 1PCS |
| DR-FL300-DGXP | 300W | 340*120*560 | 9.2 | 1PCS |
| DR-FL400-DGXP | 400W | 600*140*400 | 12.6 | 1PCS |
| DR-FL500-DGXP | 500W | 600*140*480 | 13.7 | 1PCS |
| DR-FL600-DGXP | 600W | 600*140*550 | 15.7 | 1PCS |
Shipment:
Note: For small order,express will be best.And for bulk order,ship by sea or train(Europe destination) is the best,but take much
time.For urgent orders,we suggest via air to airport plus our ship partner send to your door.
