095000 8901 Denso Injection Pump 6HK1 Diesel Fuel Injectors 8900 8903 8904

ERIKC 6HK1 095000-8902 Complete Injector 095000-8901 (8-98151837-1) Denso 8900 8903 8904 Diesel Fuel Injector for Isuzu

For Car:

Isuzu N-Series 4HK1 5.2L
Isuzu N-Series 4JJ1 3.0L
Isuzu N-Series 6HK1 7.8L
isuzu jcb 4HK - 6HK
Isuzu N-Series 5.2

Injector Introduction

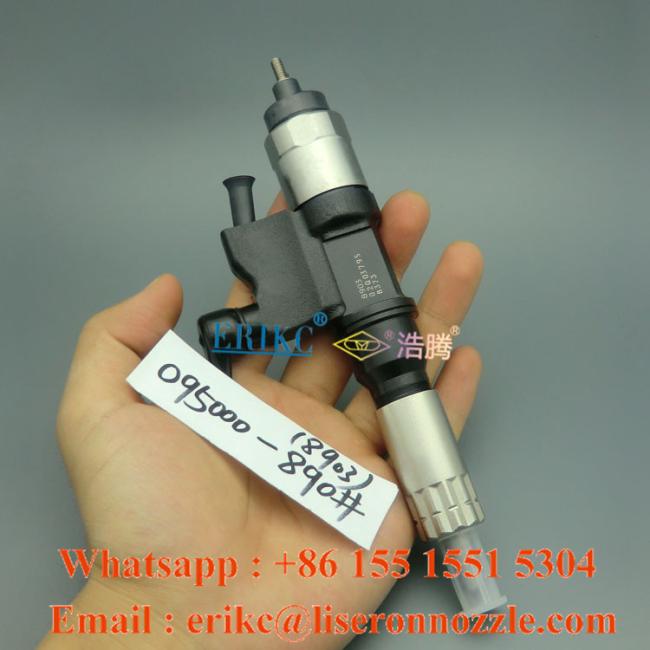

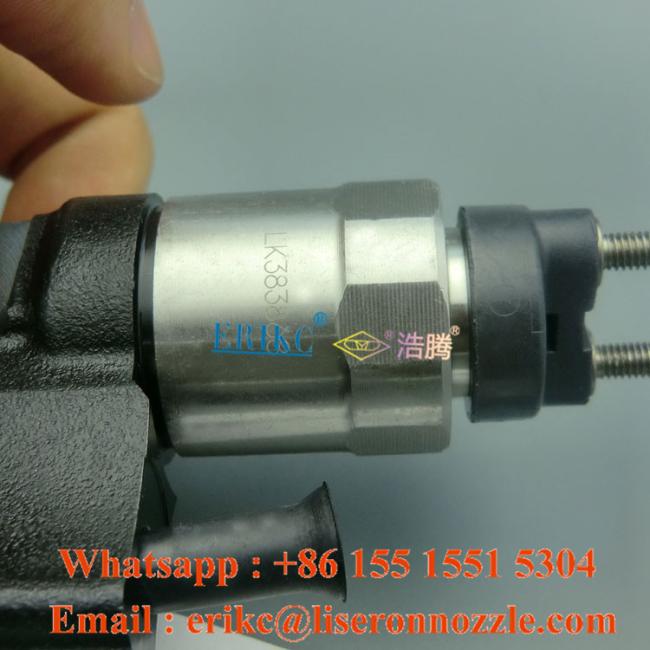

^-^ ---------Injector Picture

denso common rail direct injection injector

^-^ ---------ERIKC hot product

Mainly producing and selling CR injectors, nozzles, control valves, valve bonnets, CRIN repair kits, injector adjusting shims, common rail injector testers and repair tools. Besides our own brand "HAOTENG" and "DYD", we are also the sole agent of UK ERIKC (the former OEM factory of famous international brand common rail Parts).
​

FAQ: Most injectors fall into two categories: High or Low Impedance

ERIKC Answer: High Impedance.

These have a typical coil resistance of 12 – 16 ohms and are the most commonly used. Drive circuitry for this type of injector is simple and sometimes referred to as a saturated driver circuit.

Low Impedance.

Low Impedance Injectors has normally a coil resistance of 4 ohms or less and is typically found in larger sized or high performance injectors. Driver circuitry for these types is called a Peak - Hold type and is more complex and costs more than the saturated type.

In a Peak - Hold system, the driver circuit allows a high current for a short time to help turn the injector on quickly. The current is then reduced to a lesser value to keep the injector open. Peak current may be 4 amps to open the injector. Once open, the current might be reduced to as little as 0.75 amps.

With the lower coil resistance, the internal spring pressure that holds the pintle closed can be increased to shut the injector quicker. This allows both faster opening and closing times and makes tuning large injectors easier.

Peak – Hold systems reduce the power requirements to the injector coil thus keeping the coils from overheating.
