0.25cm Grid Polyester Conductive Yarn ESD Clothing
0.25cm Grid 100% Polyester Conductive Yarn Good-Durability Strict Quality ESD Clothing
Features:
Wearing comfort: choose fabrics and styles according to different requirements
Durability: Under correct maintenance, it has good durability as measured by washing times and wearing time.
Comfort: Use the most suitable fabric and the best style according to the different requirements of specific applications.
Commonly used fabrics: mainly polyester, embedded conductive yarn: 0.5cm grid, 0.5cm stripes, 0.25cm grid
Anti-static fabric parameter table:
| ITEM | T/C THICK | T/C THIN | Knitting Conductive |
| COMPOSITION | T/C 65%/35% | T/C 65%/35% | Polyester 100% |
| STRUCTURE | 2/1 twill 1.5mm interval of conductive filament | /1 twill 1.5mm interval of conductive filament | Warp-knitted |
| WEIGHT | 240g/m2 | 140g/m2 | 100g/m2 |
| THICKNESS | 0.45mm | 0.28mm | 0.30mm |
| WIDTH | 150cm | 150cm | 170cm |
| DENSITY |
Warp 110 Weft 56 |
Warp 110 Weft 56 |
Weft 32 |
| YARNTYPE |
Warp T/C J34s/2 Weft T/C J34s/2 |
Warp T/C J34s Weft T/C J34s |
68D |
| SURFACE RESISTIVITY | 108~1010Ω/unit | 108~1010Ω/unit | 108~1010Ω/unit |
| ELECTRICATION POTENTIAL | 4.24µc/m2 | 4.15µc/m2 | 0.1µc/m2 |
| DECAY TIME | 2.0s | 2.0c | 0.1c |
| AIR PERMEABILITY | 45c.c/cm2/sec | 150c.c/cm2/sec | 300c.c/cm2/sec |
| TENSILE STRENGTH |
Warp 770N Weft 1720N |
Warp 770N Weft 1720N |
/ |
| TEAR STRENGTH |
Warp 3970gf Weft5310gf |
Warp 2550gf Weft 3300gf |
/ |
| COLOR RETENTION | 4~5 | ||
Application areas:
Semiconductors, optoelectronic displays, microelectronics, sensitive electronic components, military industry, medical treatment, biological engineering, pharmaceuticals, food processing, etc.
Quality Control:
We have carried out strict quality control on the fabric production from the initial selection of yarns and conductive filaments to the final textile dyeing and finishing to effectively guarantee the various functionalities of the fabric.
Our professional production team has many years of production experience, from marking, cutting, sewing, ironing, etc., are strictly monitored by professionals.

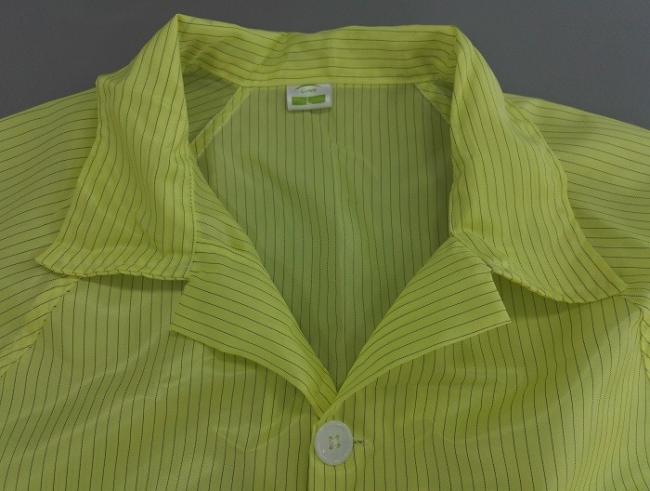

Picture:
