Small Resistance Metal Plank Washable Air Filter Anti Acid For Spray Wax Room
Small Resistance Washable Anti-Acid Mental Plank Filter For The Spray-Wax Room
Product Description:

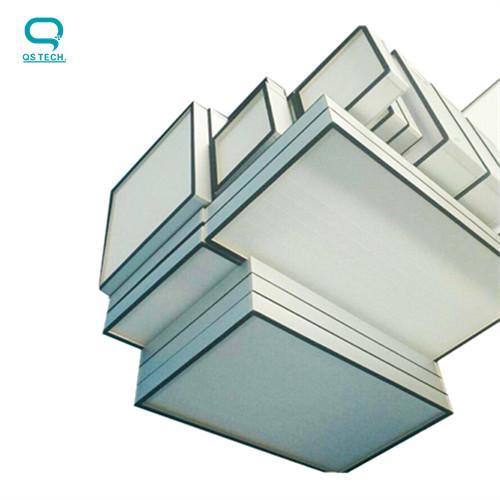

High efficiency filter can be widely used in optical electronic, LED liquid crystal manufacturing, bio-pharmaceuticals, precision instruments, food and beverage, pcb printing and other industries dust-free purification plant air conditioning terminal air supply.
Main Features:
1) Ultra-fine fiber filter paper is used as the filter media. The outer frame is made of aluminum alloy material, and stainless steel can also be customized as the outer frame material.
2) This high efficiency filter is economical and practical, widely used in food, electronics, semiconductor, pharmaceutical and other industries.
3) The large surface area of the filter can increase the filter area and improve the filtration efficiency.
Specification:
| Frame material | Galvanized sheet;stainless stell; MDF; Anodized aluminium |
| Medium | Micro glassfiber |
| Max. Working temperature | 80℃,180℃,250℃,300℃ |
| Max. Working Rel. humidity | 100% |
Specification Size:
| Type | Boundary Dimension(mm) | Effective Filtration Area | Air Volume | pressure drop |
| XWB/H14-6601 | 305*305*66 | 2.7 | 245 | 145 |
| XWB/H14-6602 | 457*457*66 | 6.2 | 610 | 140 |
| XWB/H14-6603 | 305*610*66 | 5.5 | 500 | 140 |
| XWB/H14-6604 | 457*610*66 | 8.2 | 820 | 140 |
| XWB/H14-6605 | 610*610*66 | 11.0 | 1000 | 140 |
| XWB/H14-6606 | 610*915*66 | 16.5 | 1500 | 140 |
| XWB/H14-6607 | 610*1220*66 | 22.0 | 2000 | 140 |
| XWB/H14-6608 | 610*1524*66 | 27.5 | 2500 | 140 |
| XWB/H14-6609 | 762*305*66 | 6.9 | 630 | 140 |
| XWB/H14-6610 | 762*610*66 | 13.7 | 1250 | 140 |
| XWB/H14-6611 | 762*762*66 | 17.1 | 1560 | 140 |
| XWB/H14-6612 | 762*1220*66 | 27.5 | 2500 | 140 |
| XWB/H14-6613 | 915*915*66 | 24.8 | 2500 | 140 |
| XWB/H14-6614 | 915*1220*66 | 33.0 | 3010 | 140 |
| XWB/H14-8001 | 305*305*80 | 2.9 | 245 | 105 |
| XWB/H14-8002 | 457*457*80 | 6.7 | 610 | 100 |
| XWB/H14-8003 | 305*610*80 | 6.0 | 500 | 100 |
| XWB/H14-8004 | 457*610*80 | 9.0 | 820 | 100 |
| XWB/H14-8005 | 610*610*80 | 12.0 | 1000 | 100 |
| XWB/H14-8006 | 610*915*80 | 18.0 | 1500 | 100 |
| XWB/H14-8007 | 610*1220*80 | 24.0 | 2000 | 100 |
| XWB/H14-8008 | 610*1524*80 | 30.0 | 2500 | 100 |
| XWB/H14-8009 | 762*305*80 | 7.5 | 630 | 100 |
| XWB/H14-8010 | 762*610*80 | 14.9 | 1250 | 100 |
| XWB/H14-8011 | 762*762*80 | 18.6 | 1560 | 100 |
| XWB/H14-8012 | 762*1220*80 | 30.0 | 2500 | 100 |
| XWB/H14-8013 | 915*915*80 | 27.0 | 2500 | 100 |
| XWB/H14-8014 | 915*1220*80 | 36.0 | 3010 | 100 |
| XWB/H14-9001 | 305*305*90 | 3.4 | 245 | 95 |
| XWB/H14-9002 | 457*457*90 | 7.8 | 610 | 90 |
| XWB/H14-9003 | 305*610*90 | 7.0 | 500 | 90 |
| XWB/H14-9004 | 457*610*90 | 10.4 | 820 | 90 |
| XWB/H14-9005 | 610*610*90 | 14.0 | 1000 | 90 |
| XWB/H14-9006 | 610*915*90 | 21.0 | 1500 | 90 |
| XWB/H14-9007 | 610*1220*90 | 28.0 | 2000 | 90 |
| XWB/H14-9008 | 610*1524*90 | 35.0 | 2500 | 90 |
| XWB/H14-9009 | 762*305*90 | 8.8 | 630 | 90 |
| XWB/H14-9010 | 762*610*90 | 17.4 | 1250 | 90 |
| XWB/H14-9011 | 762*762*90 | 21.7 | 1560 | 90 |
| XWB/H14-9012 | 762*1220*90 | 35.0 | 2500 | 90 |
| XWB/H14-9013 | 915*915*90 | 31.5 | 2500 | 90 |
| XWB/H14-9014 | 915*1220*90 | 42.0 | 3010 | 90 |
| XWB/H14-11001 | 305*305*110 | 4.4 | 245 | 75 |
| XWB/H14-11002 | 457*457*110 | 9.9 | 610 | 70 |
| XWB/H14-11003 | 305*610*110 | 8.8 | 500 | 70 |
| XWB/H14-11004 | 457*610*110 | 13.2 | 820 | 70 |
| XWB/H14-11005 | 610*610*110 | 17.7 | 1000 | 70 |
| XWB/H14-11006 | 610*915*110 | 26.4 | 1500 | 70 |
| XWB/H14-11007 | 610*1220*110 | 35.2 | 2000 | 70 |
| XWB/H14-11008 | 610*1524*110 | 43.9 | 2500 | 70 |
| XWB/H14-11009 | 762*305*110 | 11.2 | 630 | 70 |
| XWB/H14-110010 | 762*610*110 | 22.1 | 1250 | 70 |
| XWB/H14-110011 | 762*762*110 | 27.6 | 1560 | 70 |
| XWB/H14-110012 | 762*1220*110 | 44.1 | 2500 | 70 |
| XWB/H14-110013 | 915*915*110 | 39.8 | 2500 | 70 |
| XWB/H14-110014 | 915*1220*110 | 53.0 | 3010 | 70 |
