Wave Solder Infeed/Outfeed PCB Conveyor Belt Assmbly Line With Cooling Fans

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 5 days

Brand: CNSMT

Product Description

Application

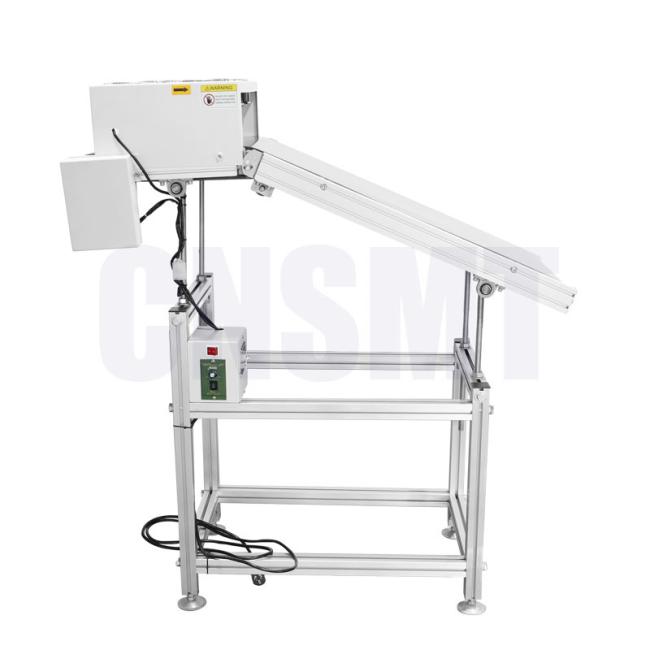

The Wave Solder Outfeed Conveyor is used to unload PCBs from the inclined conveyors of wave solder and to then lower the soldered boards to a standard conveyor height.

Outstanding Features
1. This wave solder outfeed conveyor is intended for discharging PCB boards that have undergone wave soldering process.
2. Both ends of this wave solder unloader conveyor can be adjusted by lead screw.
3. An anti-slip belt is applied for stable transfer. Plus, the conveyor speed can be reset.

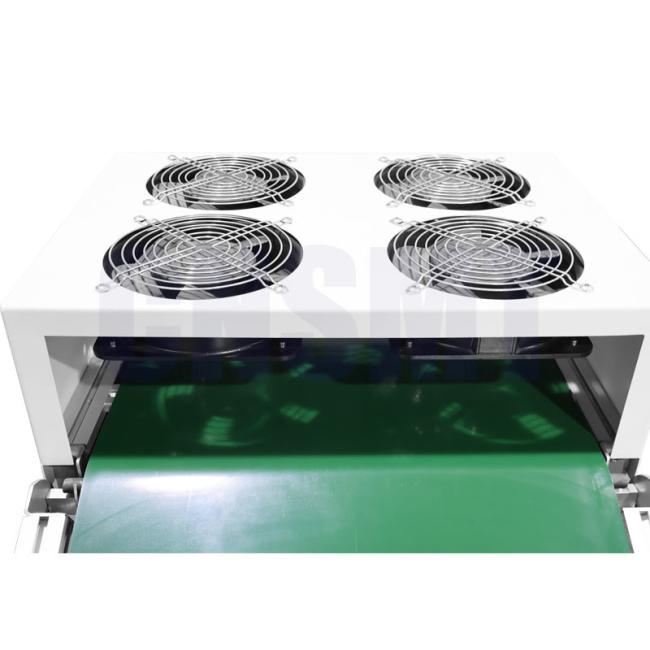

4. Fans are installed above the belt to expedite the cooling of circuit boards.

Technical Parameters

Items	Specifications
Conveyor motor	220V, DPG, 40W
Conveyor width	0-300mm
Conveyor speed	0-1.8 meters/minute, adjustable

Our Wave solder cooling unloader belt conveyor is a wave unloading system that accepts PCBs from the wave (on edge rail) at an incline angle and then re-angles the PCB to a decline conveyor to return the PCB back to SMEMA height. The standard version uses 3mm ESD edge belts to transfer PCBs. Our HD series is for pallet transfer and uses our heavy duty ESD timing belts. Pallets are still transferred on 3mm edge but the belts have a greater durability for heavier weighted pallets.

Detail:

Brand Name	CNSMT
Place of Origin	China
Certification	CE
Minimum Order Quantity	1
Delivery Time	5days
Price	Negotiation
Color	Computer Grey
Packaging Details	Wooden Box
Type	Automatic

Customized Services for SMT Line Machine:

- Customized Branding with CNSMT logo or branding on the machine

- Different Models available for different production needs

- Optional CE certification for international standards compliance

- Minimum order quantity of 1 unit to cater to small and medium scale production needs

- Competitive pricing with flexible negotiation options

- Secure packaging in wooden boxes for safe transportation

- Fast delivery within 5 days to meet urgent production requirements

- High supply ability of 100 units to meet large scale production demands

- Available in a sleek Computer Grey color to match modern production facilities

- Made in China, ensuring high quality and cost-effective production

- Flexible delivery terms including EXW, FOB, and CIF to suit different shipping preferences

- Fully automatic operation for efficient and time-saving production process

- Low power consumption of 600W for energy efficiency

- Optional PCB mini loader without magazine for more compact and space-saving design
