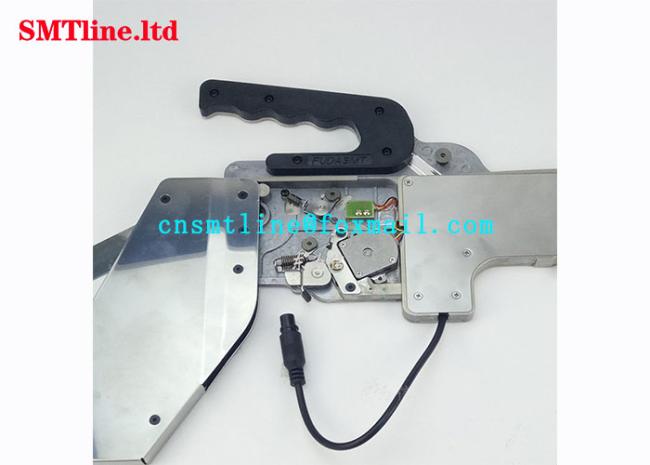

8mm Single Card Electric SMT Feeder Pneumatic Change Yamaha Yv / Yg Series

Yamaha SMT yv/yg series 8mm12/16/24MM single card electric feeder pneumatic change electric feeder


Quick Detail

YAMAHA YV100X YV100XG YG100 YG200 YG12 Electric feeder replace pnematic feeder

more stable and less lost matirel

used for all yamaha pnematic plate

Feature


Packaging details:foam and carton
Delivery time:Within 1~3 working days
Shipment
1. We ship to world wide
2. Most orders ship within 1~7days after payment
3. Item shipped from china mainland using airmail by EMS, UPS, DHL, TNT or Hong Kong post, we accept the customer’s shipping request
4.100%T/T before shipment, after we shipped the goods, we will email you the shipping information

KW1-M1740-020 TAPE GUIDE UNIT 1
KW1-M174S-000 TAPE GUIDE ASSY 1
KW1-M114A-000 HAND LEVER ASSY 1
1 KW1-M1177-000 MAIN ARM 1
2
3 KW1-M1343-010 SHUTTER PLATE 1
4 KW1-M1144-010 SHUTTER GUIDE PIN 2
5 KW1-M114N-000 GUIDE AXIS 1
6 KW1-M1345-010 LEAF SPRING 1
7 KW1-M116K-000 LEVER AXIS 1
8
9
10
11
12 K87-M111C-000 PLANE WASHER 2
13 K87-M1181-000 ROD CONNECT 1
14
15
16 K87-M1184-000 CONNECT PIN 1
17 KW1-M1185-001 MULTI CYLINDER 1
18 KW1-M111L-001 BARB CONNECTOR STRAIGHT 2
19 K87-M111M-000 GASKET 2
20 KW1-M11B1-000 AIR HOSE(70mm) 1
21 K87-M111P-000 SCREW,FLAT HEAD+ 2
22 K87-M11BF-000 SCREW,FLAT HEAD+ 2
23 KW1-M11B6-000 S.W.SCREW,CAPBOLT HEAD 2
24 K87-M11B9-000 CIRCLIP E

KW1-M1131-102 CLAMP LEVER UNIT 1
KW1-M1132-001 CLAMP LEVER ASSY 1
KW1-M113A-000 CLANK ARM ASSY 1
1
2
3
4 K87-M113D-001 ARM 2
5
6 K87-M113M-000 AXIS PIN 1
7 K87-M113L-100 CLAMP LEVER AXIS 1
8
9 K87-M113E-000 HINGE PIN 2 1
10 K87-M113H-000 PUSH PIN (L=10) 1
11 K87-M111V-000 SCREW,SET 1
12 K87-M111R-000 SCREW,SET 1
13 K87-M11D7-000 CIRCLIP E
