CNSMT-H1200 Aluminium LED pcb cutting Machine 1200mm LED Light Strip Slitting Machine

CNSMT-H1200 Aluminium LED pcb cutting Machine 1200mm LED Light Strip Slitting Machine

main feature:

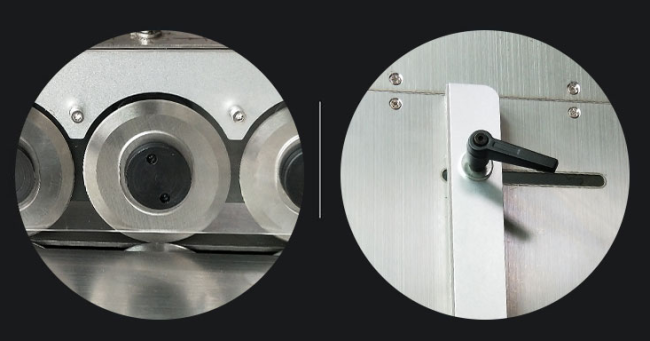

1. Six-knife splitter adopts a unique cutting method. The splitter is cut by six blades, and the upper and lower two are set to form a cutting unit. There are three groups of A / B / C. The entire cutting process is divided into three stages. The group A blade first cuts the circuit board 40%, and then the blade B is rolled again from the groove cut by the blade A, and the cutting is completed again 40%. 20% after cutting by group C blades and trimming. Because the amount of each cut is small, the stress generated during the cutting process is reduced by more than 80% compared with the traditional one-time cutting method. The edge of the divided circuit board Flat and smooth, the surface of the board is very flat, not twisted or warped. It is a machine on the market that can guarantee the deformation of the aluminum plate after cutting.
2. The six-knife splitter has a smooth cutting process due to repeated cutting, which greatly improves the positioning ability of the V-CUT slot. Even if the V-CUT slot is very shallow, the V-CUT slot will not appear from the guide. The situation where the knife jumps out, to avoid bad.
3. Due to the small cutting force of the blade and the use of high-speed steel materials imported from Sweden, the durability of the blade is greatly improved. The blade life can be more than one year when the aluminum substrate is divided.
4. Sub-board length: unlimited
5. Working thickness: 0.5-3mm
6. It is suitable for dividing LED substrates, copper substrates, light-emitting tubes, light strip boards, glass soldering boards, FR1-4, and display boards. Material of the circuit board to be cut: aluminum substrate, copper substrate, FR1-4, glass fiber board
7. Feeding speed: 0-700mm / second (the market is generally 0-300mm / second)
8. Blade material: Sweden SKH7 HSS
9. Weight: 40kg
10. Power supply: 220V / 50HZ, 90W
11. Machine size after loading and unloading tray is installed: 2300 * 370 * 240MM
12. Storage temperature: -20-50 degrees



The parts around the V-CUT groove are restricted: the width of the right side of the V-cut groove is unlimited, and the left side is not greater than 120mm
