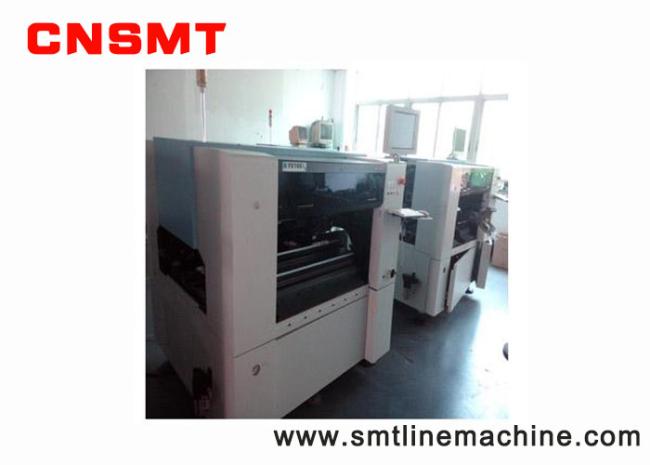

8mm Braiding 3KVA SMT Placement Equipment YAMAHA YV100XG
Pick Out And Buy Material Benefit Smt Mounter--YAMAHA YV100XG
Yamaha mounter yv100xg, which is a mainstream model with high recognition in the market, has stable state, stable precision, Chinese operation interface and wide application.
Yamaha Mounter yv100xg has low failure, many accessories and high market share. It is also suitable for the production line of Panasonic high-speed mounter.
Yamaha Mounter yv100xg machine has good stability, good state and is suitable for small batch production of many varieties.
CNSMT mainly introduces the second-hand yv100xg Yamaha Mounter from Japan and other overseas countries. The YV100XG machine has the advantages of short service time, good maintenance, good production status and obvious price advantage.
Our company specializes in the sale and leasing of Mounter, plug-in machine, SMT peripheral equipment and accessories .
YAMAHA YV100XG SPECIFICATION:
1. High speed and high precision multifunctional modular mounter
2.0.18 seconds / chip ultra high speed mounting (optimal condition) 16200cph (granules / hour)
3. In the ipc9850 state, the placement speed is as high as 16200cph (equivalent to 0.22s/chip)
4. Mount 0603 element, the whole process precision is as high as ± 50 μ m, and the whole process repetition precision is as high as ± 30 μ M
5. Wide range of application, from 0201 (British) micro components to 31mmqfp large components
6. Use two high resolution multi vision digital cameras
7. Continuous identification of all solder balls for CSP / BGA components is included to judge whether the defects of solder balls are good or not
8. Optional Yamaha patented flight adapter can effectively reduce the idle loss of the machine
9. The best choice for universal popularization
10. The y-axis is driven by high-power servo and high-rigid screw rod at both ends of the left and right sides. This newly developed fully fixed dual drive technology improves acceleration and drives through coordination and synchronization of both ends, improves acceleration function and shortens positioning time.
| Base plate size M type: | L460 * W335 (max) - L50 * W50 (min) |
| L type: | L460 * w440 (max) - L50 * W50 (min) |
| Mounting accuracy absolute accuracy: | (μ + 3 σ): ± 0.05mm/chip, ± 0.05mm/qfp |
| Mounting speed: | 0.18 s / chip 1.7 s / QFP, 1608/ CHIP:16200CPH |
| Mounting element: | 0603-31mm element, SOP / SOJ / QFP / connector / PLCC / CSP / BGA |
| Overall dimension: | L1650 * W1408 * H1900 |
| Main engine weight: | 1600kg |
Keyowrds:
| yamaha smt machine |
| yamaha m20 pick and place |
| yamaha smt mounter |
| yamaha smt pick and place machine |
| yamaha yv100x |
| yamaha ys12 |
| yamaha chip mounter |
| yamaha pick and place machine |
| yamaha pick and place machine price |
| yv100x |
| ys24 yamaha |
| yamaha ysm10 |
| ysm10 |
| yamaha ysm20 |
| ysm20 |
| yamaha ysm20r |
| ysm20 yamaha |
| ysm20r yamaha |
| yamaha ysm20 price |
| yamaha ysm20 specification |
| yamaha ysm20 manual |
| yamaha ysm40 |
| ys12f |
| yamaha ys12f |
| yamaha yg12 |
| yamaha ys100 |
| yamaha yg100 |
| yamaha yg200 |
| yamaha yv100ii |
| yv100xg |
| yamaha ys24x |
| yamaha smt |
Why is our company worth your choice
In CNSMT ,we have Yamaha senior engineer team, rich maintenance experience, professional to provide Yamaha series Mounter hardware and software maintenance and troubleshooting.
The maintenance and replacement services mainly include servo board servo board, system board system board, driver board driver board, vision board visual board, I / O head ass IO board, camera, display touch screen, servo motor, etc.
our company charges reasonable, the warehouse accessories are sufficient, the maintenance cycle is short, and the one-time repair success rate is high.
.
