Automatic Desiccant Filler LJ2020A Type 220 Voltage 1600*1300*3600 Mm Meas
Desiccant Automatic Filling Machine For Insulating Glass Unit With Adjust Device For Big Frame Can Saving Desiccant
Main features
1.The required geometrical shapes are made after aluminum space-strips are put into molecular sieve, such as square, rectangular, arch, semicircle and quadrangle circular arch, and installed between two layers of glasses and may keep dry between two glasses after sealing, not leading to condensation.
2.With this machine, both bended and corner-connected spacers are available.
3.The machine is controled by a PLC system.
4.This machine can adjust the filling height according to the spacer size.
Main technical parameter
| Filling aluminum frame’s maximum size | 2000mm*2000mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |

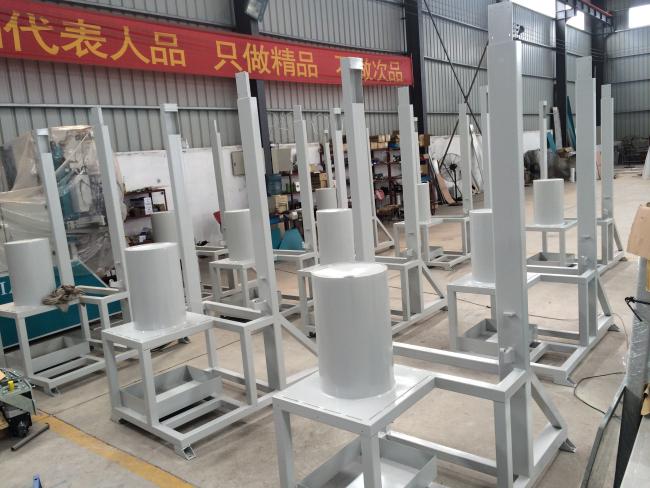

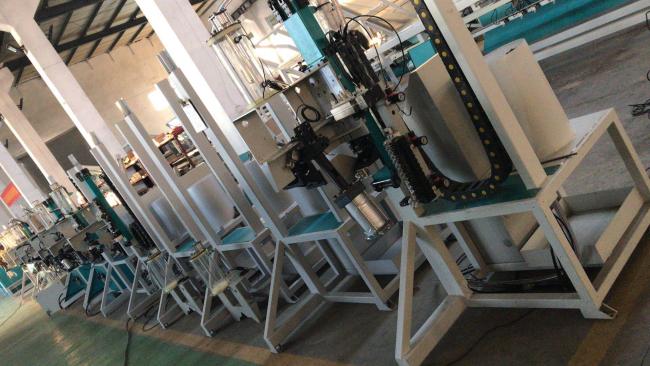

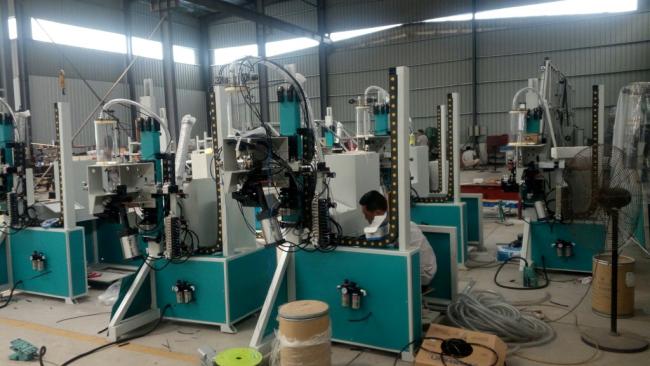

Machine details
