4 Meter Glass Suction Lifting Devices 1000 Kgs Max Bearing Capacity Easy Operation
Price:
Negotiable
MOQ:
1
Delivery Time:
30 days
Brand:
Lijiang
Product Description

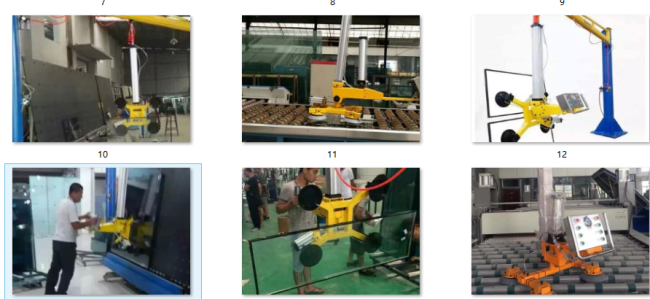

4 Meter Glass Suction Lifting Devices 1000 Kgs Max Bearing Capacity Easy Operation
Machine feature:
Stable for moving insulating glass /tempered glass/glass curtain wall, on -site construction of glass deep processing and solar photo voltaic glass
It can select DC changing vacuum pump,equipped with battery device.
Maximum bearing capacity is 1000kgs Max. Glass size can reach to 8m
Suitable for high-temperature glass
Main technical parameters
|
Max load
|
500KG
|
|
Around rotary scope
|
90°
|
|
Column height
|
3400mm or 3900mm
|
|
Track length
|
4m
|
|
Lifting height
|
1.4m
|
|
Number of sucker
|
4
|
|
Moving mode
|
Manual
|
|
Operation mode
|
Manual switch valve
|
|
Air pressure
|
0.5mpa-0.8mpa
|
