Stainless Steel Desiccant Filling Machine , Double Glazing Glass Machine 1.8 Kw
Automatic Desiccant Filling Machine For Hollow Glass Making With Adjust Device For Big Frame For Arc Angle Frame
APPLICATION
Desiccant Filling Machine can automatically drilling holes in the spacer frames, filling desiccant and sealant. Desiccant Filling Machine control system used Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant. Desiccant Filling Machine improves quality of insulating glass.
*Germany Simens PLC control system
*Both bended and corner-connected spacers are available

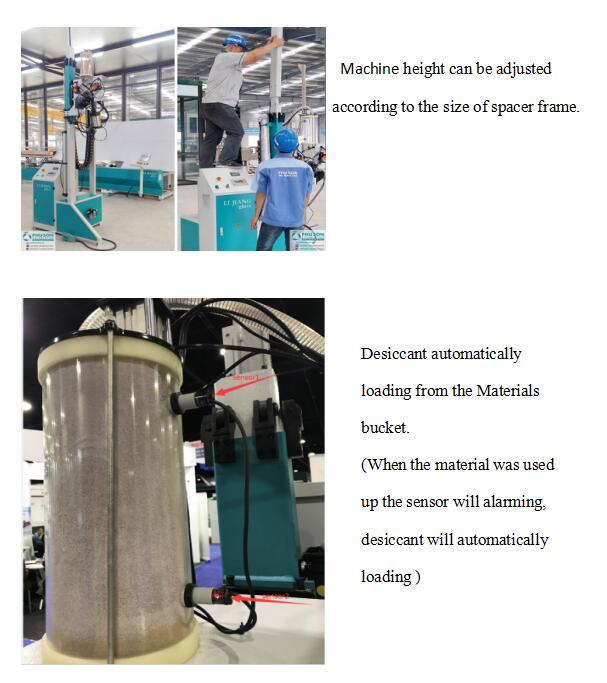

*Adjustable filling height according to the spacer size
*Automatic feeding material and plugging the drilled hole
*Preset function for the filling speed
* Rectangle frame and round shaped frame are all available
* The filling hole was in back of frame not side .
| Main parameter |
Desiccant filling machine Type LJGZ 2020 Filling aluminum frame’s maximum size:2000mm*2000mm Filling aluminum frame’s minimal size:300mm*250mm Article aluminum specifications:6A-27A Air source:≥0.65MPa Power supply and power consumption:AC220V 50Hz 1.8KW Molecular sieve diameter needed:0.5-0.9mm Dimension:1300mm*1100mm*3650mm |

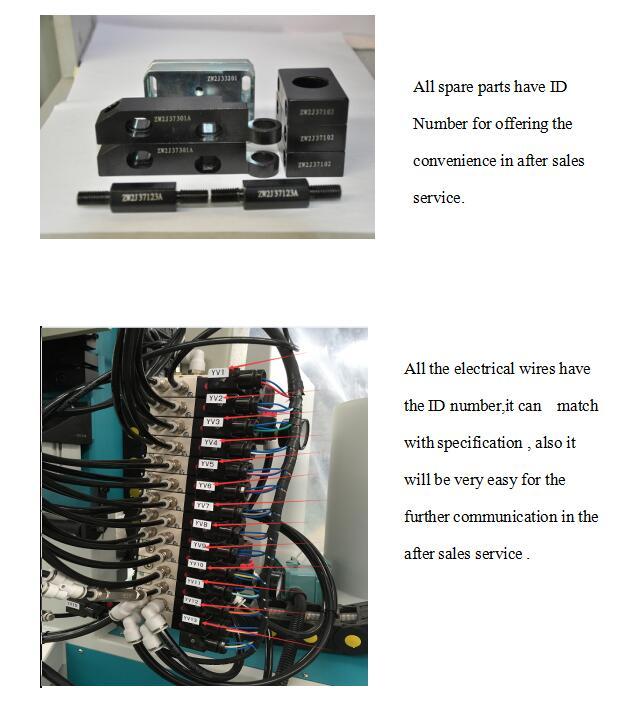

Machine details
