High Power Insulating Glass Filling Machine 300*250 Mm Aluminum Frame Size
Insulating Glass Machine Desiccant Automatic Filling Machine With Adjust Device For Big Frame Can Save Desiccant
Main Features
1.The desiccant automatic filling machine adopts PLC control system with touch screen interface for easy operation.
2.Exclusive and sophisticated feeding device,the storage tank can feed desiccant material as needed.
3. Automatically seal the opening of molecular sieve
4. The filling height can be adjusted according to the spacer size.
5. Can filling circular arc frame (optional)
6.It is mainly used to fill both corner-connected spacer frame and spacer frame formed by the automatic spacer bending machine.
Main Technical Parameter
| Diameter of the desiccant |
0.5-0.9mm |
| Width of the spacer bar | 5.5-24mm |
| Max processable size | 2400*2400mm |
| Air Pressure | 0.6~0.8MPA |
| Power Supply | 220V 50HZ 1KW |
| Dimension |
1300mm*1100mm*3650mm |

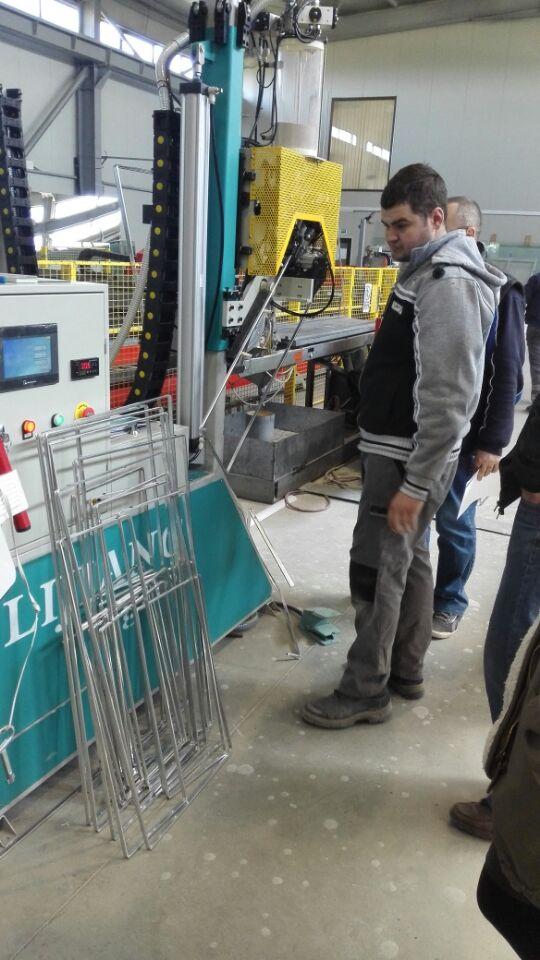

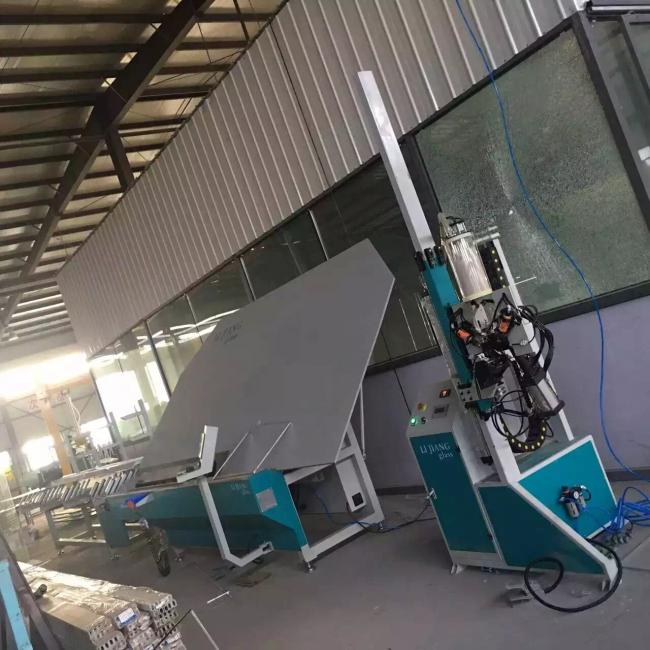

Factory Display
After-Sales Service
1.Training how to install and use the machine.
2.Engineers are available to service machinery in oversea market.
