Intelligent Insulating Glass Double Glazing Manufacturing Equipment Automatic Production
Li Jiang Vertical Automatic Glass Production Line
Main Advantages Of Equipment
• using siemens or omron control system,stable performance
• plc control system,touch screen interfacial design
• automatic identification coated glass and low-e glass film layer
• the water tank automatically controls the water temperature
• european anechoic system and stainless steel drying system
• embedded low-light detection mode
• folding except for the cleaning part,and convenient for equipment transportation
• high level material is more durable
Main Technical Parameter
| Max.glass size | 2500*3500mm |
| Min.glass size | 300*500mm |
| Glass thickness | 3-12mm |
| Insulating glass thickness | 40mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs |
| Water supply | water consumption:0.5t/h conductivity:<=50µs/cm |
| Air supply | flow:0.8m^3/min |
| Air pressure | >=0.8mpa |
| Dimension | 18500*3500*3600mm |
Detailed Picture Display

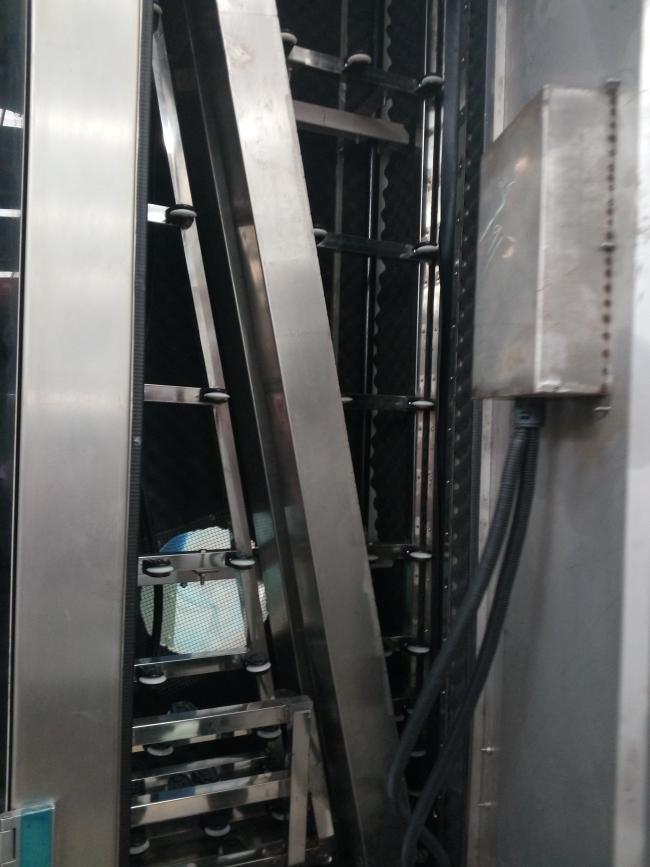

• Glass Transfer Part Display
• Glass Cleaning Part Detail Drawing
• Glass Dry Section Display
• Insulating Glass Pressing Part Shows
Company Profile
Jinan Lijiang Automatic Equipment Co.,Ltd. is located in the beautiful spring city---jinan. it is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. as it is close to beijing-shanghai high-speed rail, the transportation is very convenient.
the company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and deveopment centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. so that our company has become an vital domestic and foreign glass processing equipment supplier.
with the rapid development of insulating glass industry, lijiang is looking forward to working with you for win-win situation and jointly creating a new world of china!
