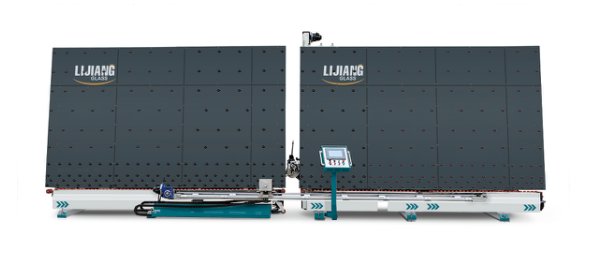

Vertical Insulating Glass Sealing RobotLJTJ2540
Application

• Min & Max glass sizes can be optional
• Adopt 8 servo motors
• Adopt Japan ANCHUAN servo control system with stable performance
• Automatically measure glass size, glue depth and glue speed with linear adjustment
• Adopt timing belt to keep smooth convey with accurate position
• Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
• The glass corners are full without air bubbles, smooth surface, no need to
• Full automatic and high-efficiency machine
• New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
• Automatically repair glass corners with beautiful surface
• Smooth convey without scratch and pollution
• Single-function parts are equipped with manual functions, easy adjustment

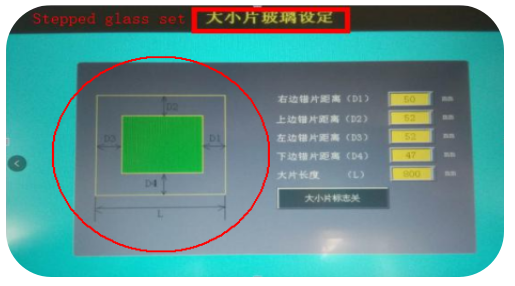

• Shaped IG units (Optional)
• Stepped IG units with four sides (Optional)
• Double and Triple IG units


Detail Images

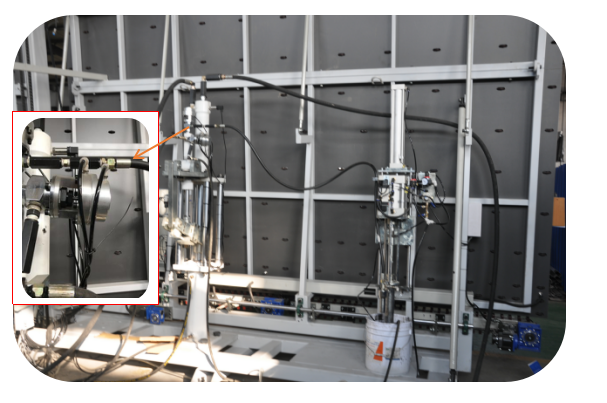

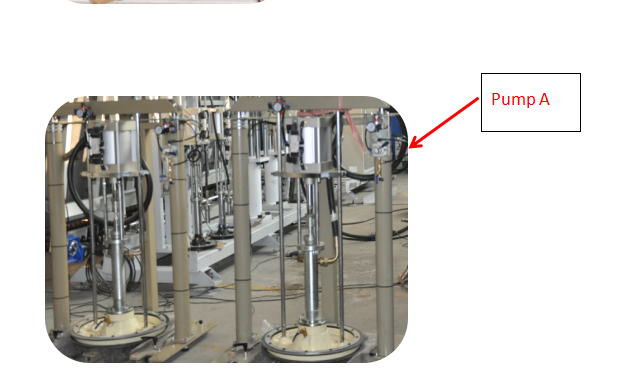

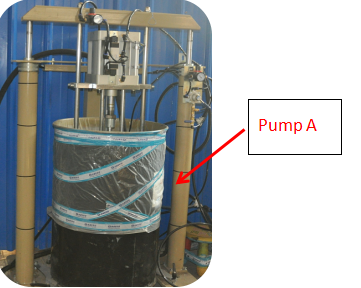

One Set of Pump A & Pump
Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.

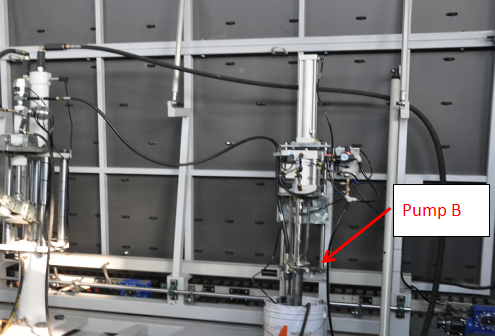

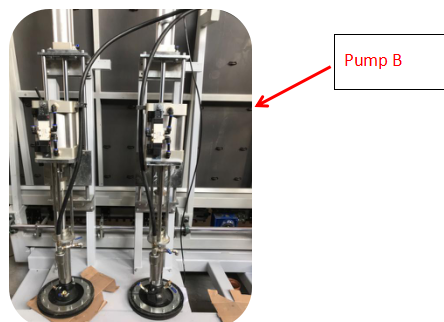

• Two Sets of Pump A & Pump B

Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.


Back Glue Device
When the pressure increasing, more Glue B will flow back automatically, saving materials.

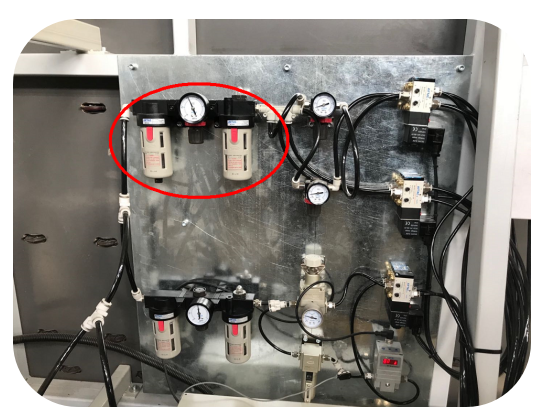

• Dyad Body Device

The dyad body device has two functions. The left one is used for filtering impurities and moisture when filling gas into , then the right one plays the role of lubrication.

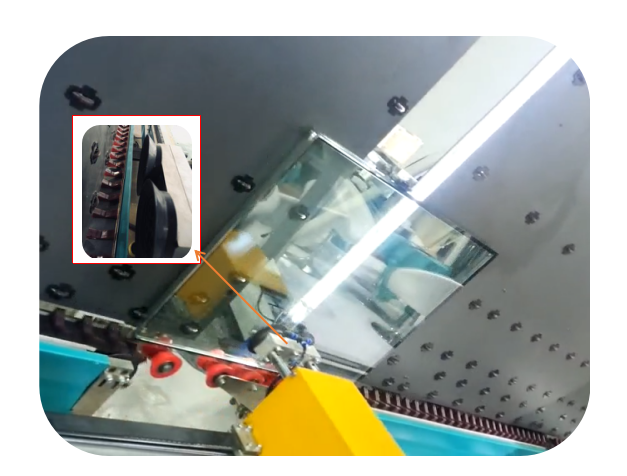

• Two Suckers Device

Adopting two suckers for preventing to move glass during sealing.

• The Device of Sealing Part

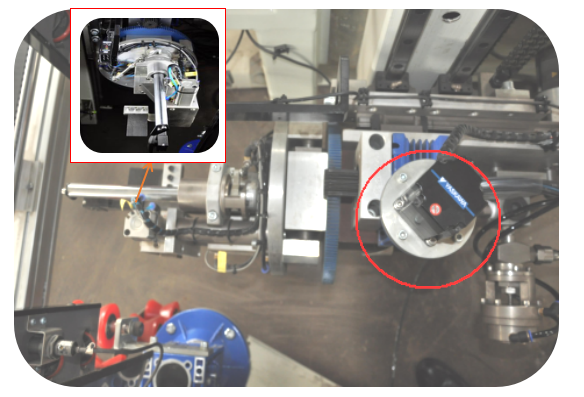

Adopt Japan YASKAWA servo motor to control the sealing part with 360°rotating. Setting scraper blade to scrape out extra glue and no need to  pair glass corners by second time.

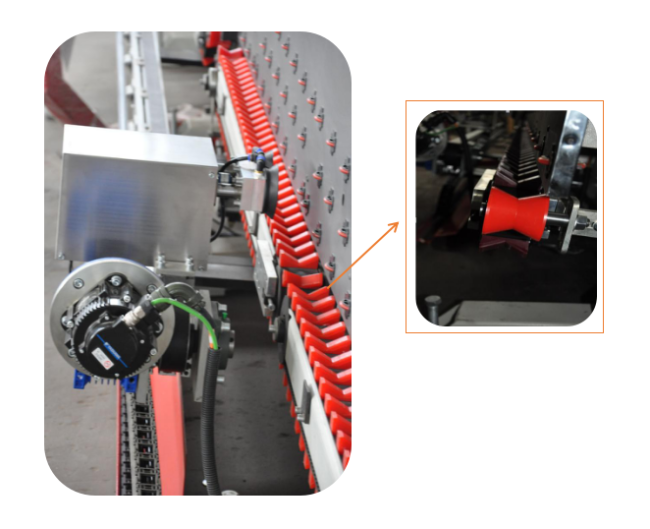

• Timing belt

The time belt device ensure that glass can be smooth transmission and positioned accurately.

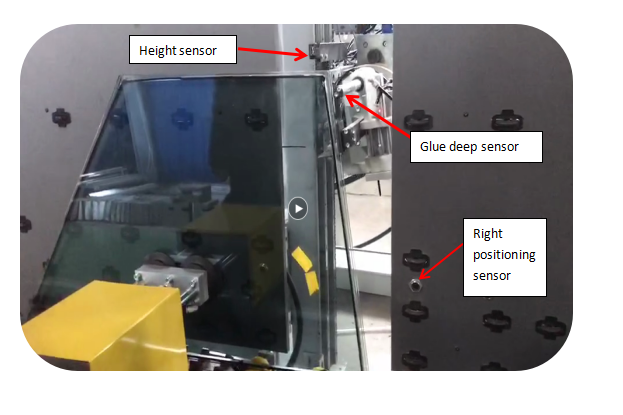

• Intelligent Sensor

Automatically position the glass and sensor glue deep, the coating speed can be adjustable onlin

• Storage Function

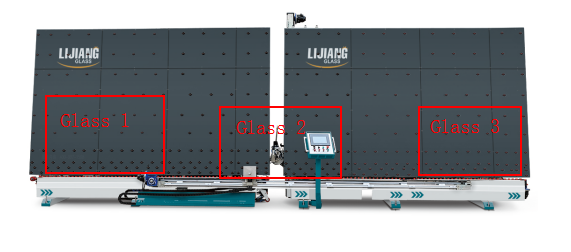

It can store three pieces of insulating glasses when glass sizes are less than 1.8m.


• Shaped Glass and Triple Function (Optional)

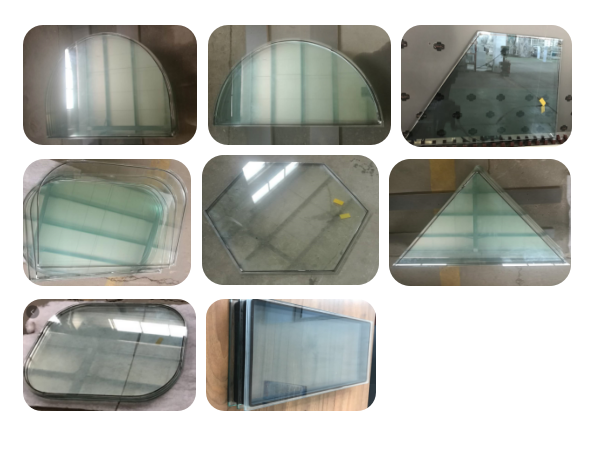

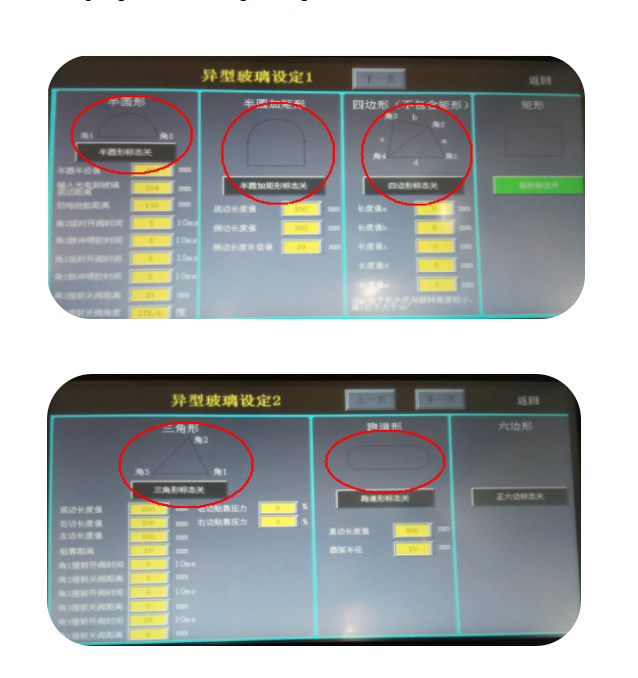

With the development of updating technology, the sealing robot can coat 8 shaped glasses according to the glass market.

• Stepped glass (Optional)


We put the machine head in the front, it will more convenient to making stepped IG units. It can connect with the IG line.

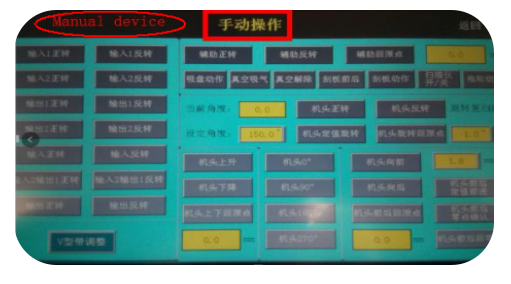

• Equipped with MANUAL DEVICE

Every separate part is equipped with manual operation, be easy to adjust in case.

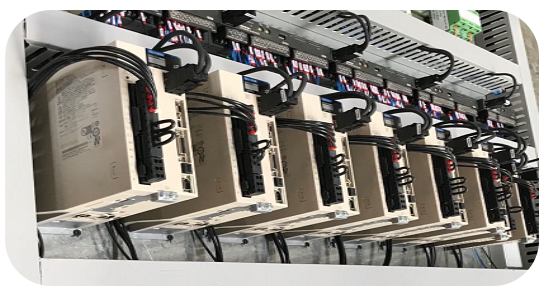

• Eight Servos

The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.

• Main electrical components

The main electrical components are adopted Siemens, SMC and so on famous spares to maintain more stable performance.
