China Processing Hollow Glass 10m/Min Vertical Glass Washer for sale

Processing Hollow Glass 10m/Min Vertical Glass Washer

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: within 30 days

Brand: LIJIANG GLASS

Product Description

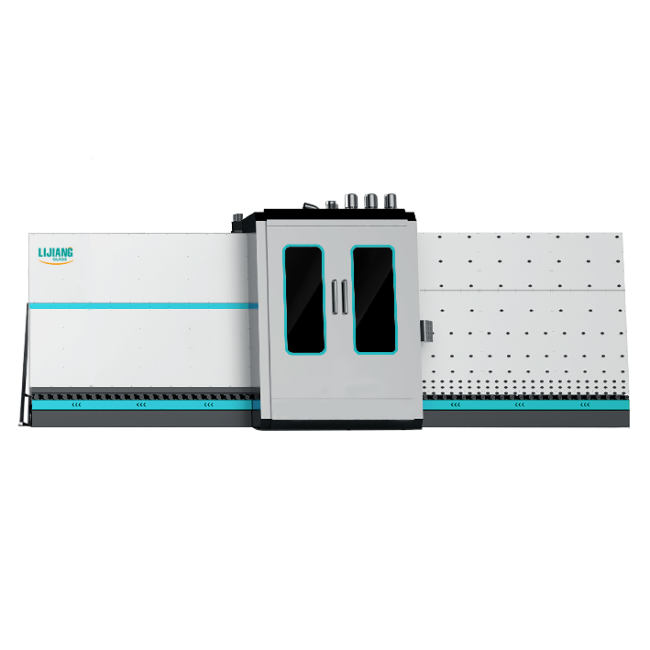

Easy Operating Automatic Vertical Glass washing machine Insulating Glass machine

1. Overview of Automatic Vertical Glass Washing Machine

Vertical glass washing machine is used for glass washing for processing hollow glass.

The whole washing &drying machine adopts stainless steel, including the plate and interior spare parts.And some slider block are copper.

Vertical glass washing machine has 3 pair of brushes, which are all soft brushes, washing flat glass,tempering glass and low-e glass.It has a diameter of less than 0.1mm brashes,which will never damage glass,especially low-e glass .

2.Advantage of glass washing machine

* In the washing machine ,there three pairs soft brushes all can wash low-e glass, four pairs of water spray. * The transfer wheel in the washing and drying section : The front and back transfer wheel are all moved, all actively transferred. No mater the glass size is big or small , it all guarantee the glass pass through smoothly.

* The material in the washing and drying section all made by stainless steel.

* The main power consumption is mostly appear in the washing and drying section of the IG line.

* The air knife is float design , it always keep the right and suitable distance between the glass and air knife in the press and

design section

* The axle and bearing of brushes are stainless steel , that all keep the machine can washing well and live for a long time.

* The who drying machine use the sound insulation design. can reduce the noise.

3. Parameters of Vertical Glass Washing and Drying Machine

Power supply	Voltage(V)	380
Power supply	Frequency (Hz)	50
Main power	kW	≈35
Washing speed	m/min	1~7
Max high speed	m/min	10
Min glass size	mm	450×280
Max glass size	mm	2500×4000
Glass thickness	mm	3~15
Roller height	mm	500±20
Total weight	kg	≈3500

4.Main feature of glass washing and drying machine

Automatic vertical washing machine can Wash online and offline low-e glass, automatically recognizes Low-e film
Automatic vertical washing machine adopts Siemens control system, which can freely adjust the cleaning speed of cleaning machine.
The washing machine uses six soft (Low-e) brushes with the 01mm diameter only.
It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
Water tank automatic temperature control, water replenishing system Cleaning and water tanks are made of stainless steel and corrosion resistant materials, and the transfer rollers are acid and alkali resistant rubber rollers, which are automatically adjusted according to the glass thickness. The pre-cleaning section adopts stepless frequency conversion speed regulation, and the glass can run smoothly at the right speed.

Hierarchical type washing system
304 stainless steel materials
The air knife can automatically adjust the width of the air knife according to the thickness
Using Europe's advanced anti-noise system to create a good working environment for employees.The noise can be controlled below 90 decibels by using nylon gear and sponges.
Automatic vertical washing machine Using intelligent intermittent energy-saving working methods
Automatic vertical washing machine Adopt variable frequency fan, energy efficient, good cleaning effect
