Low E Double Glazing 360° 15mm Glass Edge Grinding Machine

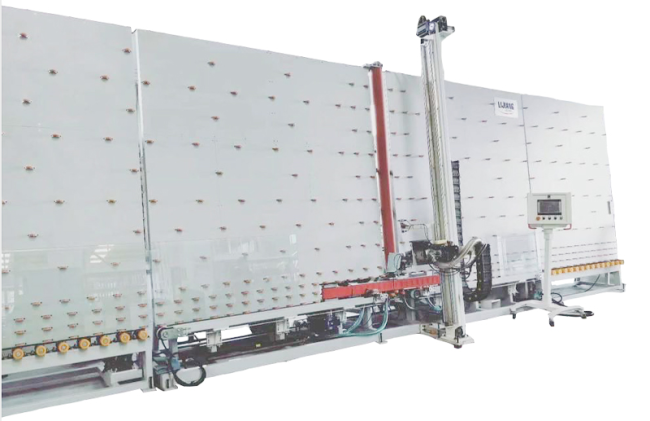

Smart Vertical Edge Deleting Machine for low-E glass and double glazing glass
Description of Low-E Film Edge Deletion Machine
The glass edging machine is specially designed for Low-E glass edging machine with vertical structure, and the production line is easy to connect. High-quality grinding wheels are durable and can produce neat and beautiful grinding cracks. The distance can be arbitrarily set between 10~150 mm. The transmission adopts imported servo control system, which has accurate positioning and stable operation.
Vertical Low-E glass trimming machine is divided into three parts: glass loading part, unloading part and glass unloading part. The glass trimming machine has 4 different directions.
The vertical low-e film edge deletion machine can delete double or triple low-e film.
Main feature of smart verticle edge deleting machine
- Four-way glass channel
- Automatic measurement of glass size
- Automatic recognition of low-emission surfaces
- Remove double and triple silver Low-e glass
- PLC control system, touch screen interface
- Head can be rotated 360°
- Adjustable edge deletion
- Safe and fully automated equipment
- Six servo control system
- Intelligent control system, batch processing can be recognized
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
Tech Specification of edge deleting machine
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |

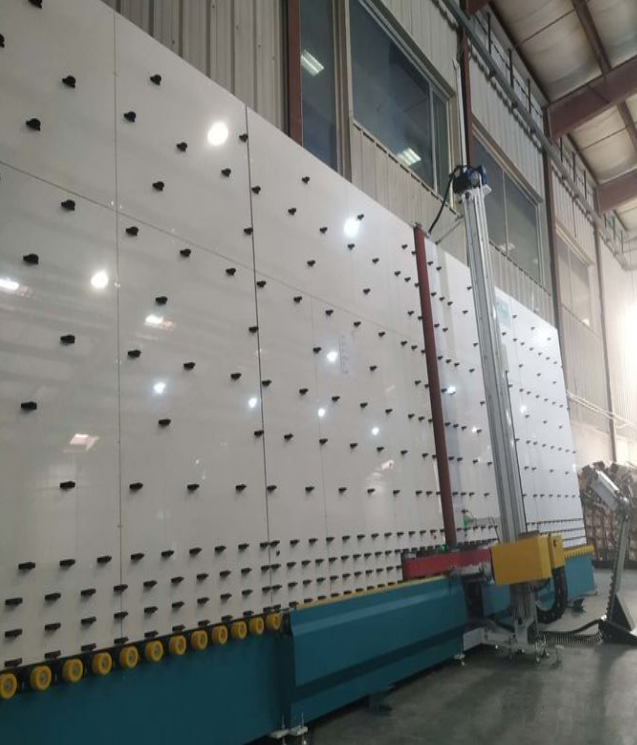

Detail picture
Related product

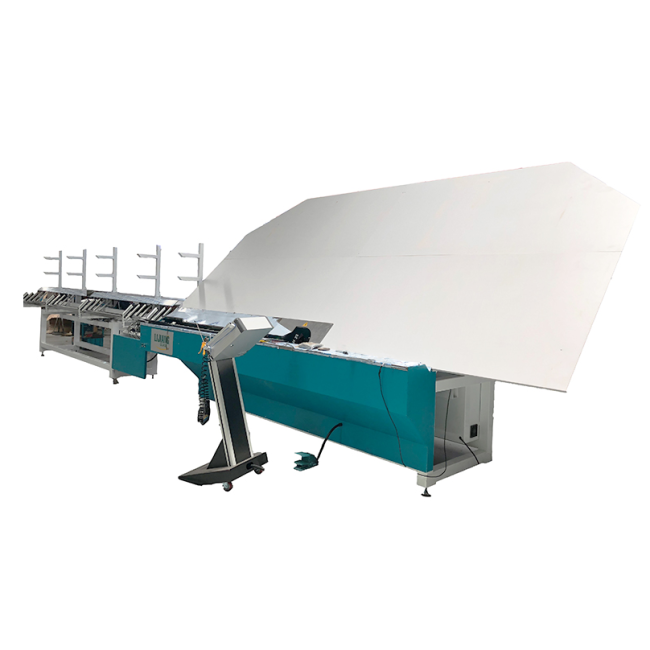

Automatic Aluminum Spacer Bending Machine LJZW2020
Main feature
- •Use Siemens PLC control system, touch screen interface
- • Siemens CNC Servo Control System
- •Aluminum gaskets are available in different sizes and sizes
- •Continuously curved spacer frame
- •Four gasket size storage units
- •Automatically cut and feed aluminum gasket
- •Adjustment function, can bend large aluminum frame
- • There is a separate guard on the outside of the pipe bender
- • Automatically avoid connection when bending and cutting
- • Suspend and reset equipment to handle equipment failure
- •Can bend aluminum gasket and stainless steel (optional)
- • Automatic drilling of gas filling holes (optional)
- •Connect to ERP system (optional)
- •USB input function, directly read excel format files, etc. (optional)
- • Interval printing code function (optional)
- •Print label sticker function (optional)
