China 2 Or 4 Suckers Glass Vacuum Lifter 300kg / 500kg Load for sale

2 Or 4 Suckers Glass Vacuum Lifter 300kg / 500kg Load

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 10 days

Brand: LIJIANG GLASS

Product Description

Glass Lifting Equipment Glass Vacuum Lifter Hoist Lifting Equipment

IGU machine Insulating Glass Processing Glass Lifting Equipment With Suction Cups

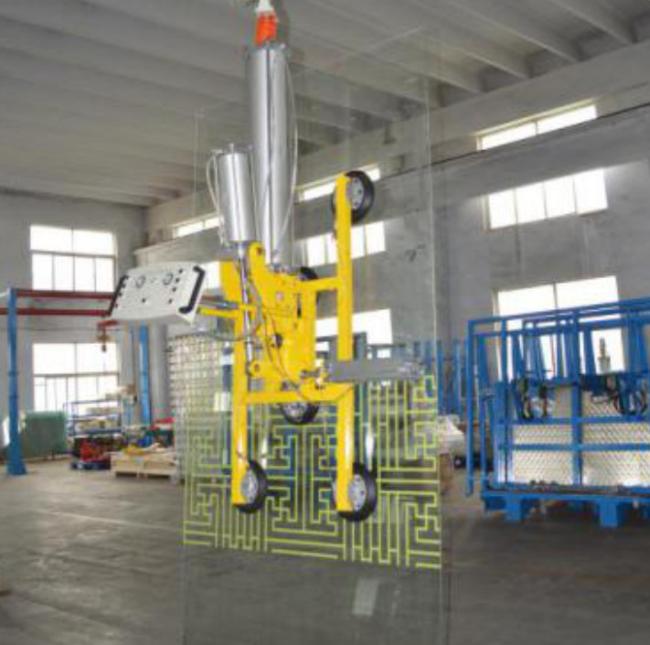

Cantilever crane lifter machine is one kind of glass loading and unloading machine for glass factory or glass users. Glass loading equipment can be jib crane , can be the glass car and the glass lifter device.

Feature of cantilever crane lifter

1. Cantilever vacuum glass lifter is for handling insulating glass sheet.

2 Glass lifter is stable, easy to use and safe.
3. Glass lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
4. Glass lifter is able to lift the glass sheet with 300kg / 500kg / 900kg ....
5. Glass lifting machine is equip with 2 / 4 / 5 suckers. The No.s of suckers can be add according to need of the client.

Advantage of glass lifter

Electric remote control flip 90 degrees,Electric remote control rotate 360 degrees.

Load 400kg, can used for loading and unloading float glass by flexible bridge crane.

can used for loading and unloading for finished processing glass by stable colume suspension crane(or wall fixed suspension).

Remote -control guaranteed operator 's safe.Simple operation improved your working efficiency .

Tech Parameters of Cantilever Lift Crane

Max Glass weight	300/500KG
Rotation angle	Rotate 90 ° Flip 90°	Left and Right Up and Down
Suction cups	6 Pieces
Cup Materials	Silicone
Sliding method	Manual
Column height	4 meters	Gas storage function
Arm length	4 meters
Air Control parts	Airtac

Max Glass weight	400KG
Rotation angle	Rotate 90 ° Flip 90°	Left and Right Up and Down
Suction cups	2 pieces
Cups Materials	Silione
Sliding method	Manual
Column height	4 meters	Gas storage function
Arm length	4 meters
Air control parts	Airtac

Related product of LIJIANG GLASS

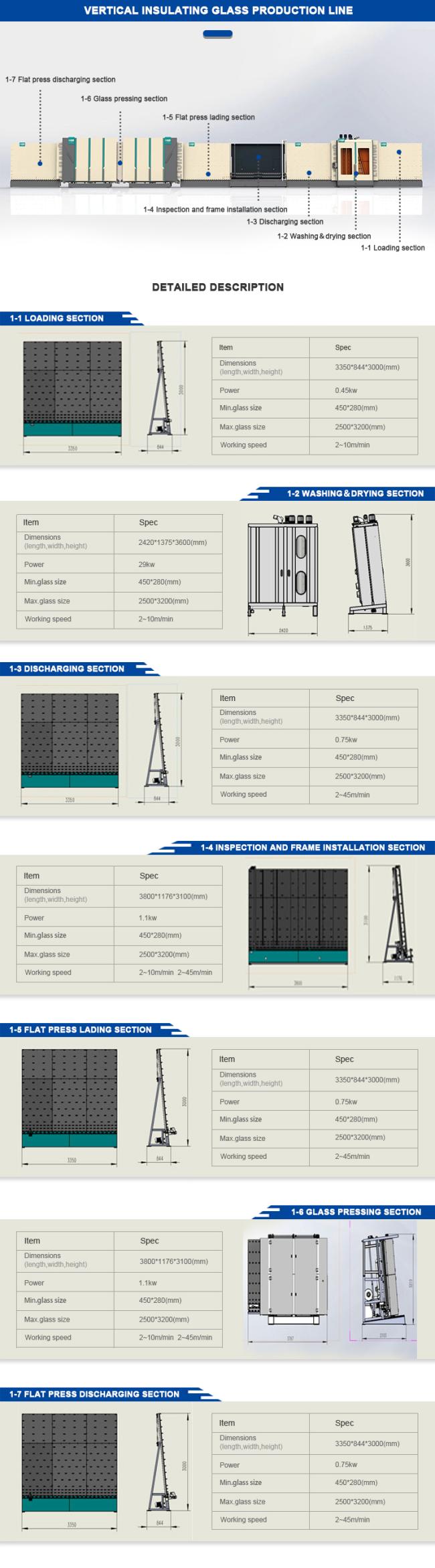

product Name: Vertical Insualting Glass Production Line

Type: LJBZ2025 / LJBZ2535
Dimension (L*W*H): 19500mm*3500mm*3200mm / 23500mm*3500mm*3700mm / 27000mm*3500mm*3700mm
Flat glass thickness: 3~15mm (Customerized 3~30mm)
Washing brushes: 6 pieces
Max. thickness of insulating glass: 60 mm
Total gas consumption: 1200 L/min
Washing speed: 2~10 m/min
Max. working speed: 45 m/min
Min. glass size: 450*280 mm
Max. glass size: 2000*2500 mm / 2000*3000 mm / 2500*3200 mm / 2500*3500 mm / 2500*4500 mm
Voltage: 380V 50Hz 3P

Product Name: Vertical Insualting Air-floating Glass Production Line

Type: LJBZ2025GF / LJBZ2535GF
Dimension (L*W*H): 19500mm*3500mm*3200mm / 23500mm*3500mm*3700mm / 27000mm*3500mm*3700mm
Flat glass thickness: 3~15mm (Customerized 3~30mm)
Washing brushes: 6 pieces Max. thickness of insulating glass: 60 mm Total gas consumption: 1200 L/min
Washing speed: 2~10 m/min Max. working speed: 45 m/min Min. glass size: 450*280 mm Max. glass size: 2000*2500 mm / 2000*3000 mm / 2500*3200 mm / 2500*3500 mm / 2500*4500 mm Voltage: 380V 50Hz 3P


Product Name: Jinan LIJIANG Vertical Edge Deleting Machine

Type: LJCM2545
Min. glass processing size: 300*400mm
Max. glass processing size: 2500*4500mmGlass thickness: 3-15 mm
Edge deleting width: 10-500 mm
Glass conveying speed: 0-30 m/min
Grinding wheel width: 10/12/15 mm
Total power: 15Kw
Dimension: 9700*2500*3400mm
Weight: 2600Kgs

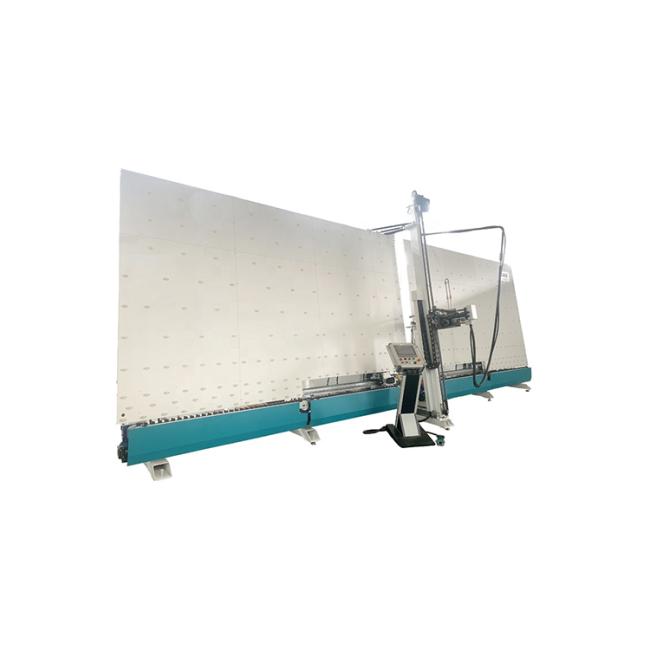

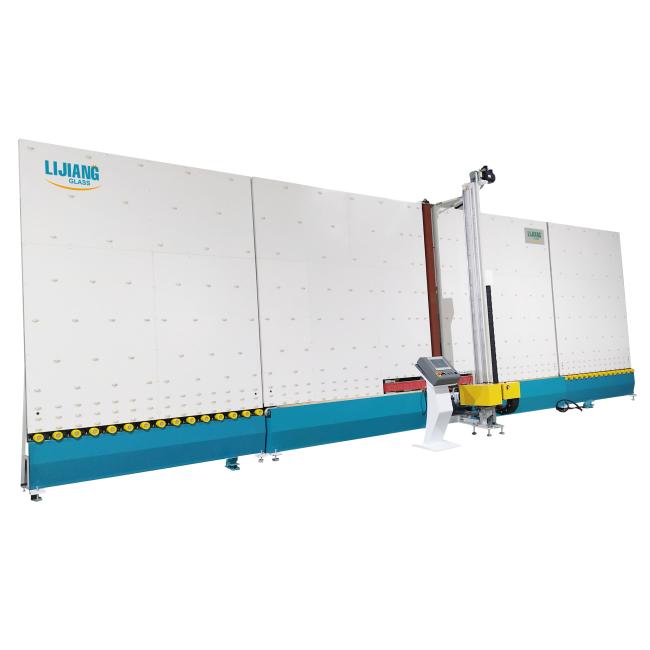

Product Name: Jinan LIJIANG Automatic Sealing Robot Machine

Type: LJTJ2030 / LJTJ2540
Overall dimension: 6700mm*2500mm*3000mm / 8700mm*2500mm*3500mm

Max. glass size: 2000*3000mm / 2500*4000mm

Min. glass size: 400*300mm
Glass thickness: 12-56mm
Air pressure: 0.6-0.8 MPa
Squeeze pressure: < 35MPa Voltage: 380V 50Hz 3P
Power: 15Kw
Weight: 4300Kgs / 5000Kgs
