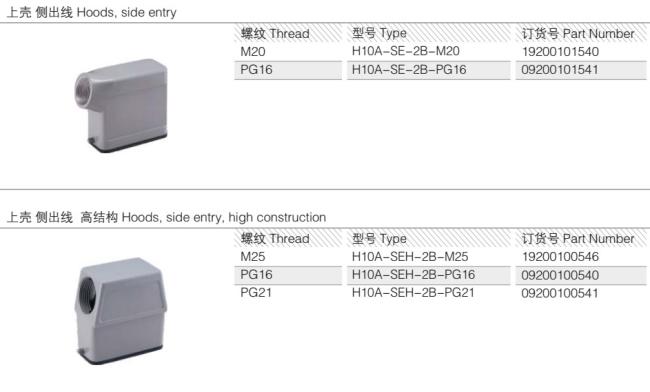

Side Entry D Sub Hood Assembly , Side Entry Db25 Metal Hood 09200100541
IP65 Housing for Industrial Coupled Connector 09200101541 09200100541
Features
1) Numerous in varieties, sample supply and prompt delivery.
2) Flexible design according to customer’s requirement.
3) Molding, Injection, Die-Cast, punching, threading at own workshop.
4) 100% QC checked before selling.
5) Afford the most competitive price to you.
6) 7 years experiences specialize in heavy duty connector.
8) RoHS compliance, friendly to Environment.
9) Quality assurance in accordance with ISO9001:2008.
Compatible with Harting Han 10A Size Hood and Housing
| Description |
| Type: | Side Entry Hood |
| Model No.: | H10A-SE-2B |
| Corrosion Resistant: | Yes |
| Material : | Die-Cast Aluminum |
| Surface : | Powder Coated |
| Operating Temperature Range Max: | 125 |
| Operating Temperature Range Min: | 40 |
| Inflammability class acc. to UL94: | V0 |
| Degree of Protection: | IP65 |
| Colour: | Grey (RAL 7037) |
| Seals: | NBR waterproof |
| Go with HA-010 (10 Pin, 10A, 250V) | HD-015 (15 Pin, 10A, 250V) inserts |
| Thread: | PG16 or PG21 or M20, or M25 |
| Cable Gland Free: | Yes |
| High construction H1A-SEH-2B for larger wires is optional |
Application
| Electrical Control | Ring Network Cabinet, Motors, Switchgears |
| Machinery | Injection Machine, Blow Bottle Machine, Packing Machine, Printing Machine |
| Automation | Industrial Robot |
| Power System | Wind Generation |
| Automotive Industrial | Assembly line |
| Others | Escalator, Measurement and Control Technology, Railway Carriage |
FAQ
1. Where is your factory?
Our factory is located in Xuezhai Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325604 China.
2. Are you manufacturer or trading company?
We are manufacturer established in 2011, and have over 7 years production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
12 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes around 5-7 days, exact lead time should be confirmed against the final order.
6. How about the MOQ, Payment term, Delivery port, and shipping date?
MOQ: No Limit as we pack indivisually for each part.
T/T:30% deposit and 70% before delivery.
L/C at sight is also acceptable
Ningbo / Shanghai
Small order by DHL, TNT, Fedex, EMS will be better for you.
