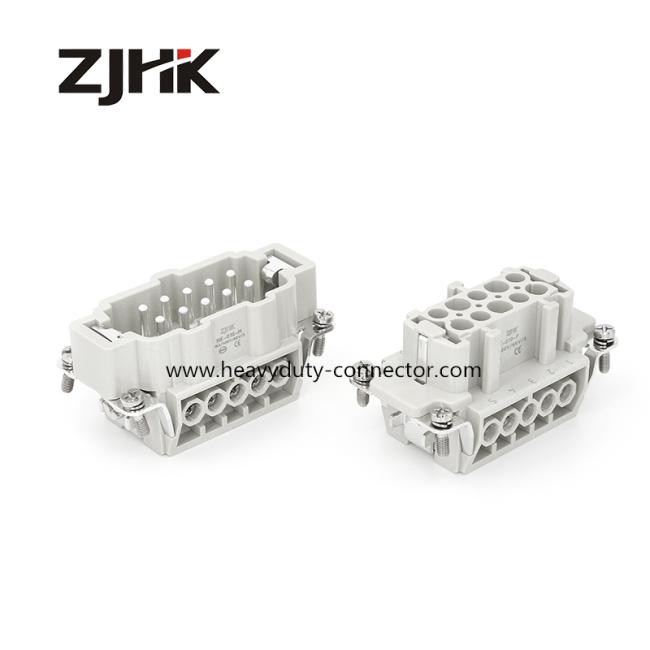

E Series 10 Pin Truck Heavy Duty Connector Screw Insert 500v 16a White Color
Price:
Negotiable
MOQ:
5
Delivery Time:
7 Days
Brand:
ZJHK
Product Description
Inserts, Screw termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.75 ... 2.5mm², Copper alloy, Silver plated
Fit ABB KUKA FANUC Robots Industrial solution
Part number: 09330102601
Technical data
| Version | |
| Termination method | Screw termination |
| Gender | Male |
| Size | 10B |
| With wire protection | Yes |
| Number of contacts | 10 |
| PE contact | Yes |
| Technical characteristics | |
| Conductor cross-section | 0.75 ... 2.5 mm² |
| Conductor cross-section | AWG 18 ... AWG 14 |
| Rated current | 16A |
| Rated voltage | 500 V |
| Rated impulse voltage | 6 kV |
| Pollution degree | 3 |
| Insulation resistance | > 1010 Ω |
| Contact resistance | ≤ 1 mΩ |
| Limiting temperature | -40 ... +125 °C |
| Stripping length | 7.5 mm |
| Tightening torque | 0.5 Nm |
| Mating cycles | ≥ 500 |
| Material properties | |
| Material (insert) | Polycarbonate |
| Colour (insert) | RAL 7032 (pebble grey) |
| Material (contacts) | Copper alloy |
| Surface (contacts) | Silver plated |
| Commercial data | |
| Packaging size | 1 |
| Net weight | 66g |
| Country of origin | China |
| European | 85366990 |
| Chinese customs tariff number |
8536901900 |
| eCl@ss | 27440205 Contact insert for industrial connectors |

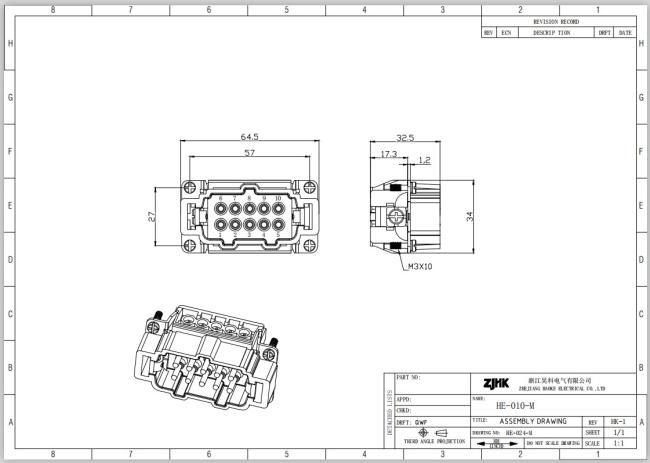

Design drawing:

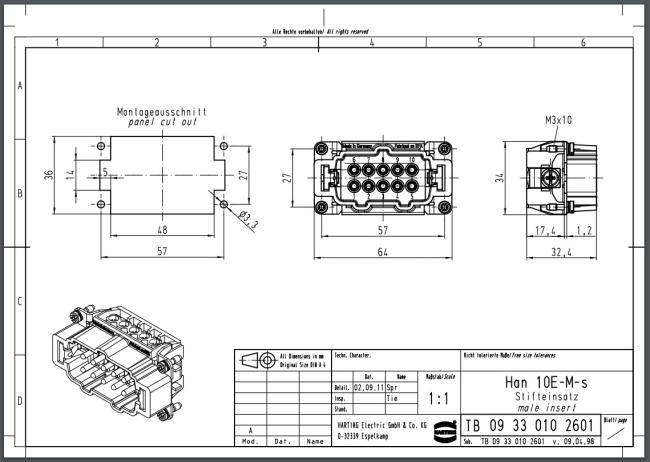

Match Han E 10 Pos. F Insert Screw
Please check our design drowing with Harting design drowing
