16A 6 PIN heavy duty cage clamp inserts

Replace Harting Han 6 ES-M&F insert

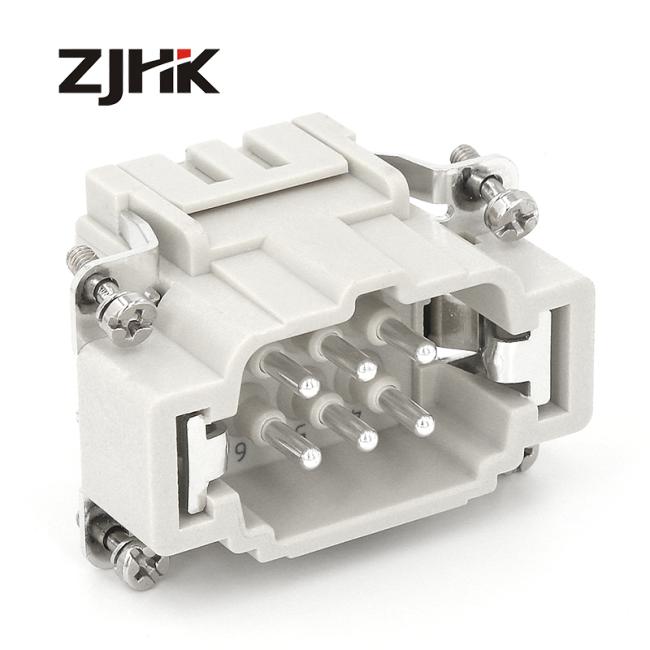

Inserts, Cage-clamp termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.14 ... 2.5mm², Copper alloy, Silver plated

Technical data

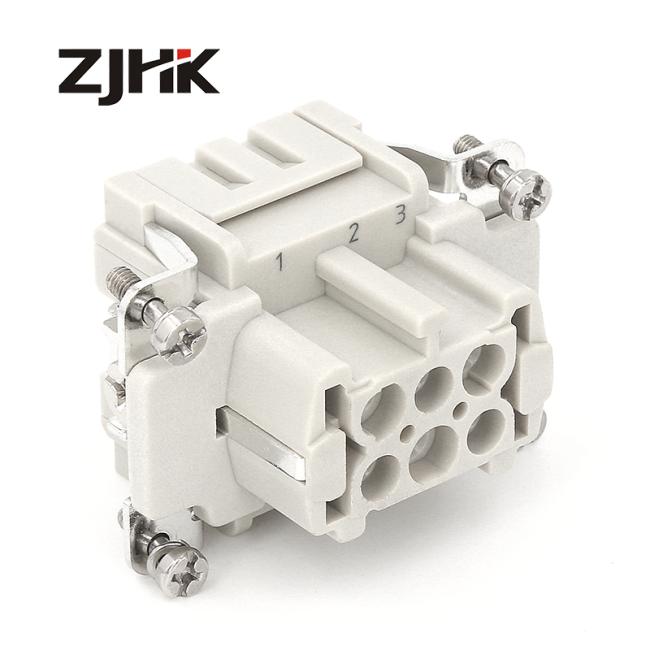

Details of inserts (Male and Female)

Cage Clamp Contact Inserts

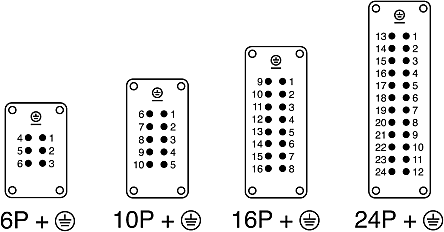

From Haoke, this series of robust cage clamp contact inserts are suitable for wire termination of 26-14awg (0.14 – 2.5mm²) and require no tooling. These cage clamp contact inserts are ideal for when quick and simplistic termination is required in heavy duty power applications. Available in 6 to 24 poles, they have a current rating of 16A and a working voltage of 500V.

Approvals

UL,CE,Rohs 3.0

HE 16A Cage Clamp Series

These HES inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Haoke 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.

Warning

• These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection.
