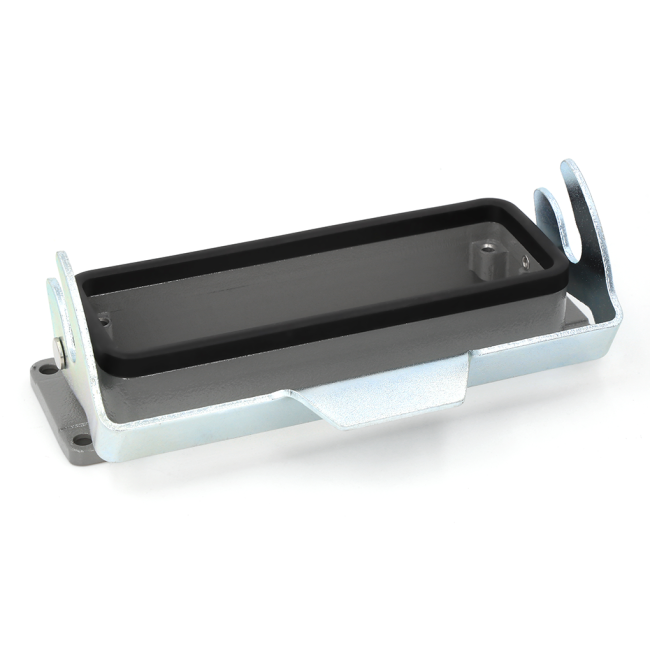

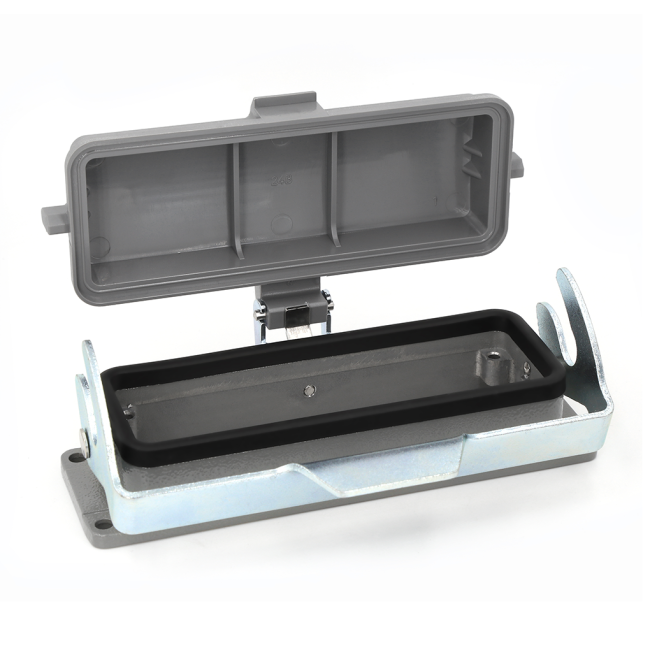

24B bulkhead housing replace Han 24 B single lever housing 24 B bilkhead housing with cover
Product Features
| Model Number | H24B-BK-1L |
| Housing seal | NBR |
| Key Commercial data | |
| Type | Housing |
| Hood Mounting | Bulkhead Mounting |
| Material | Zinc Die-Cast |
| Color | Gray |
| Lever Type | Galvanized iron |
| Limiting Temperature | -40...+125℃ |
| Flammability Acc.to UL 94 | V0 |
| Degree of protection | IP65 |
| Type | Part Number |
| H24B-BK-1L | 09300240307 |
| H24B-BK-1L-CV | 09300240304 |
| H24B-BK-1L-MCV | 09300240318 |
Heavy duty connector, also known as HDC heavy duty connector,aviation plugs, are widely used in construction machinery,textile machinery,packaging and printing machinery, tobacco machinery,robots, rail transit, hot runners, electricity, automation, etc.
ZJHK® is specialized in heavy duty connectors. We have been doing it for nearly 10 years. and the certificates are also very complete.Such as UL,CE,CQC.CCC and ROHS.
Packaging Details: ZJHK® heavy duty connector will be packed in one small bag and then put in a bigger box.We will do a good job of packaging to ensure that the goods received by the customer are in good condition.
FAQ:
1.Are you factory or trade company?
A:We are the source factory in Wenzhou,Zhejiang Province,China.
2.Can we have our logo or company name to be printed on your products ?
A:Sure.OEM is okay.Your Logo can be printed on our products.And we
can also make package according to your design.
3.What is usual payment term for orders?
A:We accept a variety of payment methods, according to customer requirement.
4. Warranty Time.
A:12 month. Any problem of the quality is changed by your next order
free.Our after-sales service is perfect, please rest assured.
5.Free Sample.
A:We can provide samples for you to try, you only need to pay the freight
