Single/ Three Phase Small Dimension Variable Frequency Drive VFD Speed Control For Various Motors

Name: Single/ Three Phase Small Dimension Variable Frequency Drive VFD Speed Control For Various Motors
Brand: Xi'an Noker Electric Co.,Ltd.

Price Negotiable

Price: To be discussed later

MOQ: 1 set

Delivery Time: 5-8 work days

Brand: Noker

Product Description

Single/ Three Phase Small Dimension Variable Frequency Drive VFD Speed Control For Various Motors

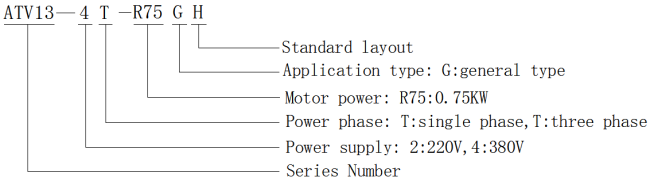

Model

Specification

Item		Specifications
	Control mode	Voltage/Frequency control (V/F)
	Start-up torque	0.5Hz/100%
	Speed range	1:20
	Speed stability accuracy	±1.0%
	Torque control accuracy	±5% (SVC)
	Overload capacity	G type: 60s for 150% of the rated current, 1s for 180% of the rated current.
	V/F curve	Straight-line V/F curve; Multi-point V/F curve; Quadratic square V / F curve
	DC braking	Braking time: 0.1s ~ 50.0s Braking Frequency: 0.00—maximum frequency
	JOG control	JOG frequency range: 0.00Hz ~ maximum frequency JOG acceleration/deceleration time: 0.1s ~ 3600.0s
	Acceleration and deceleration time	Linear mode, acceleration and deceleration time range: 0.1-3600s
	Torque lifting	Manual: 0.1-30.0; automatic: 0.0
Input/output feature	Startup frequency	0.50-10Hz
	Input voltage range	220V/380V±15%
	Input frequency	50Hz/60Hz Fluctuation range: ±5%
	Input frequency accuracy	Analog setting: maximum frequency × 0.1, digital setting: 0.01Hz
	Output frequency	0—600Hz
Interface feature	Digital input	4 Programmable digital input
	Analog input	AVI:0—10V
	Relay output	1 relay output programmable
	Transistor output	1 transistor output programmable
	Analog output	Default:0—10v, Setting: 4—20mA
	Communication	RS485 Modbus
Basic feature	Run command channel	Three channels: operation panel keystroke given, control terminal given, serial communication port given. Can be switched in a number of ways
	Frequency source	7 kinds of frequency sources, including: panel potentiometer setting, digital key UP/DOWN setting, communication port setting, PID setting, etc.
	Auxiliary frequency source	1 auxiliary frequency source for frequency synthesis and frequency fine tuning
	Simple PLC, Multi-Segment Speed Control function	User custom multi-segment speed, PLC run mode
	Onboard PID	It realizes process-controlled closed loop control system easily.
	Auto voltage regulation (AVR)	It can keep constant output voltage automatically when the mains voltage changes.

Display and operation	LED display	It displays the parameters.
	Automatic energy-saving operation	Reduce output voltage automatically under light load to achieve energy saving effect
	Key locking and function selection	It can lock the keys partially or completely and define the function range of some keys so as to prevent mis-function.
	Protection	Overcurrent protection, overvoltage protection, output lose phase, undervoltage protection , overheat protection and overload protection and etc.
	Password	Can set a 4-digit password, the password is a non-0 number, set the password after the exit password setting interface, 1 minute after the password effective
Environment	Installation location	Indoor, free from direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapour, drip or salt.
	Altitude	Lower than 1000m
	Ambient temperature	-10℃ to +40℃ (de-rated if the ambient temperature is between 40℃ and 50℃)
	Humidity	Less than 95% RH, without condensing
	Vibration	Less than 5.9m/s2 (0.6g)
	Storage temperature	-40℃ to +70℃
	IP level	IP20
