3 Phase Thyristor Power Module DBC Copper Clad Ceramic Substrate Diode Rectifier Bridge Power Module
Three Phase 1600V 100Amp DBC Copper Clad Laminate Insulated Ceramic Substrate Diode Rectifier Bridge Power Module is widely used in frequency inverter,DC Power,motor excitation power,Soft starting capacitor charging,Welding equipment DC power supply etc.
Features
1. Good Power Circulation capacity
2. DBC Copper clad Laminate Insulated Ceramic substrate
3. Good temperature characteristics
4. Vacuum nitrogen Protection Welding
5. Low on-state voltage drop
6. Installation simple, easy to maintain
7. Small in volume and light in weight
| Type |
IO TC=100°C(A) |
VRRM(V) | IRRM(mA) | VFM(V) | @IFM(A) | IFSM (kA) | Rjc(°C/W) | Viso(V) | Outline |
| MDS20 | 20 | 600-2600 | 5 | 1.55 | 20 | 0.45 | 2.46 | 2500 | M20 |
| MDS30 | 30 | 600-2600 | 5 | 1.45 | 30 | 0.55 | 1.88 | 2500 | |
| MDS60 | 60 | 600-2600 | 8 | 1.40 | 60 | 0.75 | 0.75 | 2500 | |
| MDS75 | 75 | 600-2600 | 8 | 1.40 | 75 | 1.00 | 0.70 | 2500 | M21 M22 M24 |
| MDS100 | 100 | 600-2600 | 8 | 1.40 | 100 | 1.50 | 0.55 | 2500 | |
| MDS160 | 160 | 600-2600 | 10 | 1.45 | 160 | 2.50 | 0.43 | 2500 | M23 M25 M26 |
| MDS200 | 200 | 600-2600 | 10 | 1.35 | 200 | 3.20 | 0.37 | 2500 | |
| MDS250 | 250 | 600-2600 | 10 | 1.42 | 250 | 4.50 | 0.29 | 2500 | M25 |
| MDS300 | 300 | 600-2600 | 15 | 1.45 | 300 | 4.80 | 0.24 | 2500 | M27 |
| MDS400 | 400 | 600-2600 | 15 | 1.40 | 400 | 6.80 | 0.23 | 2500 | |
| MDS500 | 500 | 600-2600 | 15 | 1.42 | 500 | 7.50 | 0.19 | 2500 | M28 |
| MDS600 | 600 | 600-2600 | 15 | 1.50 | 600 | 9.10 | 0.16 | 2500 |

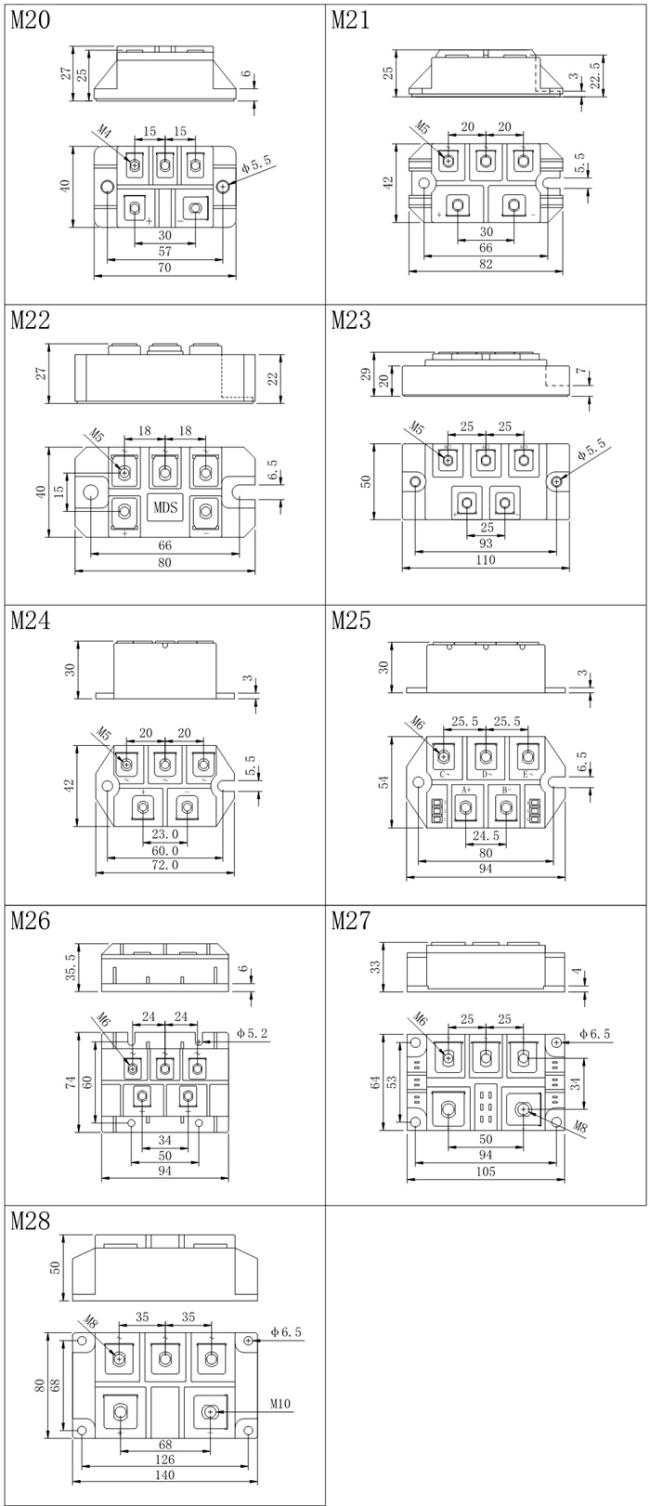

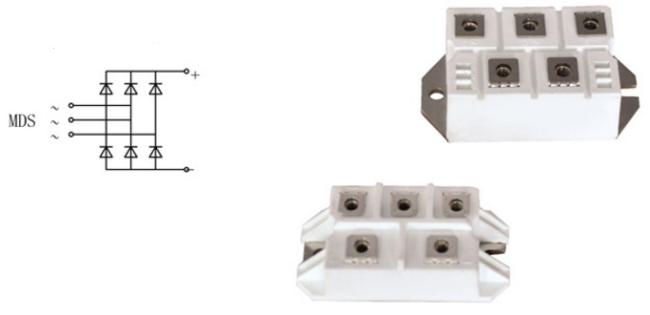

Dimension
Application
1.Frequency inverter
2.Rectifier
3.DC Power
4.motor excitation power
5.Soft starting capacitor charging
6.Welding equipment DC power supply
