Fast Recovery Diode Thyristor Assembly 800 - 3500V Small Reverse Recovery Charge
Price:
To be discussed later
MOQ:
1 set
Delivery Time:
5-8 work days
Brand:
Noker
Product Description
ZK Series Fast Recovery Diode 800--3500V With A Very Small Reverse Recovery Charge
Features
1. A very small reverse recovery charge
2. Fast soft recovery feature
3. Short recovery time
4. Flat ceramic shell package
5. Double side cooling
6. Diffusion junction
Application
1. Induction heating
2. UPS power supply
3. Welding equipment
4. Chopper
5. Motor control and drive
| Type |
IF (AV) TC=55°C(A) |
VDRM (V) |
VFM(V) | @IFM(A) | Trr(us) | Tjm(°C) | Rjc(°C/kw) | F(kN) | Outline |
| ZK300 | 300 | 800-2000 | 2.40 | 1200 | 5 | 125 | 85.0 | 8 | Z1 |
| ZK500 | 500 | 800-2000 | 1.80 | 1200 | 5 | 125 | 60.0 | 12 | |
| ZK400 | 400 | 2200-3000 | 2.50 | 1200 | 8 | 125 | 60.0 | 12 | |
| ZK800 | 800 | 800-1400 | 1.70 | 1600 | 4 | 125 | 45.0 | 15 | Z2 |
| ZK600 | 600 | 1600-2800 | 2.20 | 1600 | 5 | 125 | 45.0 | 15 | |
| ZK500 | 500 | 3000-3500 | 2.80 | 1600 | 8 | 125 | 45.0 | 15 | |
| ZK1000 | 1000 | 800-1400 | 1.75 | 1600 | 5 | 125 | 35.0 | 18 | Z3 |
| ZK800 | 800 | 1600-2800 | 2.20 | 1600 | 8 | 125 | 35.0 | 18 | Z3 |
| ZK1500 | 1500 | 800-1400 | 1.65 | 2000 | 5 | 125 | 23.0 | 22 | |
| ZK1200 | 1200 | 1600-2800 | 2.15 | 2000 | 5 | 125 | 23.0 | 22 | |
| ZK1000 | 1000 | 3000-3500 | 2.45 | 2000 | 8 | 125 | 23.0 | 22 | |
| ZK1800 | 1800 | 800-2000 | 1.65 | 2000 | 5 | 125 | 18.0 | 25 | Z4 |
| ZK1600 | 1600 | 1600-2800 | 1.90 | 2000 | 5 | 125 | 18.0 | 25 | |
| ZK1500 | 1500 | 3000-3500 | 2.10 | 2000 | 8 | 125 | 18.0 | 25 | |
| ZK2200 | 2200 | 800-1400 | 2.20 | 2000 | 5 | 125 | 13.0 | 28 | Z5 |
| ZK2000 | 2000 | 1600-2800 | 1.95 | 2000 | 5 | 125 | 13.0 | 28 | |
| ZK1800 | 1800 | 3000-3500 | 2.15 | 2000 | 8 | 125 | 13.0 | 28 | |
| ZK2500 | 2500 | 800-1400 | 1.60 | 2000 | 5 | 125 | 12.0 | 30 | Z6 |
| ZK2300 | 2300 | 1600-2800 | 1.85 | 2000 | 5 | 125 | 12.0 | 30 | |
| ZK2200 | 2200 | 3000-3500 | 1.95 | 2000 | 8 | 125 | 12.0 | 30 | |
| ZK3500 | 3500 | 800-1400 | 1.40 | 2000 | 5 | 125 | 10.0 | 35 | Z7 |
| ZK3000 | 3000 | 1600-2800 | 1.65 | 2000 | 5 | 125 | 10.0 | 35 | |
| ZK2500 | 2500 | 3000-3500 | 1.95 | 2000 | 8 | 125 | 10.0 | 35 |

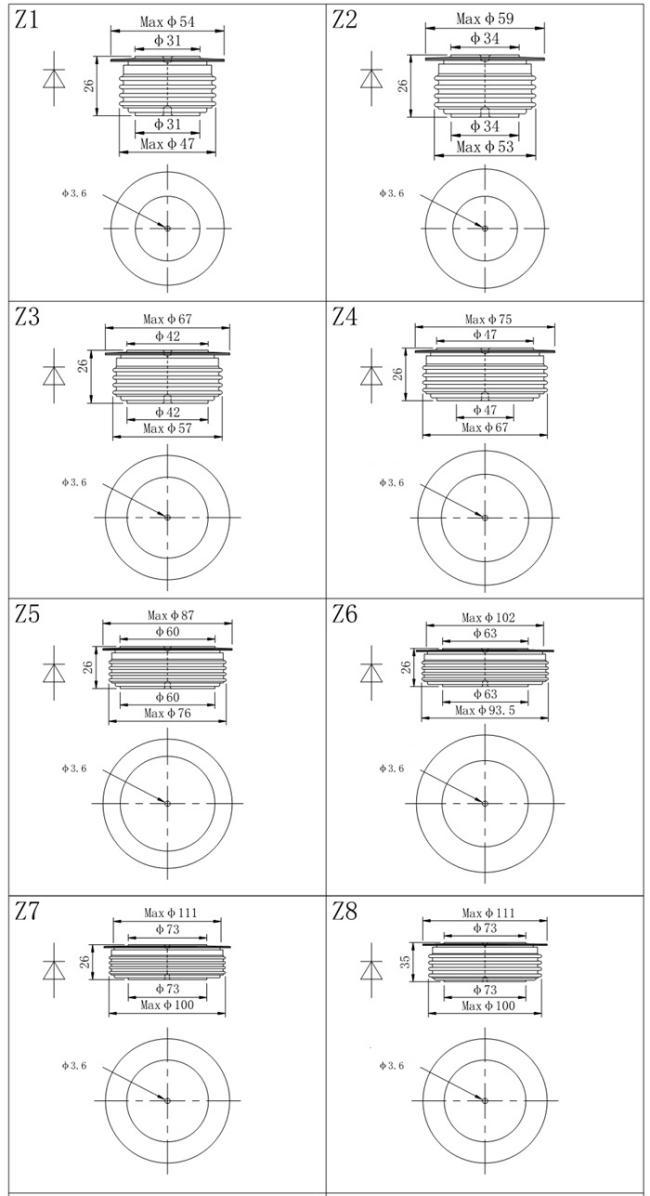

Dimension
Shipment and Packaging
