3 Phase Diode Bridge Rectifier Module , Controllable Thyristor Module For Battery Charge
Price:
To be discussed later
MOQ:
1 set
Delivery Time:
10-15 work days
Brand:
Noker
Product Description
MDST200-16 Small 3 Phase Diode Bridge Rectifier Thyristor Controllable Module is widely used in Inverter, Various rectifier power supply, DC motor excitation power supply, Soft starter capacitor charge, Battery charge and discharge , Welding machine, Instrument equipment DC power supply.
Features
1. DBC copper clad laminate insulating ceramic substrate
2. Good power cycle capacity
3. Vacuum nitrogen shielded welding
4. Good temperature characteristic
5. International standard package
6. Low on-state voltage drop
7. Easy to install and use, easy to maintain. Small size and light weight
| Type |
IT (AV) TC=80°C(A) |
VRRM (V) |
IRRM (mA) | VTM(V) | @ITM(A) | IGT (mA) | VGT (V) | dv/dt(V/us) | di/dt(A/us) | IFSM(kA) | I2t(kA2S) | Tjm(°C) | Viso(V) | Outline |
| MDST75 | 75 | 800-2500 | 10 | 1.35 | 225 | 100 | 2.5 | 1000 | 100 | 1.36 | 10.3 | 125 | 2500 | M29 |
| MDST100 | 100 | 800-2500 | 10 | 1.35 | 300 | 100 | 2.5 | 1000 | 100 | 1.82 | 12.0 | 125 | 2500 | |
| MDST150 | 150 | 800-2500 | 15 | 1.35 | 450 | 100 | 2.5 | 1000 | 100 | 2.25 | 15.0 | 150 | 2500 | M30 |
| MDST200 | 200 | 800-2500 | 15 | 1.35 | 600 | 100 | 2.5 | 1000 | 100 | 2.90 | 42.5 | 150 | 2500 |

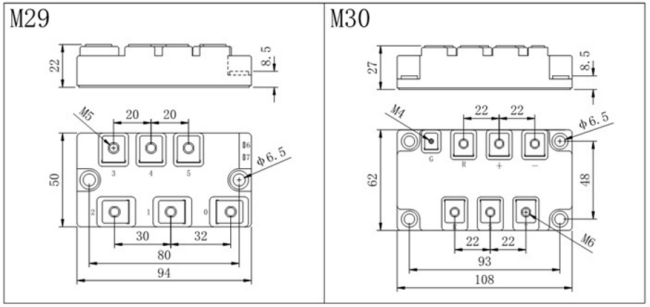

Dimension
