Two Loop Voltage Regulation Module / Soft Starter Thyristor Photoelectric Isolation

Price Negotiable
Price: To be discussed later
MOQ: 5 set
Delivery Time: 5-8 work days
Brand: Noker
Product Description

Two Loop Voltage Regulation Module / Soft Starter Thyristor Photoelectric Isolation



Application




Parameter



Technical parameter
Input parameter
Voltage range 4--32VDC
On voltage 4VDC
Maximum input current 20mA
Output parameter
Load voltage range 0-220VAC/0-380VAC
Maximum instantaneous voltage 1200Vpk
Minimum load current 100mA
Maximum turn-off time 20mS
Maximum surge current(10ms) 10A 50A
15A 75A
30A 150A
45A 225A
Instantaneous voltage rise rate 1000V/us
Off-state leakage current 1.5Vrms
Insulation voltage ≥2500VAC
Isolation voltage ≥2500VAC
Work temperature -40°C—80°C
Indication LED indication

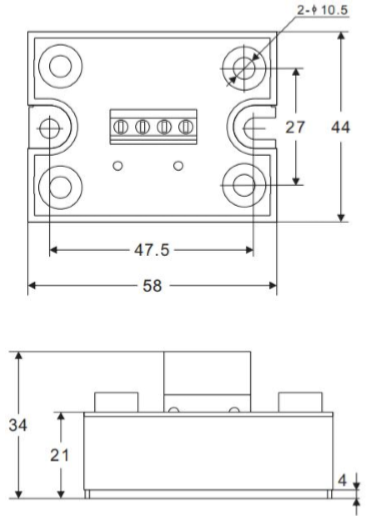

Dimension





Shipment and Packaging
