Frame Size 110mm LB Series IP65 Small Rotor Servo Motors And Drives
LB series servo motors provide AC220V / 380V servo motor. With four series of dimensions: 80mm, 110mm, 130mm, 150mm in AC 220V series; four series of rated speeds: 1500rpm, 2000rpm, 2500rpm, 3000rpm.
Features
1.FRAME SIZE(mm):80,110,130,150
2.RATED SPEED(rpm):1500,2000,2500,3000
3.ELECTRIC LOSS BRAKE:Option
4.INSULATION GRADE:B
5.ENVIRONMENT TEMPERATURE:0~55°C
6.RATED TORQUE(Nm):1.3~27
7.RATED POWER(Kw):0.4~5.5
8.POLES:4
9.MATCHED DRIVER(VAC):220
Parameters
| Motor type | Technical parameters | |||
| Rated torque | Rated speed | Rated current | Rated power | |
| 80ST-M01330L□B | 1.3 Nm | 3000 rpm | 2.6 A | 0.4 Kw |
| 80ST-M02430L□B | 2.4 Nm | 3000 rpm | 4.2 A | 0.75 Kw |
| 80ST-M03330L□B | 3.3 Nm | 3000 rpm | 4.2 A | 1.0 Kw |
| 110ST-M02030L□B | 2.0 Nm | 3000 rpm | 4.0 A | 0.6 Kw |
| 110ST-M04030L□B | 4.0 Nm | 3000 rpm | 5.0 A | 1.2 Kw |
| 110ST-M05030L□B | 5.0 Nm | 3000 rpm | 6.0 A | 1.5 Kw |
| 110ST-M06020L□B | 6.0 Nm | 2000 rpm | 6.0 A | 1.2 Kw |
| 110ST-M06030L□B | 6.0 Nm | 3000 rpm | 8.0 A | 1.8 Kw |
| 130ST-M04025L□B | 4.0 Nm | 2500 rpm | 4.0 A | 1.0 Kw |
| 130ST-M05025L□B | 5.0 Nm | 2500 rpm | 5.0 A | 1.3 Kw |
| 130ST-M06025L□B | 6.0 Nm | 2500 rpm | 6.0 A | 1.5 Kw |
| 130ST-M07720L□B | 7.7 Nm | 2000 rpm | 6.0 A | 1.6 Kw |
| 130ST-M07725L□B | 7.7 Nm | 2500 rpm | 7.5 A | 2.0 Kw |
| 130ST-M07730L□B | 7.7 Nm | 3000 rpm | 9.0 A | 2.4 Kw |
| 130ST-M10015L□B | 10.0 Nm | 1500 rpm | 6.0 A | 1.5 Kw |
| 130ST-M10025L□B | 10.0 Nm | 2500 rpm | 10.0 A | 2.6 Kw |
| 130ST-M15015L□B | 15.0 Nm | 1500 rpm | 9.5 A | 2.3 Kw |
| 130ST-M15025L□B | 15.0 Nm | 2500 rpm | 17.0 A | 3.8 Kw |
| 150ST-M15025L□B | 15.0 Nm | 2500 rpm | 16.5 A | 3.9 Kw |
| 150ST-M18020L□B | 18.0 Nm | 2000 rpm | 16.5 A | 3.6 Kw |
| 150ST-M23020L□B | 23.0 Nm | 2000 rpm | 20.5 A | 4.7 Kw |
| 150ST-M27020L□B | 27.0 Nm | 2000 rpm | 20.5 A | 5.5 Kw |
Frame
| Motor type | 110ST-M02030L£B | 110ST-M04030L£B | 110ST-M05030L£B | 110ST-M06020L£B | 110ST-M06030L£B |
| Rated power | 0.6kW | 1.2kW | 1.5kW | 1.2kW | 1.8kW |
| Rated torque | 2.0Nm | 4.0Nm | 5.0Nm | 6.0Nm | 6.0Nm |
| Rated speed | 3000rpm | 3000rpm | 3000rpm | 2000rpm | 3000rpm |
| Rated current | 4.0A | 5.0A | 6.0A | 6.0A | 8.0A |
| Rotor inertia |
0.413*10-3Kgm2 (0.477*10-3Kgm2) |
0.693*10-3Kgm2 (0.757*10-3Kgm2) |
0.856*10-3Kgm2 (0.92*10-3Kgm2) |
1.029*10-3Kgm2 (1.093*10-3Kgm2) |
1.029*10-3Kgm2 (1.093*10-3Kgm2) |
| Mechanical constant time | 4.867ms | 2.531ms | 2.12ms | 1.976ms | 1.855ms |
| Max current | 12.0A | 15.0A | 18.0A | 18.0A | 24.0A |
| Max torque | 6.0Nm | 12.0Nm | 15.0Nm | 18.0Nm | 18.0Nm |

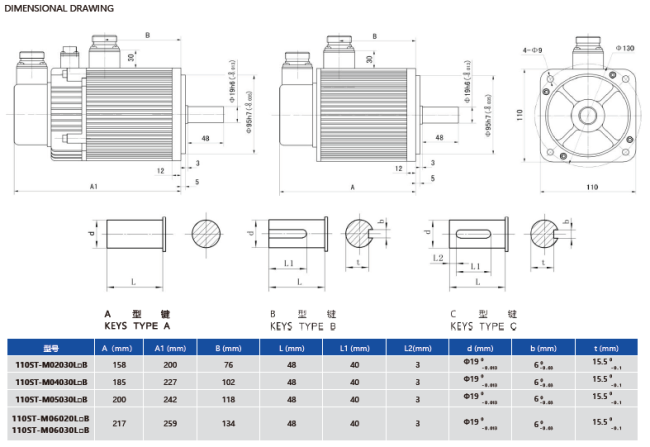

Dimension
