Liquid Crystal Switchable Privacy Glass With Switchable Smart Film
Liquid Crystal Switchable Privacy Glass With Switchable Smart Film 50,000 Hours Life Time
Advantages of Privacy Glass
- Eco friendly
- Low working voltage
- Blocks more than 99% UV rays ,avoiding fading in the room.
- Instant and precise privacy control
- Efficient use of space in the built environment
- Sound proof – with excellent damping action, the smart glass is easy to block the noise.
- High contrast at any viewing angle and any illumination level
- Long life – 50,000 Hours Life Time
Switchable Smart Glass introduction:
Smart Glass is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between two layers of glass and two layers of conductive inter-layers. The PDLC film is what allows you to change the visual appearance of the glass from opaque to clear on command. It also named as Privacy Glass or Switchable Transparent Glass ( STG ).
It's an intelligent high function glass, which has a special characteristic of changing between clear and opaque by voltage control. With such a function, Smart glass meets people’s double requirements of light transmission and protecting privacy.
Switchable Smart Glass Description:
| Product Name | Superior Light Transmittance Switchable Smart Glass With 50,000 Hours Life Time |
| Raw Material Glass | Clear Glass, Ultra Clear Glass |
| Thickness | 5+5mm / 6+6mm |
| Color | Clear, Milky, Grey, Blue, Green, Red, Black |
| Common Width |
Smart Glass -- 1.0, 1.2, 1.5, 1.8meters (Max 1.8meters) Self-Adhesive PDLC Film-- 1.0, 1.2, 1.5meters (Max 1.5meters) |
| PDLC Film Length | 30 or 50 meters/roll or per request |
| Light Transmittance |
Clear Glass: >= 82% (ON) / <=8% (OFF) Ultra Clear Glass: >= 86% (ON) / <=10% (OFF) |
| Response Time |
From OFF to ON: <=50ms From ON to OFF: <=200ms |
| Power consumption | 5W/sq.meter |
| Operating Temperature | -20 ℃ and 70 ℃ |
| Life Time | >=50,000hours |
| Transformer | AC 60V (Suggest to use nominated transformer) |
| Silicon Glue | Neutral (Suggest to use nominated silicon glue to prevent glass corrison) |

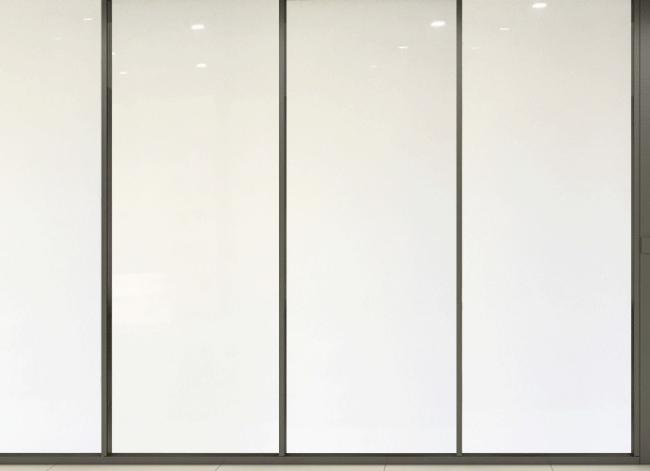

Product Show:
