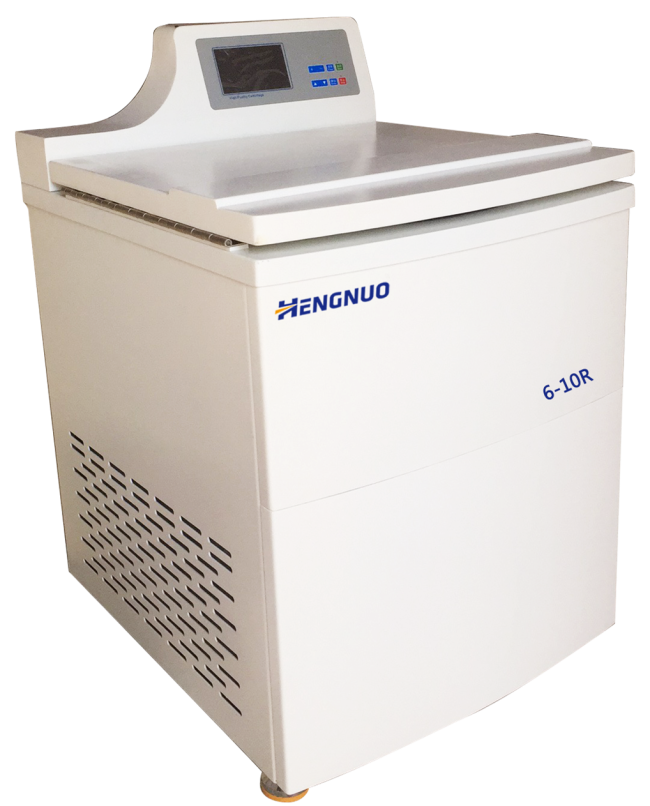

6-10R Floor Standing Large Capacity Refrigerated Centrifuge Machine
Floor-standing Large Capacity Refrigerated Centrifuge 6-10R
Product Introduction
1. Excellent performance: microcomputer control, AC variable frequency
motor drive, no carbon powder pollution, extending service life, low noise and small vibration;
2. Equipped with the latest super-light large-capacity rotors, improving efficiency greatly.
3. Easy operation: touch screen panel, digital display and programmable operation.
4. Best effects: the user can randomly set speed up and down time, automatically
calculate RCF value, dual heating and cooling temperature control, the centrifugal
effect is optimal.
5. Safe and reliable: it is equipped with a variety of protections, such as over-speed,
over-temperature, imbalance, and self-locking of the door cover, ensuring safety
of human and machine.
6. Model 6-10R can be widely used in fields of biological engineering, genetic engineering,
bio-pharmaceuticals.
Technical Parameters
| Model | 6-10 R (Refrigerated) | ||
| Max Speed | 10000rpm | Power Supply | AC 220±22V 50Hz 30A |
|
Max Relative Centrifugal Force
|
18300×g | Total Power | 4500W |
| Max Capacity | 6×1000ml | Total Noise | < 65dB(A) |
| Timing Range | 1min～99min59sec | Diameter of Centrifugal Cavity | 600mm |
| Temperature Setting Range | -20℃～40℃ |
Outline Dimensions (L*W*H) |
830×720×1250(mm) |
| Temperature Accuracy | ±1.0℃ |
Packing Dimensions (L*W*H) |
930×830×1350(mm) |
| Minimum Time for Acceleration/Deceleration | 178s/178s | Net Weight | 230kgs |
| Speed Accuracy | ±20r/min | Gross Weight | 300kgs |

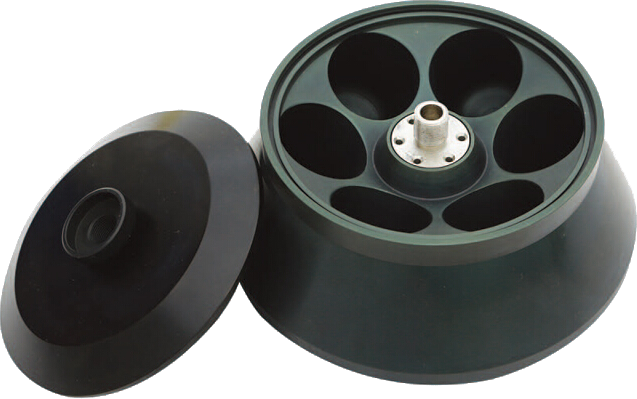

Applicable Rotors
|
#1 Angle Rotor |
Single tube capacity: 1000ml Total capacity: 6*1000ml Max Speed: 8000rpm Max RCF: 15000*g |
#2 Angle Rotor
|
Single tube capacity: 500ml Total capacity: 6*500ml Max speed: 8000rpm Max RCF: 11680*g |
|
#3 Angle Rotor |
Single tube capacity: 250ml Total capacity: 6*250ml Max capacity: 1000rpm Max RCF: 18500*g |
#4 Angle Rotor |
Single tube capacity: 1000ml Total capacity: 6*1000ml (Square cup / round cup) Max speed: 4200rpm Max RCF: 5100*g |
