AC Drives Electric Forklift Truck , 3 Wheel Forklift 24V/240Ah Battery
24V/240Ah Battery AC Motor 3 Wheel Electric Forklift Truck
The EPS electric turning
200W turning motor
AC Drives

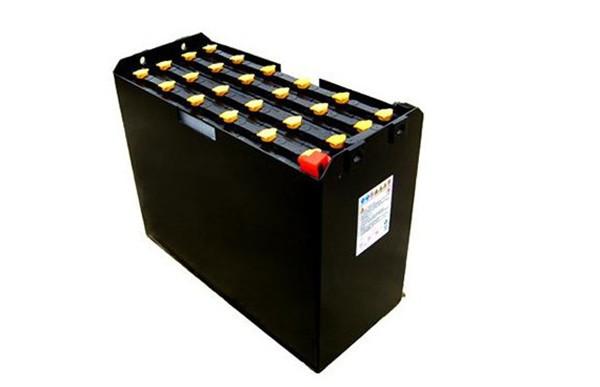

24V/240Ah battery
CURTIS electric control system
| 3-Wheel Electric Forklift Truck | |||||
| Model | KLA08B | KLA12B | |||
| Performace | Operator Type | Seated | |||
| Maximum load capacity | Q | Kg | 800 | 1200 | |
| Load center | C | mm | 500 | ||
| Front Overhang | X | mm | 160 | ||
| Wheelbase | Y | mm | 1245 | ||
| Travel speed(full/without load) | Km/h | 4.5/5 | |||
| Lifting speed(full/without load) | m/s | 0.17/0.22 | |||
| Max.Gradeability-Laden/unladen | % | 5./8 | |||
| Weight(with battery) | Kg | 1700 | 1870 | ||
| Dimensions | Tilting angle(up/down) | (°) | 3°/5° | ||
| Mast lowered height | h1 | mm | 1985(2110) | ||
| Maxinum lifting height | h3 | mm | 3000 | ||
| Max height(mast lifted with backrest | h4 | mm | 3670 | ||
| Overhead guard height | h5 | mm | 1985(2110) | ||
| Overall length(with fork) | L1 | mm | 2680 | ||
| Overall length(without fork) | L2 | mm | 1610 | ||
| Overall width of frame | b1 | mm | 940 | ||
| FORK Dimensiona | s/e/L | mm | 35*100*1070 | ||
| Turning radius | Wa | mm | 1490 | ||
| Min intersecting aisle width | 3500 | ||||
| Tire | Wheel material | polyurethane | |||
| Front wheel | φ215*85(2) | ||||
| Drive wheel | φ230*75(1) | ||||
| Drive motor type | s2 60min | Kw | 1.5 | ||
| Electrical components | Hoist motor type | S3 15% | Kw | 2.2 | |
| Battery(Voltage/Capacity) | K5 | V/Ah | 24/240 | ||
| Battery Weight | Kg | 230 | |||
| Brake | electromagnetic | ||||
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
