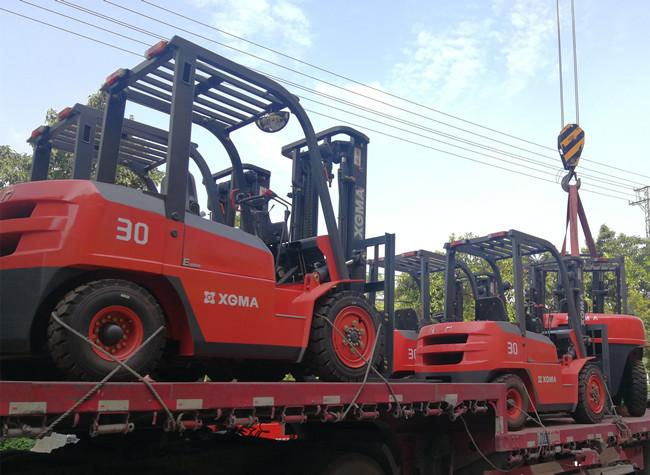

Powerful Diesel Powered Warehouse Lift Truck Hydraulic Transmission 3 Ton Capacity
With 2 stage mast hydraulic transmission 3 ton diesel forklift
Strong powertrain system
The powerful engine, in combination with a stable high-efficiency transmission syatem, takes full advantage of its power and torque output to enhance the work efficiency./
Industy-leading radiation technology
The large-capacity ribbon—tubular radiator with the optimized radiation channels enhances the forklift radiation capacity and ensures the reliable engine running
Mature and reliable hydraulic elements
All supporting components, such as the hydraulic system, employ the reliable, technically-mature, market-proven and high-quality hydraulic elements spacially designed for vatious working conditions.
Carrier of safety design concept
All important parts have passed the strict reliability test, and the wide-view mast, high-strength overhead guard and optimized frame fully embody the safety design concept followed by XGMA.
XGMA 3 ton forklift Specification:
| Character | 1.1 | Manufacturer | XGMA | |
| 1.2 | model | CPCD30 | ||
| 1.3 | Product name | XG530-DT5 | ||
| 1.4 | Power size | Diesel | ||
| 1.5 | Rated Capacity | kg | 3000 | |
| Dimension | 2.1 | load center distance | mm | 500 |
| 2.2 | Lifting height | mm | 3000 | |
| 2.3 | Free lifting height | mm | 145 | |
| 2.4 | Mast tilt | α/β | 612 | |
| 2.5 | Overall Length | mm | 3820 | |
| 2.6 | Overall Width | mm | 1220 | |
| 2.7 | Mast without lifting height | mm | 2100 | |
| 2.8 | Right Angle stacking min. channel width | mm | 4075 | |
| 2.9 | Overhead height | mm | 2150 | |
| 2.11 | Fork(L*W*H) | mm | 1070*125*45 | |
| 2.12 | Front overhang/Rear overhang | mm | 475/515 | |
| 2.13 | Wheel distance | mm | 1760 | |
| 2.14 | Min. Turning radium | mm | 2400 | |
| Specification | 3.1 | Min.ground clearance | mm | 140 |
| 3.2 | Max.driving speed(Empty load) | km/h | 20 | |
| 3.3 | Lifting speed(Full load) | mm/s | 450 | |
| 3.4 | Max.traction | KN | 15 | |
| 3.5 | Gradeability | ° | 20 | |
| Tires | 4.1 | Overall Weight | kg | 4270 |
| 4.2 | Front tire size | 28*9-15-14PR | ||
| 4.3 | Rear tire size | 6.50-10-10PR | ||
| 4.4 | wheel distance(Front/Rear) | mm | 1000/980 | |
| Driving,transmission gear device | 5.1 | Engine Model | C490BPG | |
| 5.2 | Eninge rated power/rotate speed | kw/r.p.m | 40/2650 | |
| 5.3 | Max.torque/rotate speed | N.w/r.p.m | 160/1800-2000 | |
| 5.4 | Gears (Front/Rear) | 11 | ||
| 5.5 | Battery(Valtage/capacity) | V/Ah | 12/80 | |
| 5.6 | Fuel box capacity | L | 70 | |
| 5.7 | Hydraulic oil box capacity | L | 70 |
FAQ
1. What's the Certificate do you have?
XGMA workshop meet with the ISO9001 Quality System. And all of our products are with CE certificate.
2. Can you customize and design as the clients' requirement?
XGMA will try its best to meet all kinds of clients' special requirements. And for new products that have not been into the market yet, we have our technical team to help the clients. All kinds of attachments such as roll paper clamp, side shifter and so on can be available.
3. How long is the warranty of your products?
All of products are with 1 year / 2000 working hours subject to the first.
4. What's the payment terms do you accept?
Normally we accept 30% deposit, 70%balance before delivery.
5. Delivery date:
If clients need normal products, we will deliver the products within 15days. If clients need customerized products, the delivery date depend on the requirements.
