47 Inch Wall Mounted Digital Signage DID LCD Video Wall 3.5mm Narrow Bezel
47 Inch Wall Mounted Digital Signage DID LCD Video Wall 3.5mm Narrow Bezel
Features:
1, Using industrial DID LCD screen,Contrast 4000:14000: 1;Color temperature 10000K.
2, Designed for video display,High brightness high definition,Even in the sun, still perfect display.With KUANBO graphics processor and matrix,Can support up to 256 screen walls.

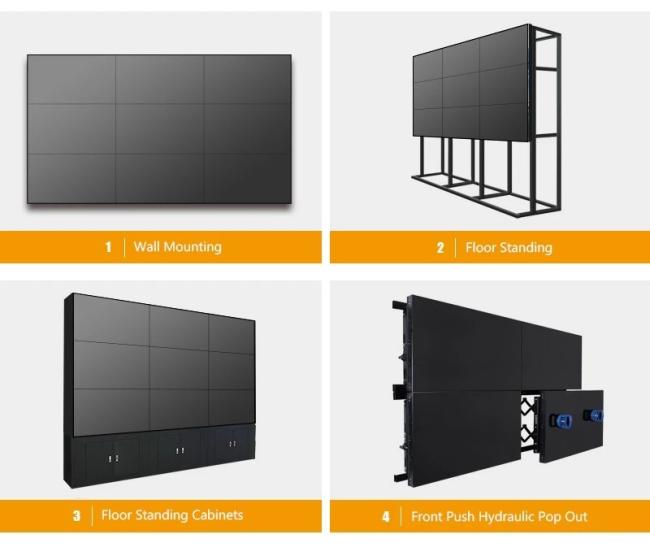

3, Using industrial DID screen,Can be placed horizontally, can also be placed vertically,The screen is rotated at 0 to 180 degrees.
4, Built-in temperature control fan, according to the actual temperature adjustment fan operation, and start the fan cooling.
5, Long life, stable operation, without any burns, damage, low maintenance costs.
6, Built-in random code generator, RS232 communication port can be controlled by large-screen splicing box to generate random code to facilitate the construction site.
7, Boot LOGO and no signal LOGO splicing function to facilitate customers in accordance with their own needs, to configure the LOGO display.
8, Large-screen high-definition point-to-point subtitle function, according to customer needs to set the subtitles, scrolling at the top of the screen.
|
Panel Size
|
47'' DID LCD Screen
|
|
Aspect Ratio
|
16:9
|
|
Resolution Support
|
1920x1080
|
|
Color
|
8Bit,16.7M
|
|
Brightness (nits)
|
500/ 700cd/m2
|
|
Contrast
|
3000:1
|
|
Visual Angle (H/V)
|
178°
|
|
Response Time
|
<=6ms
|
|
Life(hrs)
|
>60,000(hrs)
|
|
Power Supply
|
AC100V~240V
|
|
Power Consumption
|
250W
|
|
Standby Power Consumption
|
<=3W
|
|
Working Temperature
|
0°C~50°C
|
|
Working Humidity
|
20%-80%
|
|
Dimension
|
1044.9*590*113.8mm
|
|
Video Wall Controller(Built-in each Screen)
|
|
|
Input
|
CVBS,2*BNC port, support PAL/NTSC all formats
|
|
Input
|
DVI,1*DVI-I port, support SVGA/XGA/WUXGA
|
|
Input
|
VGA,1*D15 port, support SVGA/XGA/WXGA
|
|
Input
|
1*port, support SVGA/XGA/WUXGA
|
|
Input
|
RS232,1*port
|
|
Output
|
LVDS,Support signal or double LVDS output, and WUXGA (1920*1080) display
|
|
Output
|
CVBS,x*support PAL/NTSC all formats
|
|
Output
|
RS232,2*port
|
|
Operate mode
|
Panel key operation(needs customization)
|
|
Operate mode
|
Standard RS232 port( provide free control software)
|
|
Operate mode
|
ADD Code
|
|
Engineering software
|
XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
|
|
Working temperature
|
0~70 °C
|
|
working humidity
|
5~95 %RH
|
|
AC voltage power
|
100-240V/50, 60Hz
|
|
power consumption
|
Max 300W,according to different Screen models
|
|
Dimension
|
307×283×55(mm)
|
|
Weight
|
About 25KG
|
