Full HD 55'' Vertical Narrow Bezel LCD Video Wall Panel 3840x2160 Resolution
Full HD 55'' Vertical Narrow Bezel LCD Video Wall Panel 3840x2160 Resolution
Features:
frames<=3.8mm only(two frames totally)
| Panel type | Samsung 55” DID LED BLU | |
| Show ratio | 16:09 | |
| Backlight | LED | |
| P | Resolution | 1920×1080 |
| A | Color | 16.7M (8bit) |
| N | Brightness | 500cd/m2 |
| E | Contrast ratio | 4000:1 |
| L | Visual angle | 178°(H) / 178°(V) |
| Response time | ≤6ms | |
| Life expectance | 60000 hours | |
| Physical seam | 1.8mm-(Up-left:1mm;Down-right:0.8mm ) | |
| S-System | PAL/NTSC/SECAM | |
| Function | Menu language | Chinese, English and others |
| Mode of operation | The remote control | |
| VGA | 1 | |
| DVI | 1 | |
| IN/OUT | FHD | 1 |
| Composite-video in | 1(BNC×1) | |
| SIGNAL | Composite-video out | 1(BNC×1) |
| Control signal input | RS232*2(RJ45-8 interface) | |
| Control signal output | RS232*2(RJ45-8 interface) | |
| POWER | Voltage | AC100-240V, 50 / 60HZ |
| Power consumption | ≤220W | |
| Work temperature | 0℃~50℃ | |
| T / H | Storage temperature | -20℃~60℃ |
| Humidness | 20%~80% | |
| INSTALL | Cabinet/Rack | Custom |
| Accessories | Custom | |
| Installation | Cabinet/Wall/Rack/Brick, Embedded, Mobile ect. | |
| Others | Appearance color | Black |
| Casing material | Metal |

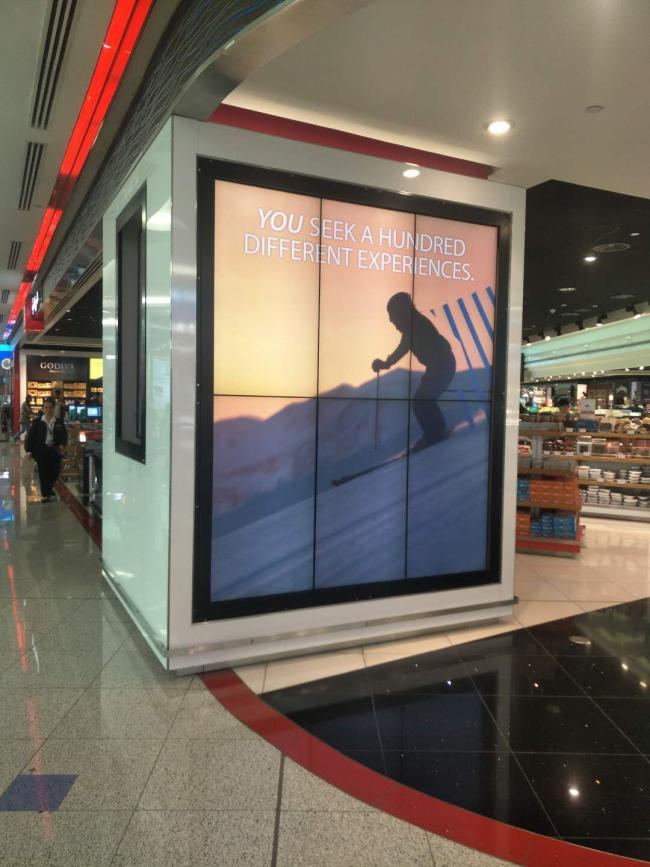

Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economical and practical: High performance and high quality make it cost less.
